PShapeTrace: Linking Drawing Instructions with Visual Outcomes in Processing

Authors Takashi Ishio , Yuta Yamasaki

PDF HTML 5

Files

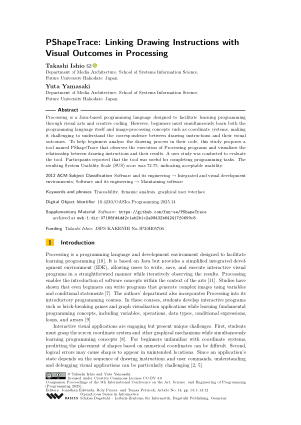

Thumbnail PDF
PDF
OASIcs.Programming.2025.14.pdf
  • Filesize: 1.46 MB
  • 12 pages
HTML5 Logo HTML (experimental)
OASIcs.Programming.2025.14.html

Document Identifiers

Subject Classification

ACM Subject Classification
  • Software and its engineering → Integrated and visual development environments
  • Software and its engineering → Maintaining software
Keywords
  • Traceability
  • dynamic analysis
  • graphical user interface

Metrics

Abstract

Processing is a Java-based programming language designed to facilitate learning programming through visual arts and creative coding. However, beginners must simultaneously learn both the programming language itself and image-processing concepts such as coordinate systems, making it challenging to understand the correspondence between drawing instructions and their visual outcomes. To help beginners analyze the drawing process in their code, this study proposes a tool named PShapeTrace that observes the execution of Processing programs and visualizes the relationship between drawing instructions and their results. A user study was conducted to evaluate the tool. Participants reported that the tool was useful for completing programming tasks. The resulting System Usability Scale (SUS) score was 72.75, indicating acceptable usability.

Cite As Get BibTex

Takashi Ishio and Yuta Yamasaki. PShapeTrace: Linking Drawing Instructions with Visual Outcomes in Processing. In Companion Proceedings of the 9th International Conference on the Art, Science, and Engineering of Programming (Programming 2025). Open Access Series in Informatics (OASIcs), Volume 134, pp. 14:1-14:12, Schloss Dagstuhl – Leibniz-Zentrum für Informatik (2025) https://doi.org/10.4230/OASIcs.Programming.2025.14

Author Details

Takashi Ishio
  • Department of Media Architecture, School of Systems Information Science, Future University Hakodate, Japan
Yuta Yamasaki
  • Department of Media Architecture, School of Systems Information Science, Future University Hakodate, Japan

Funding

  • Ishio, Takashi: JSPS KAKENHI No.JP20H05706.

Supplementary Materials
