On Assessing ML Model Robustness:
A Methodological Framework

Integrating ML techniques into safety-critical systems can promote autonomy and support decision-making processes. However, this increased autonomy may also introduce unpredictability and uncertainty, which could challenge the system’s reliability. Accordingly, to ensure the trustworthiness of ML-based safety-critical systems, it is essential to assess the robustness of ML models before deploying them operationally.

Trustworthiness refers to the probability that a system has certain established properties such as robustness and reliability, with higher trustworthiness indicating a greater likelihood that the system will exhibit those properties [5].

Against this backdrop, the Confiance.ai research program has proposed an end-to-end method aimed at guiding the development of ML-based safety-critical systems, with the aim of bolstering the French industry’s confidence in these technologies. This method encompasses methodological processes and associated tools, covering the entire lifecycle of ML-based systems, from design to operation. It addresses critical aspects of ML model trustworthiness, such as robustness and explainability. This paper specifically focuses on the part of the end-to-end method dedicated to the evaluation of ML model robustness, highlighting the methodological framework developed for this purpose.

Robustness refers to the ability of an AI system to maintain its level of performance under any circumstances (e.g. external interference or harsh environmental conditions) [2]. It has emerged as a key quality characteristic of trustworthy AI. In this context, [3] emphasizes the importance of robustness as a sub-characteristic of reliability in the quality of AI systems. One reason for this emphasis is that robustness allows AI systems to maintain normal operation and avoid unreasonable safety risks throughout their lifecycle, even in the case of misuse and other unfavorable conditions [1].

Given this, it is not surprising that the robustness assessment of ML models has been attracting significant attention, leading to several approaches in this regard. These approaches can be broadly categorized into two main types: 1) formal verification-based approaches and 2) statistical verification-based approaches. In the first category, robustness verification is formulated as a satisfiability problem, where the goal is to identify the smallest set of inputs that satisfy the robustness condition and result in a bound for local robustness (i.e., the model’s ability to maintain its output within specific regions in the input space). Examples of these approaches include stability region verification [9, 7], sensitivity analysis [20], and safety region verification [12, 21, 26].

The second category of approaches relies on statistical verification to assess local robustness. These methods quantify the local robustness of ML models by evaluating the probability of inputs violating or satisfying the robustness condition within the verification region. Such approaches are generally implemented based on input domain sampling, as seen in [8, 13], or within a formal framework (e.g., [23, 25, 6]).

In view of this, existing approaches for ML model robustness assessment tend to address this issue from a purely technical point of view. Consequently, the proposed solutions are tailored to individuals with high technical skills, specifically ML algorithm engineers. Implementing these solutions requires substantial knowledge in ML algorithm engineering and related fields. In contrast, within the Confiance.ai research program, we provide both methodological support (engineering processes/guidelines) and technical support (tools for those guidelines) to assess ML model robustness. Our resulting methodological framework is part of an end-to-end method that covers the entire ML systems engineering lifecycle and aims to guide the development of trustworthy ML systems. Therefore, it is designed to be accessible to various engineering specialists, such as system engineers, ML algorithm engineers, and data engineers.

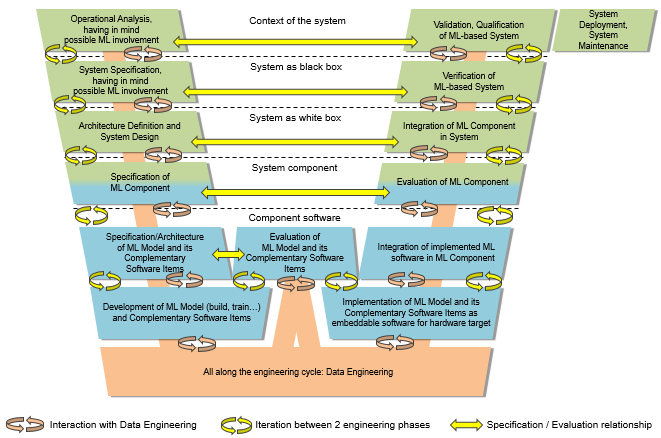

Within the Confiance.ai research program, an end-to-end methodology has been developed by a large and diverse group of experts including industry actors to provide a set of methodological processes/guidelines aimed at assisting in the development of reliable and trustworthy ML-based safety-critical systems. These processes seek to cover the entire lifecycle of ML-based systems (see Figure 1).

Figure 1 outlines the main engineering steps of our methodology, which are defined in line with the ISO/IEC 5338:2023 standard. The latter describes the life cycle of AI systems based on machine learning and heuristic systems. It illustrates the lifecycle of systems engineering that integrates Machine Learning (ML) into the traditional V cycle of system development, creating a customized W cycle for software engineering processes. This W cycle highlights the critical step of evaluating the ML model for reliability at the algorithm level before its implementation at the software level. In this paper, we focus on the engineering activity “Evaluation of ML Model and its Complementary Software Items” in Figure 1.

To evaluate the robustness of ML models, the Confiance.ai research program proposes two engineering/methodological processes. These processes have been captured in Capella models and were developed collaboratively by systems engineers, ML algorithm engineers, and data engineers from various academic and industrial partners of the Confiance.ai research program. The Capella tool was chosen due to its widespread use and familiarity among our multidisciplinary team.

The proposed engineering processes consider two strategies for assessing ML model robustness: 1) robustness testing by sampling and perturbation (also known as empirical robustness) and 2) robustness through formal evaluation (also known as formal robustness). The former involves constructing test datasets with perturbations to evaluate the correctness of a model’s output in response to these perturbed inputs. The latter aims to determine if a model is robust within a specific perturbation range and has made significant progress through formal and statistical verification techniques [22].

Both strategies can be combined to assess the robustness of an ML model. However, it is important to note that the formal robustness strategy may not be feasible for certain types of models due to their complexity or lack of formal specifications. In this sense, the adoption of formal verification to evaluate the robustness of ML models depends on certain constraints such as the acceptability of formal proofs, the compatibility of verification tools with the ML model algorithm, and the dimension of the data space. For this reason, the scope of this paper will focus on the robustness testing by sampling and perturbation strategy.

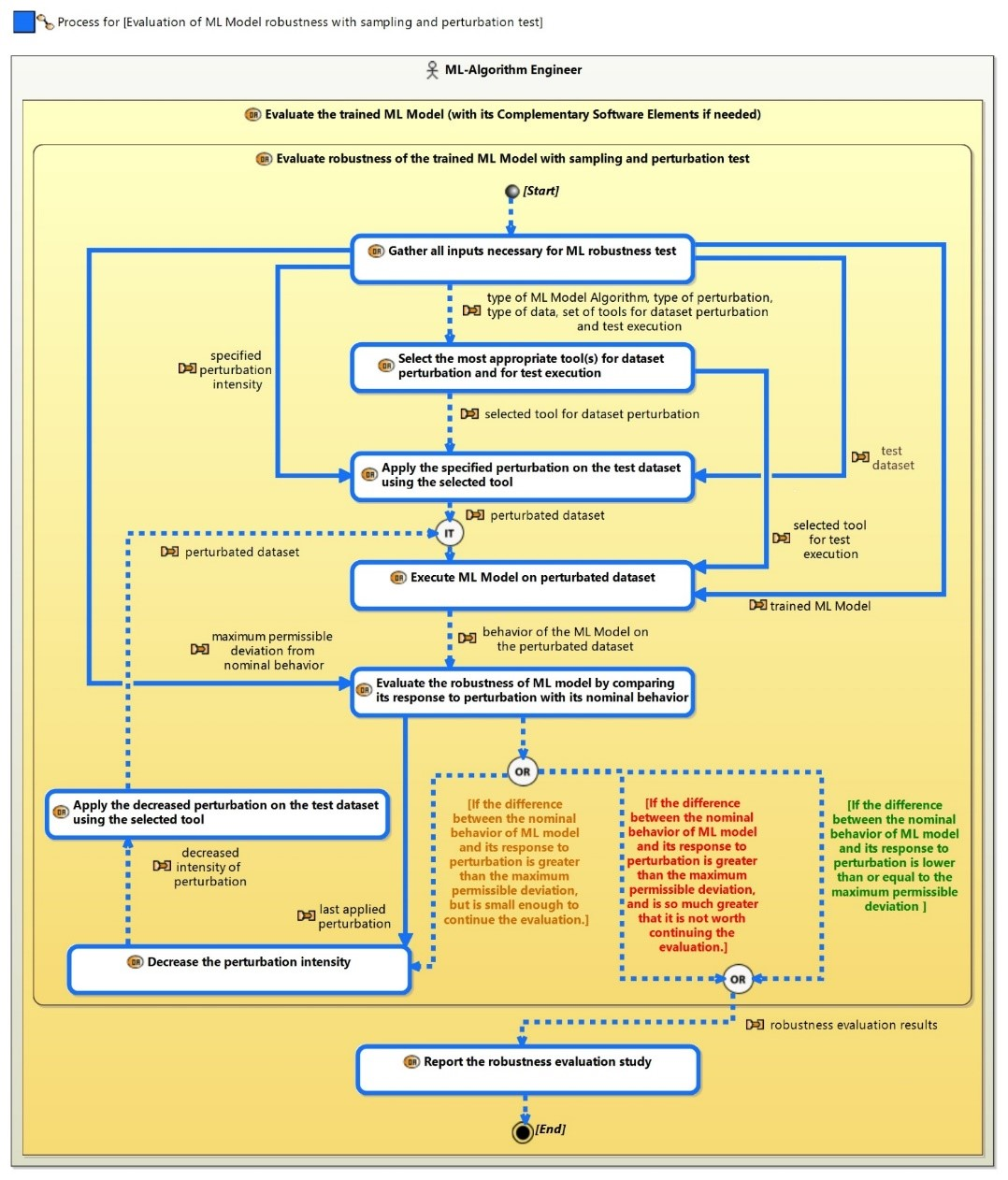

The engineering/methodological process capturing the empirical robustness strategy (i.e., robustness by sampling and perturbation) is presented in Figure 2. A prerequisite of this strategy is that the ML model robustness requirement is expressed as a maximum tolerable deviation of the ML model’s behavior in response to a certain intensity of perturbation in the input data.

As shown in Figure 1, the process of evaluating ML model robustness is conducted by the ML algorithm engineer through sampling and perturbation techniques. The engineering activity, titled “Evaluate the robustness of the trained ML model using sampling and perturbation tests,” is a sub-activity of the broader task “Evaluate the trained ML model (and its complementary software elements, if necessary).” This indicates that robustness evaluation via sampling and perturbation represents one of several strategies for assessing the robustness of a trained ML model.

Referring to Figure 2, the process of evaluating ML model robustness according to the empirical robustness strategy includes the following steps:

• $\mathrm{■}$

  Gather all necessary inputs for the ML model robustness test: This initial activity involves collecting all essential information required for testing the robustness of the ML model such as the problem type (e.g. image classification), the data type (e.g. image), the type of perturbation (e.g. variations in image luminosity).

• $\mathrm{■}$

  The second step involves selecting the most appropriate tool for dataset perturbation and test execution from the Confiance.ai set of tools based on the relevant inputs.

• $\mathrm{■}$

  Using the selected tool, the specified perturbation is applied to the test dataset. The tool then executes the test and measures the ML model’s performance against predefined KPIs. The resulting behavior of the ML Model is thus captured.

• $\mathrm{■}$

  The robustness of the ML Model is evaluated by comparing this perturbed response with its nominal behavior on the non-perturbed Test Dataset. This involves looking for deviations from expected behavior within permissible limits.

• $\mathrm{■}$

  If the difference between the perturbed response of the ML Model and its nominal behavior is lower than or equal to the given maximum permissible threshold, the robustness evaluation study should report that the initial perturbation level given as input has permitted to reach the target level of robustness. This means that the ML Model robustness requirement is satisfied.

• $\mathrm{■}$

  If such difference is slightly greater than the given maximum permissible threshold, the intensity of the perturbation on the test dataset can be decreased until the difference between the nominal behavior of the ML Model and its response to disturbance is smaller than the specified tolerance value. An alternative approach is to continue the robustness evaluation of the ML model until the perturbation level approaches zero, irrespective of the threshold set for the impact. This method provides a more comprehensive analysis of the model’s robustness range.

• $\mathrm{■}$

  If the difference is significantly greater than the maximum permissible deviation, the evaluation study can be reported, as it is not worthwhile to continue the evaluation.

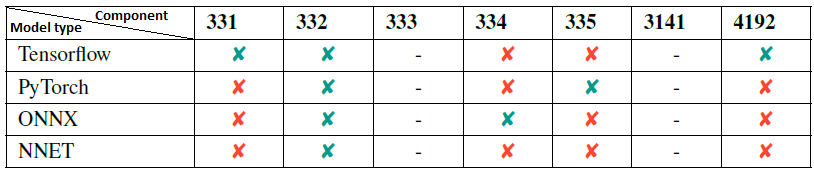

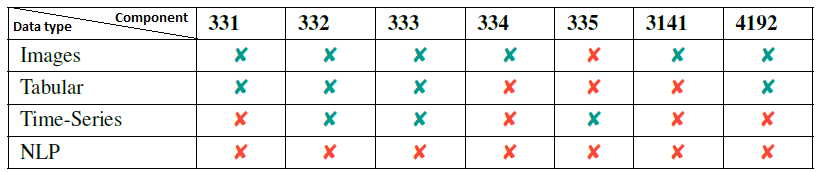

To facilitate the application of the proposed methodological process for evaluating ML model robustness in an industrial setting, the Confiance.ai research program provides a set of supporting tools and components. These components are designed to assess the robustness of trained models against various perturbations. These perturbations can be specific to images, such as Gaussian blur or geometric transformations, and can also include adversarial attacks.
