AI Assessment in Practice: Implementing a Certification Scheme for AI Trustworthiness

Currently, there are significant global efforts to establish regulatory frameworks for AI. The EU has assumed a pioneering position with the AI Act, which is designed to establish a comprehensive regulatory framework for AIS [17]. In a similar vein, the United States issued an executive order in October 2023 with the objective of developing new standards for safe, secure, and trustworthy AI [59].

Standards and guidelines play a pivotal role in supporting binding laws and regulations by documenting best practices and providing a foundation for demonstrating compliance and certification. A considerable number of national and international organisations are engaged in a range of initiatives aimed at fostering trust in AI through the issuance of standards and guidelines. Several ISO/IEC standards [31] are currently being developed to address AI-related aspects, including terminology, performance metrics, data quality, ethics, and human-AI interaction. Some of these standards have already been released, with more anticipated in the future. Similarly, the IEEE is developing a certification program with the objective of assessing the transparency, accountability, bias, and privacy of AI-related processes [26]. The IEEE P7000 series [28] addresses the ethical implications of AI technologies. The European standard development organizations (CEN/CENELEC) have been tasked to develop the standards that will be used to assess conformity with the EU AI Act. As part of this process, they will identify and adopt international standards already developed or under development [10]. Other national entities, such as the National Laboratory of Metrology and Testing’s (LNE) AI certification program, have established objective criteria for trustworthy AIS, emphasising ethics, safety, transparency, and privacy [35]. The NIST framework [40] offers guidance on the management of risks, the assurance of data quality, and the promotion of transparency and accountability in AIS, with related principles also emphasised in the AI Risk Management Framework [41]. Moreover, DIN/DKE offers comprehensive standardisation recommendations across all AI domains, facilitating a unified language, principles for development and utilisation, and certification [15]. In the field of aviation, the European Union Aviation Safety Agency (EASA) has introduced comprehensive guidelines for the safe utilisation of ML systems [58]. These guidelines provide support to stakeholders in the aviation sector at each stage of the lifecycle of AIS, from the initial stages of development through to operational use. The Fraunhofer Institute has developed a guideline for the design of trustworthy AI systems [47]. The guideline employs a six-dimensional evaluation framework to assess the trustworthiness of AIS, encompassing fairness, autonomy and control, transparency, reliability, safety and security, and privacy. In contrast to other contributions, the Fraunhofer guideline incorporates both process-related measures and technical methods to enhance the evaluation of AIS.

Capturing, tracing, documenting, and systematically evaluating requirements throughout the lifecycle of an AIS is an essential factor in trustworthy AI and its certification.

There are various methods and tools for the filtering and management of requirements, from very basic text files or Excel sheets to dedicated frameworks such as Confluence, Jira, Doorstop, Polarion, IBM Doors, Azure DevOps, and many more [4, 3, 7, 56, 48, 39]. In practice, the simple solutions do not provide the necessary flexibility and overview of the complicated relations between requirements. On the other hand, comprehensive requirement management frameworks are flexible but often less intuitive in their use and relatively expensive. After investigating several tools, we chose Jira (in its basic version, free) as a requirement management tool [3] for the certification of AIS. Jira is a project management and issue-tracking software developed by Atlassian. It helps teams plan, track, and manage work efficiently, offering features like customisable workflows, real-time reporting, and integration with numerous other tools, making it a versatile solution for agile project management.

An important operational approach to scaling is the integration of Machine Learning Operations (MLOps). The role of MLOps principles and best practices in AIS development and operation, as well as its assessment, is twofold: First, Billeter et al.[6] and others [36] have advanced the idea of MLOps as an enabler of trustworthy AI by design. This means that following MLOps guidelines and principles during design, development and operation of an AIS, will lead to increased trustworthiness of the AIS. These practices include version control, continuous integration and deployment (CI/CD), automated testing, and monitoring. Second, the assessment of the trustworthiness of AIS also requires comprehensive evaluations of many objectives and means of compliance (MOC) derived from these requirements. Therefore, concepts like following best practices in AI engineering and MLOps are indispensable not just during AIS development but also during its assessment.

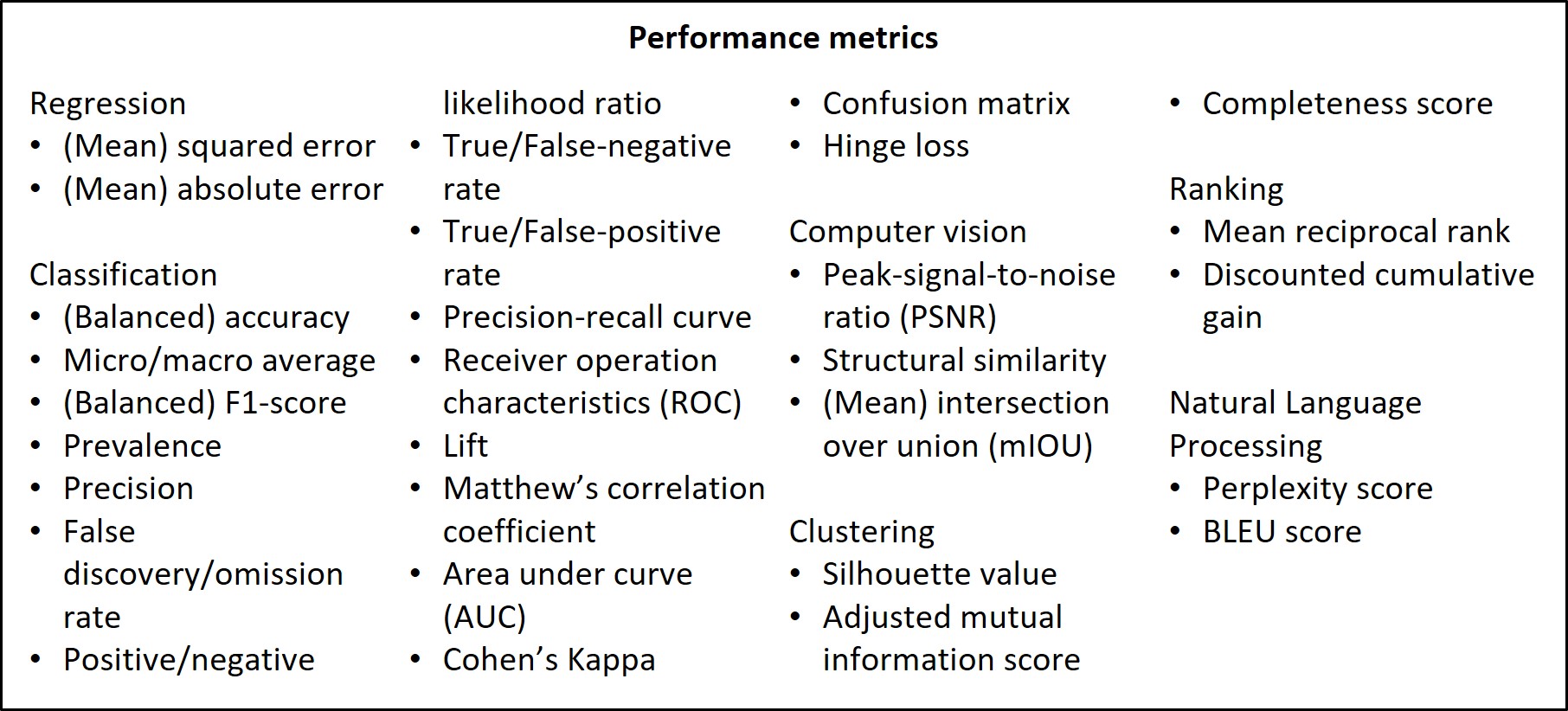

While in some aspects of the verification of AI trustworthiness it is necessary to rely on qualitative results, in particular for model explainability or robustness, automated evaluation workflows mostly involve algorithmic methods with quantifiable output. Therefore, it is crucial to integrate assessment toolboxes which implement various algorithms and metrics, or rely on interfaces which allow for manual qualitative evaluation. There are a number of comprehensive toolboxes which implement appropriate technical methods paired with metrics, often isolated to assess specific aspects of AI trustworthiness such as transparency, reliability, or safety. For data and model explainability, industry-developed frameworks include Microsoft’s InterpretML [38], Seldon’s Alibi toolbox [54], IBM’s AIX360 toolbox [61], Sicara’s tf-explain [55], or PyTorch’s captum API [9]. Additionally, Quantus [25] is a relatively new and complementary explainability toolbox which implements a growing number of metrics and provides interfaces for other toolboxes such as captum or tf-explain. Toolboxes for testing the reliability, robustness, and safety of an AI model are, e.g., MIT’s Responsible AI Toolbox [57], Seldon’s Alibi-Detect [63], IBM’s ART [60] and UQ360 [62] toolboxes. In particular, there are many more toolboxes which implement specific tests for adversarial robustness, such as RobustnessGym [23], CleverHans [46], or Foolbox [49].

It is worth noticing that these toolboxes have been developed in parallel and, to a large extent, disconnected from the regulatory and certification frameworks. Hence, their suitability for compliance assessment is not entirely clear. Our analysis presents a significant step towards the integration of advances on both areas.

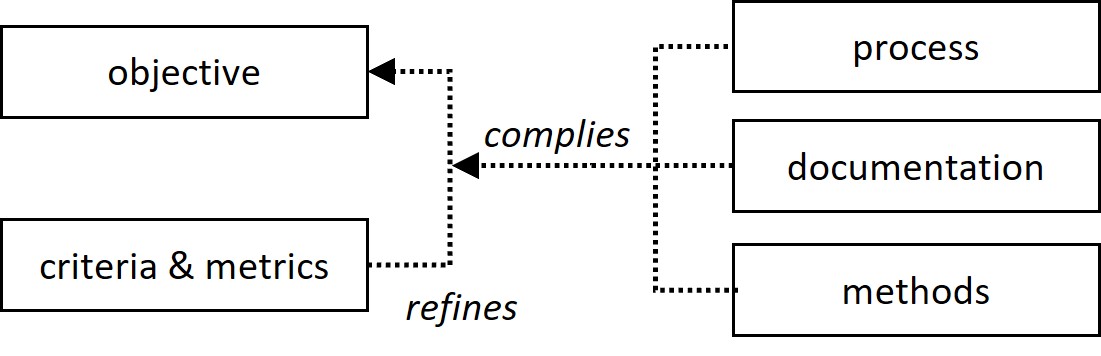

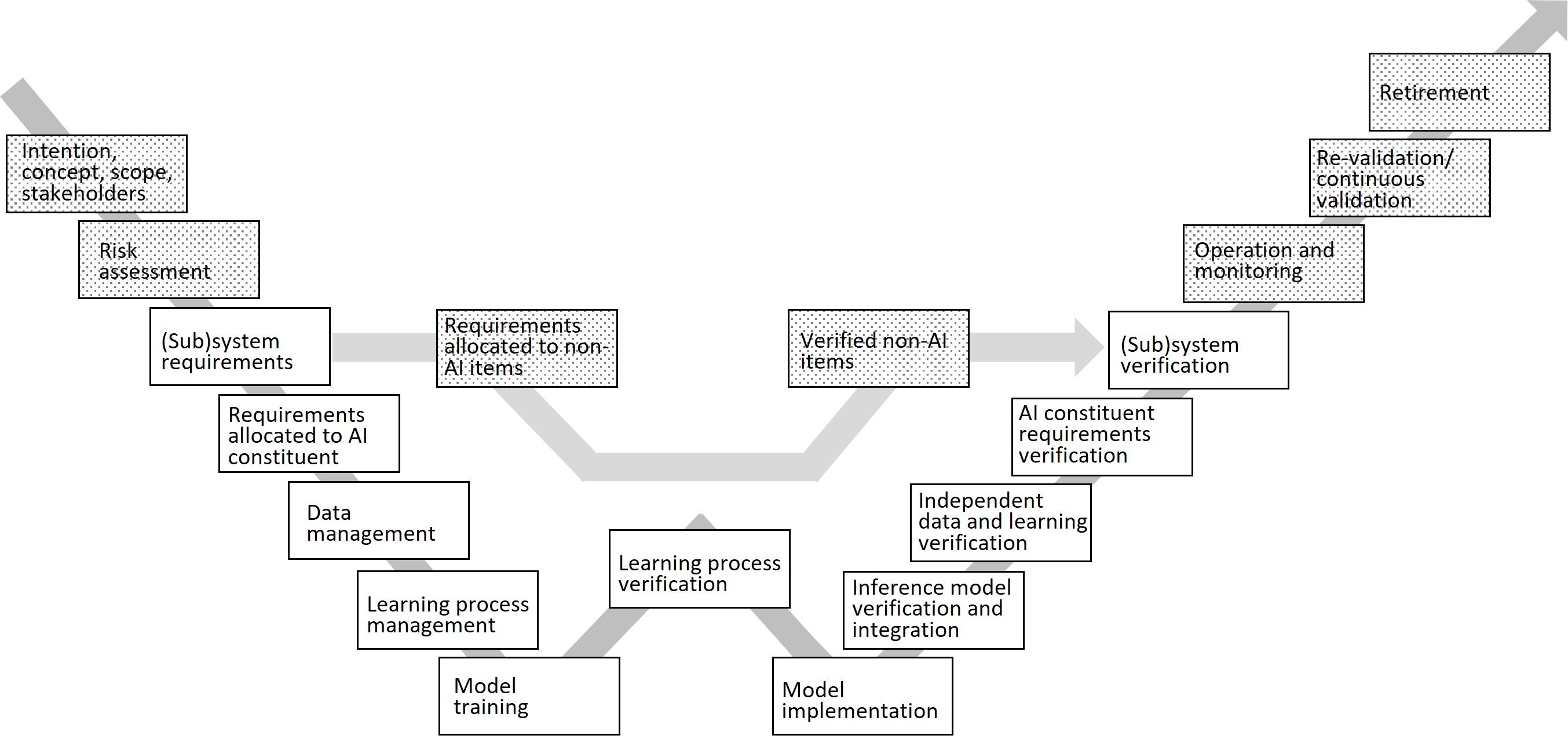

For each phase of the lifecycle, the scheme identifies and addresses the critical key aspects through the establishment of corresponding objectives. In collaboration with the certification body CertX [11], we conducted a targeted analysis of 38 key documents to establish a robust foundation for the certification. These documents, selected in light of the fact that many regulations are still forthcoming and that numerous standards remain under development and are not yet active, were chosen based on their relevance to existing regulations, technical standards, and guidance materials essential for ensuring trustworthiness of AIS. The selection encompassed recognised standard bodies and authoritative guidelines, such as those from the ISO/IEC Joint Technical Committee on Artificial Intelligence (ISO/IEC JTC 1/SC 42) [31], the IEEE Autonomous and Intelligent Systems (AIS) Standards [27] and EASA [58], as well as EU legislative requirements and the Artificial Intelligence Standardization Roadmap developed by DIN and DKE [15], among other sources. The objectives are refined according to different qualitative criteria and quantitative metrics (see Figure 3). Different MOCs have been defined to achieve compliance with the aforementioned objectives. One group of MOCs describes the process means that must be in place for a thorough development, verification, or management process. Others describe the documentation means to cover, for example, auditability and other record-keeping aspects. The last group of MOCs define the technical methods that must be applied to achieve compliance with the objectives posed. These MOCs establish the link to the different technical methods of the second technical part of the certification scheme.

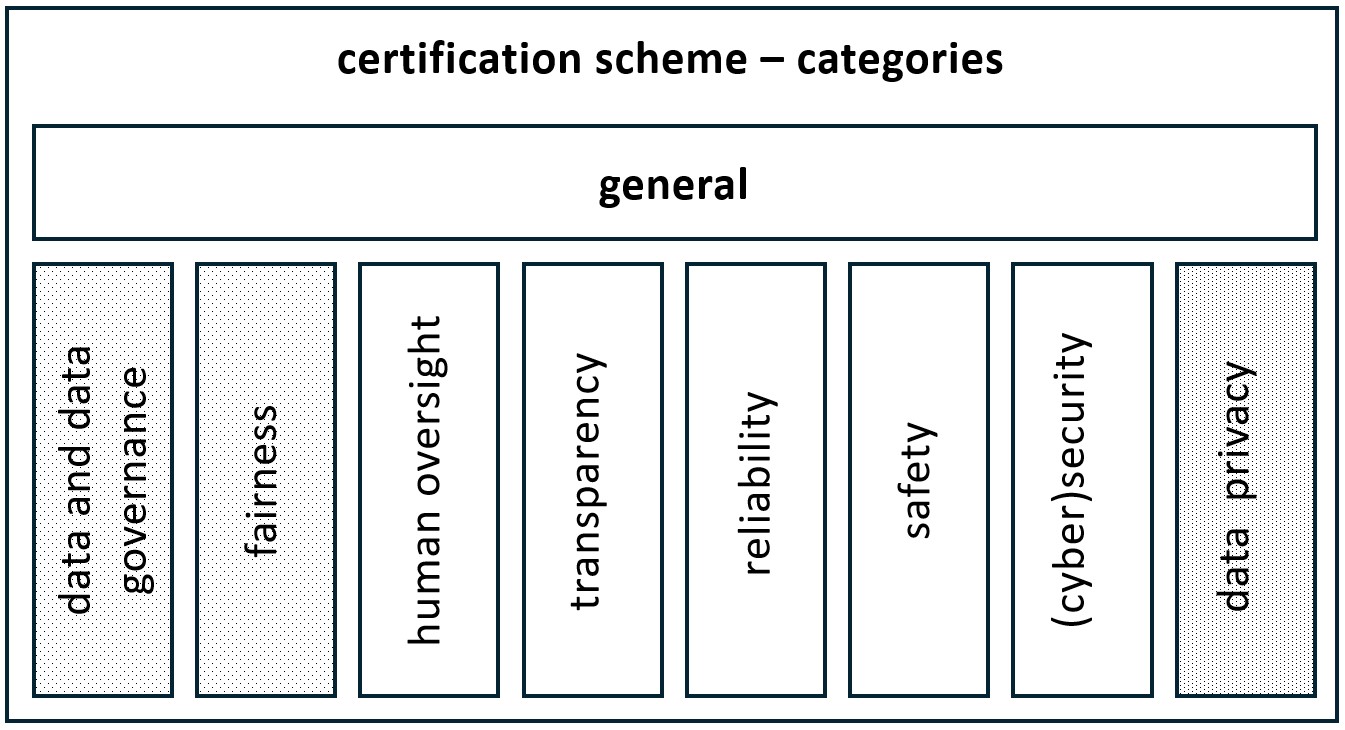

Initially, the certification scheme focused on transparency and reliability, encompassing 29 and 44 objectives, respectively, with 100 and 156 MOCs. An updated version of the scheme additionally includes human oversight, safety and security alongside some general objectives relevant across multiple key aspects. Currently, the scheme covers:

• $\mathrm{■}$

  General Objectives: 5 objectives, 14 MOCs

• $\mathrm{■}$

  Human Oversight: 62 objectives, 65 MOCs

• $\mathrm{■}$

  Transparency: 29 objectives, 53 MOCs

• $\mathrm{■}$

  Reliability: 36 objectives, 105 MOCs

• $\mathrm{■}$

  Safety: 2 objectives, 6 MOCs

• $\mathrm{■}$

  (Cyber)Security: 5 objectives, 17 MOCs

The scheme includes a risk analysis and also addresses overlapping areas across key aspects, ensuring a comprehensive and integrated approach. Additional key aspects, such as data and data governance, will be implemented in the next step, and the key aspects of fairness and data privacy are planned for subsequent steps. In the following, we present two example objectives and their corresponding MOCs.

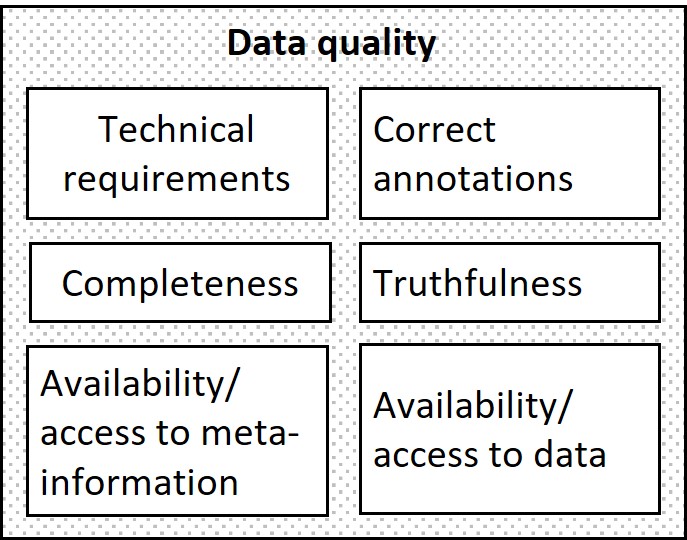

This section provides an overview of the key aspects covered by the scheme, including data governance, human oversight, transparency, reliability, and safety and (cyber)security.

As written in section 2.2, Jira was chosen as requirement management tool to ensure traceability and effective management of the requirements. AI certification frameworks must adhere to internationally recognised standards, including ISO 9001 (Quality Management Systems), ISO/IEC 27001 (Information Security Management Systems), and the ISO/IEC 23894 (AI - Guidance on Risk Management). Such standards necessitate meticulous documentation, traceability, and periodic auditing to guarantee sustained compliance. The implementation of such requirements in a manual or disparate system would increase the risk of inconsistencies and errors, which would ultimately impact the efficiency and credibility of the certification process. It is therefore imperative that robust requirements management tools are employed.

Using Jira for requirement management ensures each objective and MOC is meticulously organised, facilitating clear communication and comprehensive oversight. Its ability to maintain detailed records and provide real-time updates is crucial for this task. Real-time collaboration and review capabilities are critical in aligning project tasks and reducing errors. The platform supports multi-user editing, allowing teams to work simultaneously from different locations. This live collaboration and features, such as decision tracking and impact analysis, ensure that the development of the certification scheme remains agile and responsive to changes. Additionally, the system’s version control and history management provide a complete audit trail, which is crucial for maintaining consistency and verifiability.

Centralised management of objectives and MOCs in a digital environment allows for streamlined workflows and task alignment. We developed customised templates and dashboards for managing and tracing requirements. The possibility of sorting issues by attributes such as the tag COMPLETE was proven to facilitate requirement tracking in the evaluation we made of the platform. Each objective and MOC can be linked to others, showing relationships such as blocking issues and dependencies. The system’s adaptability through the reusability of issues across different projects and its capacity for baseline creation significantly enhance the efficiency of the certification process. The platform facilitates organised and efficient project management by enabling tasks such as editing, organising decision-making, and managing tasks through a user-friendly interface. Integration with state-of-the-art tools, such as Git integration platforms like GitHub or GitLab, as well as business communication tools like Teams and Slack, along with the capability to create customisable pages, allows the tool to be precisely tailored to specific project needs.

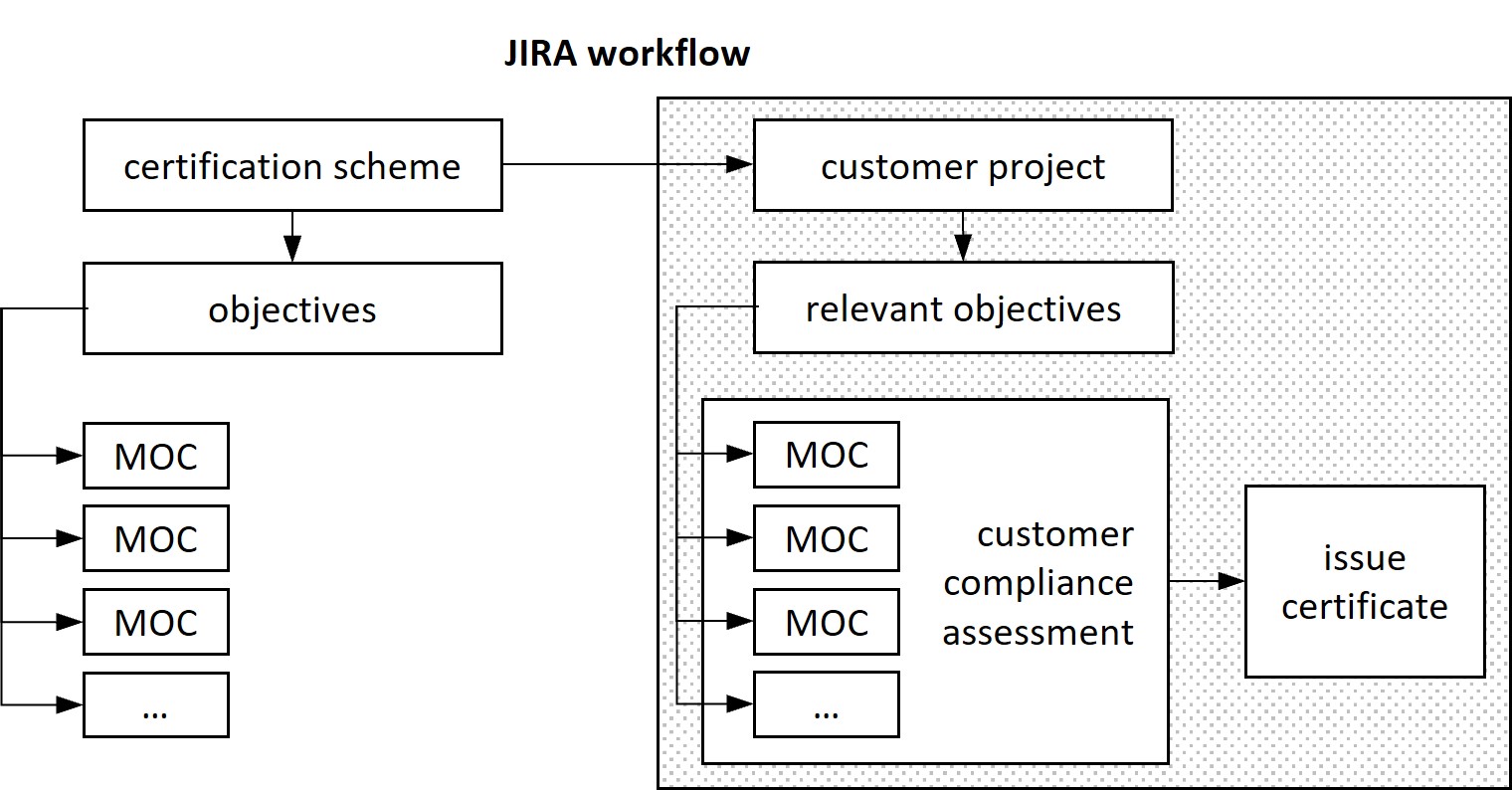

The certification scheme is structured with a parent-child relationship between objectives and MOCs (Figure 8). Each issue type is defined by attributes, including description, main category, additional categories, lifecycle phase, risk level, references, and approval status, ensuring thorough documentation and easy information retrieval via specific filtering. This structured approach facilitates organisational efficiency and enables the certification process to be adapted as required.

For practical use, the certification scheme we developed has been implemented as a base project; which can be readily exported, adapted, re-imported, or cloned to align with the particular requirements of the customer or AI system to be assessed. For certification bodies working with clients, the base project serves as the foundation from which the customer’s certification project is derived. The customer’s AIS is then assessed against the MOCs from the base scheme, supporting the issuance of the final certification.

As argued in section 2.2. MLOps serves as an enabler for trustworthy AI by design. It provides the necessary infrastructure and practices, ensuring that AIS are developed, deployed, and maintained reliably and efficiently. The adoption of MLOps thus facilitates the integration of trustworthy AI principles at every stage of the AI lifecycle, which are critical for regulatory compliance and societal acceptance [6]. MLOps extends DevOps practices to manage the complexities of bringing AIS into production, ensuring that they continuously meet trustworthiness standards [33].

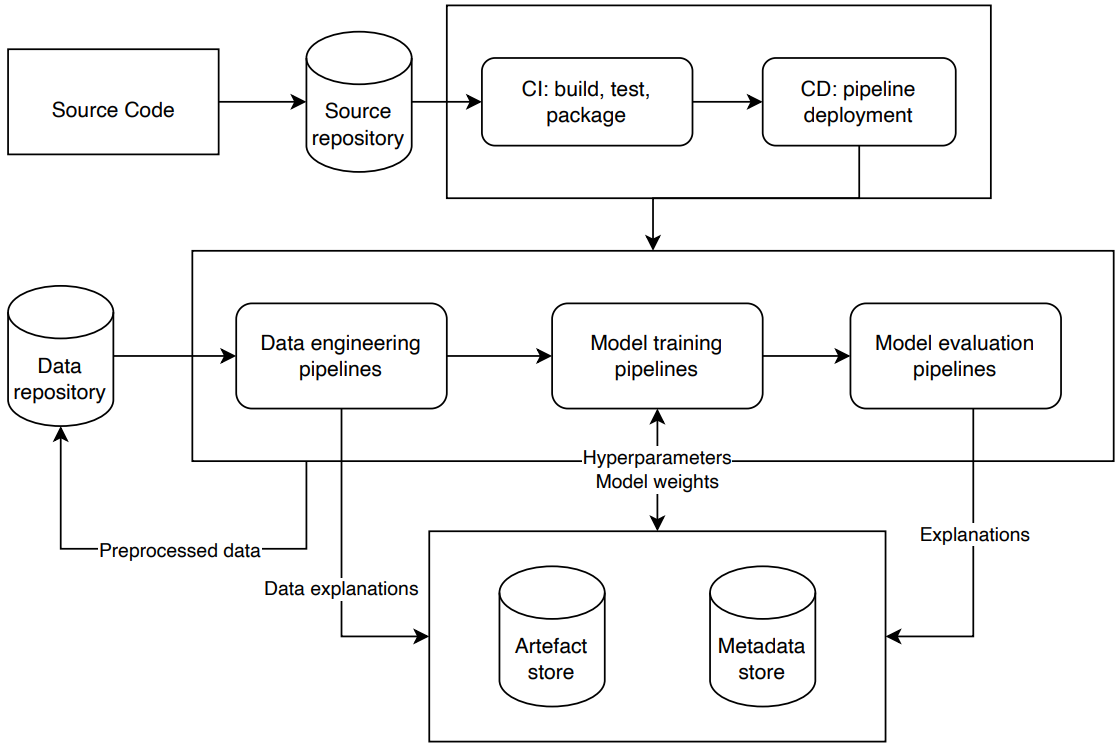

The general architecture an AIS which adheres to MLOps principles supports the entire lifecycle of AIS and ensures that models are reproducible, reliable, and maintainable. This architecture includes project setup and requirements engineering, data engineering, model development, continuous integration/continuous deployment (CI/CD), and monitoring and maintenance. The requirement management system described in Section 4.1 will be part of the project setup and requirements engineering phase.

Complementing the requirements management, we implemented a full software pipeline for implementation, training and validation of AI models. This pipeline could be used (a) by AI developers for continuously tracking compliance with the certification requirements, or (b) by certifiers to perform systematic tests of their clients AI models. It thus demonstrates the benefits of MLOps best practices in terms of trustworthiness by design, implemented in the AIS development, as well as in terms of facilitating an efficient means of compliance tracking and verification as part of a certification.

In our pipeline, models are developed, trained and versioned using Git (through GitHub [21]) and MLflow [34], which document all changes to the models’ code and parameters, respectively. MLflow also provides the tooling for tracking experiments, packaging code, and managing model deployment. The model development process involves experimentation with different algorithms and hyperparameters to optimise performance. GitHub Actions [22] and Apache Airflow [2] are used for workflow scheduling and monitoring and facilitate automated testing and deployment processes in CI/CD pipelines. Data is versioned using Oxen [45]. A schematic of the system is shown in Figure 9. The system listens for modifications to the model source code or input dataset. Changes automatically trigger training and model evaluation pipelines, which execute tests based on the methods described in sections 3.2.3, 3.2.4, and 3.2.5. For the certification scheme, we mainly relied on methods from captum, Alibi, AIX360, ART, and UQ360, as well as original implementations from academic papers. The outputs, model parameters and similar artefacts, are stored and versioned. Additionally, data engineering pipelines are run, which prepare the data for training and evaluation, and perform data-related trustworthiness evaluations.

MLOps provides several benefits to both AIS development and certification. Traceability and documentation are maintained throughout the AI lifecycle, providing a clear audit trail and ensuring that all objectives and means of compliance are systematically recorded. Version control is critical to maintaining the integrity of AI models and datasets, allowing teams to revert to previous versions if necessary and ensuring that all changes are documented and traceable. Automation and testing are streamlined through CI/CD pipelines, ensuring that each change is rigorously tested for compliance with trustworthiness standards before deployment. Post-deployment, continuous monitoring of AIS ensures that they remain compliant and perform reliably in real-world conditions.

Our workflow and methods have been tested in two real-world computer vision use cases in medical applications and vehicle detection on construction sites [14]. These use cases correspond to distinct high-risk applications according to the EU AI act. These use cases provide a test bed for validating the tools for certification on different data types and sets of requirements.
