EAM Diagrams - A Framework to Systematically Describe AI Systems for Effective AI Risk Assessment

First, a clear definition of the object of consideration is needed. Artificial Intelligence and its subfield, Machine Learning, lack universally accepted definitions in the literature. Recently, the European Union published the EU AI Act [4], setting the rules for developing and operating AI systems within the European Union and potentially having worldwide effects [18]. Due to the significance of the EU AI Act to the AI landscape worldwide, we adhere to the definition provided in the regulation: AI systems are defined as “machine-based systems that are designed to operate with varying levels of autonomy and that may exhibit adaptiveness after deployment, and that, for explicit or implicit objectives, infer from the input they receive how to generate outputs such as predictions, content, recommendations, or decisions that can influence physical or virtual environments” [4].

Based on this definition, we make two important remarks: First, AI systems are software systems that might be integrated into larger systems potentially consisting of other components, including hardware and sensors. In the following, we refer to anything outside the boundaries of the AI system as its environment. Second, AI systems themselves can be composed of several ML models that are connected in a way to solve a particular objective.

For instance, the perception module of an autonomous vehicle might be an AI system that contains several AI models, such as a computer vision-based pedestrian detector, and a detector to detect danger zones in the environment. Additionally, this AI system might include non-AI-based components, such as the deterministic fusion of several sensors, which relies on conventional software and does not fall under the scope of AI.

The framework for describing the architecture and context of AI systems proposed in Section 4 is designed for AI systems built upon Machine Learning techniques, representing the majority of today’s deployed AI systems. The framework might be generalized to other technologies in the scope of AI, but since this is not the focus of this work we postpone such an analysis to future work.

To understand the term risk assessment, it is essential to consider the broader concept of risk management, independent of the technology. ISO 31000 defines risk management as “coordinated activities to direct and control an organization with regard to risk” [7]. Within this framework, risk assessment is a part of risk management that involves “a structured process that identifies how objectives may be affected, and analyses the risk in term of consequences and their probabilities before deciding on whether further treatment is required.” [6].

IEC 31010, specifically, provides a variety of methods for practical risk assessment applications [6]. The choice of an appropriate method depends on several factors, including the type, domain, complexity, and available resources for developing and operating the system under assessment. For instance, failure mode and effect analysis (FMEA) is a method that systematically analyzes potential failures of a system and is considered best practice in safety-relevant applications. Notably, FMEA is also part of the end-to-end framework for algorithmic auditing introduced in [14].

Generally, all methods mentioned in [6] rely on some form of system description as input for risk assessment. What these methods have in common is the requirement for a systematic description of the object under assessment.

The significant importance of a structured AI system description is highlighted in the literature on AI assessments and auditing [3, 13, 21]. For example, the AI assessment catalog [13] provides a high-level description of the AI system under assessment, although it primarily focuses on analyzing relevant dimensions of trustworthiness in AI systems rather than on the AI system description itself.

Several established methods systematically describe and document parts of AI systems, such as datasheets for datasets [5] and model cards [11], which document relevant aspects of the data and the model itself. While these works focus on specific elements of AI systems, they do not address the holistic representation of AI systems. However, some works are moving in this direction. For instance, [16] introduce AI Fact Sheets, which address a whole system/service perspective but do not focus on the particular requirements from a risk assessment perspective.

Another important source of related work involves system descriptions not specifically for AI systems but for complex software systems in general. Many of these approaches build upon standardized notations for describing complex software systems, such as UML (Unified Modeling Language) [1] and its evolution, SysML [12]. The integrated system nature is particularly well reflected by the C4 model introduced by Simon Brown [2], which also builds upon the UML notation.

The C4 model introduces diagrams showing different levels of detail, enabling the assessor to understand the broader picture while also allowing detailed inspection where needed. First, the system context diagram depicts the high-level perspective on the system and the environment it interacts with. Then, the container diagram shows the main functional blocks of the system and their interconnections. Third, the component diagram provides abstractions of components within individual containers that should map to real abstractions in the codebase. Finally, the code diagram illustrates relations at the code level, such as relations between implemented methods and functions.

Since the C4 model is designed for software systems in general, it does not account for the specifics introduced by AI systems. The framework we present in this paper is inspired by the structure of the C4 model but is adapted to appropriately reflect AI-specific properties in the context of AI systems.

AI systems are utilized in a broad spectrum of applications, each with its unique characteristics and requirements. Therefore, a framework to describe AI systems must be sufficiently flexible to reflect this diversity. A one-size-fits-all template for describing AI systems is impractical, as noted by [16], highlighting the challenge of creating a universally applicable template due to the varying needs of different stakeholders.

However, with focusing on risk assessments and the specific needs of the persons preparing and executing them, it is essential that the AI system description can be tailored to the specific context and requirements of the assessment process. A flexible yet standardized format ensures that the AI system description is applicable to various AI systems, enabling assessors to adapt it to the specific needs of the system being evaluated.

Moreover, this flexibility must not compromise the consistency and comparability of the AI system descriptions. By allowing tailored AI system descriptions within a standardized framework, assessors can achieve a balance between adaptability and the uniformity needed for efficient and effective risk assessment.

A core feature of an AI system description is reproducibility. An AI system description created by several persons or by the same person several times should be approximately identical to guarantee reproducibility and to enable reproducibility on a risk assessment level. Providing strict and clear guidelines on how to create the specific AI System description is crucial. Reproducibility in AI System descriptions also enhances the efficiency of risk assessors. Variations in AI System descriptions increase the time assessors need to understand the system. Standardized AI System descriptions allow them to quickly grasp the system’s details, especially when multiple systems are assessed by the same individual, thereby reducing the time needed for comprehension.

The goals of a risk assessment process are to identify risk sources, estimate their impact and likelihood, evaluate their significance, and propose mitigation measures. The AI system description must enable the allocation of risk sources to relevant parts of the system.

For instance, 24 AI-specific risk sources that might cause harm have been identified in [17]. Furthermore, it was found that some risk sources manifest at the system level, while others manifest in particular system components such as datasets or the AI models themselves.

Additionally, information about the environment is crucial to estimate and evaluate the severity and probability of certain risks. The AI system description should recognize these factors. For instance, the presence of platform edge doors at railway stations drastically decreases the risk of people being harmed by trains, and are therefore important context information when performing a risk assessment for autonomous trains.

Moreover, the part of a system where the risk source manifests and where a mitigation measure is applied might differ. To enable systematic risk management, the AI system description must cover all these factors comprehensively.

While AI technology introduces many new aspects and risks to consider in risk assessments, the approach to assess these risks should adhere as closely as possible to established procedures. Assessors are already familiar with state-of-the-art methodologies, and unnecessary changes would require additional resources to train new assessors.

Therefore, concepts for describing AI systems should not contradict established procedures. Wherever possible, standardized methods that have proven to be effective, such as using UML or SysML, should be incorporated into the new solution. Additionally, best practices from AI documentation, such as datasheets for datasets [5] or model cards [11], should be recognized.

When describing an AI system, it is important to address the aspects ML solutions introduce in comparison to conventional software. It has been intensively discussed in the literature that the use of ML techniques introduces a new set of risks [17, 19, 23]. These ML-specific characteristics include the opaqueness, unpredictability, and complexity of such systems. It is crucial that the framework for describing AI systems reflects AI-specific characteristics to effectively enable AI risk assessment. Another main difference between ML-based solutions and traditional software is how ML models are developed [20]. Especially, the dependence on data sources for the development of ML models is a unique characteristic that must be included in the AI system description. These AI-specific aspects are essential for a comprehensive and accurate risk assessment.

The use case considers a driverless vehicle that operates in an open world and perceives its surroundings via camera input. The person detection system within this vehicle is the AI system under assessment. It aims to detect persons in danger zones, e.g., an area in front of the vehicle and sends respective control sequences to the vehicle’s control system to initialize countermeasures in case of danger.

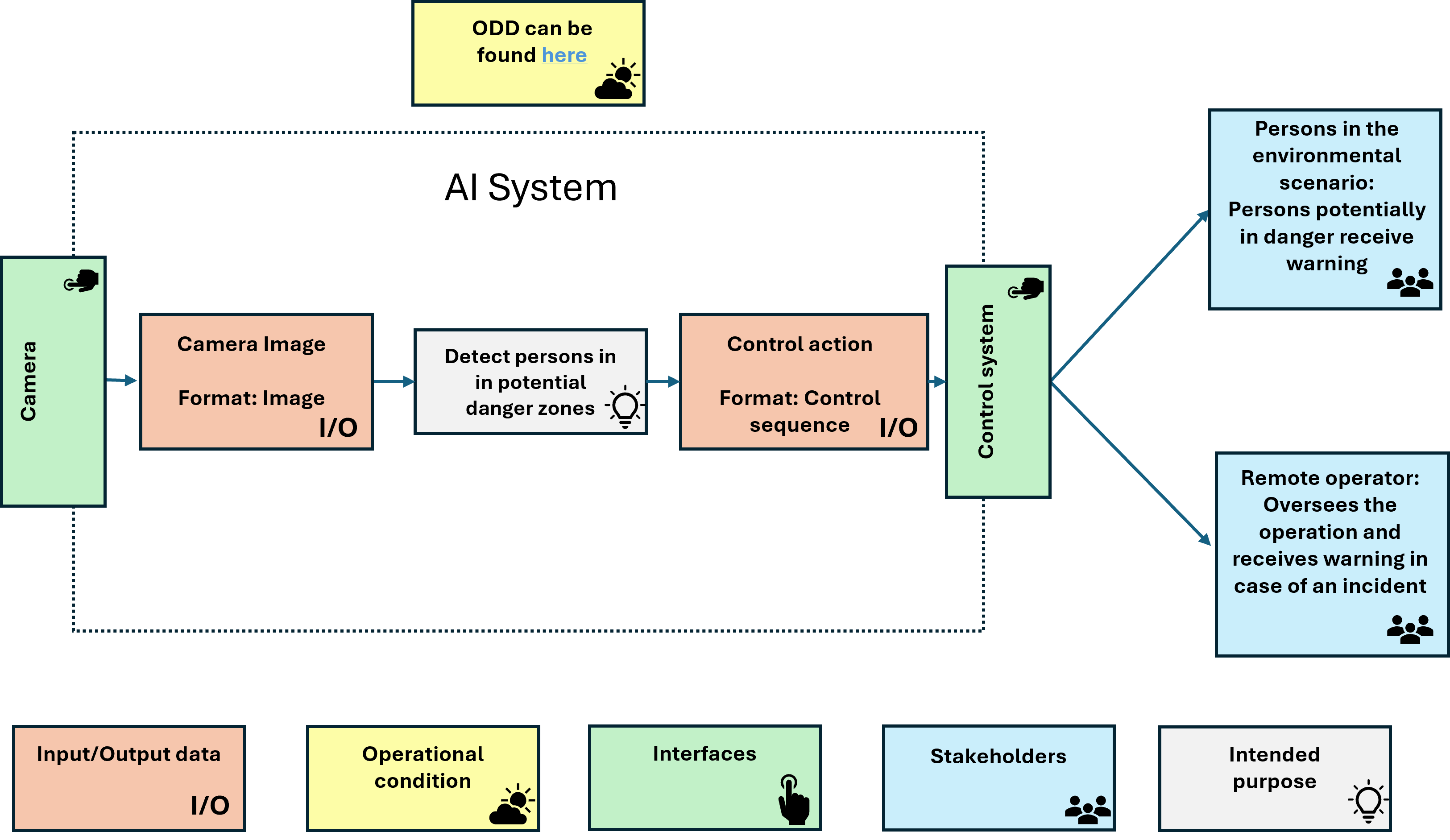

As with any risk assessment process, the first step involves setting the context of the assessment and therefore, the system under consideration [7]. Setting the context for an AI system involves concretely specifying the operating conditions and the system’s interfaces to its environment. These aspects form the elements of the Environment Diagram, as depicted in Figure 2 for the running example of a driverless vehicle. In the following, we describe each element, why it is relevant for the risk assessment, and how the right information is included in the diagram.

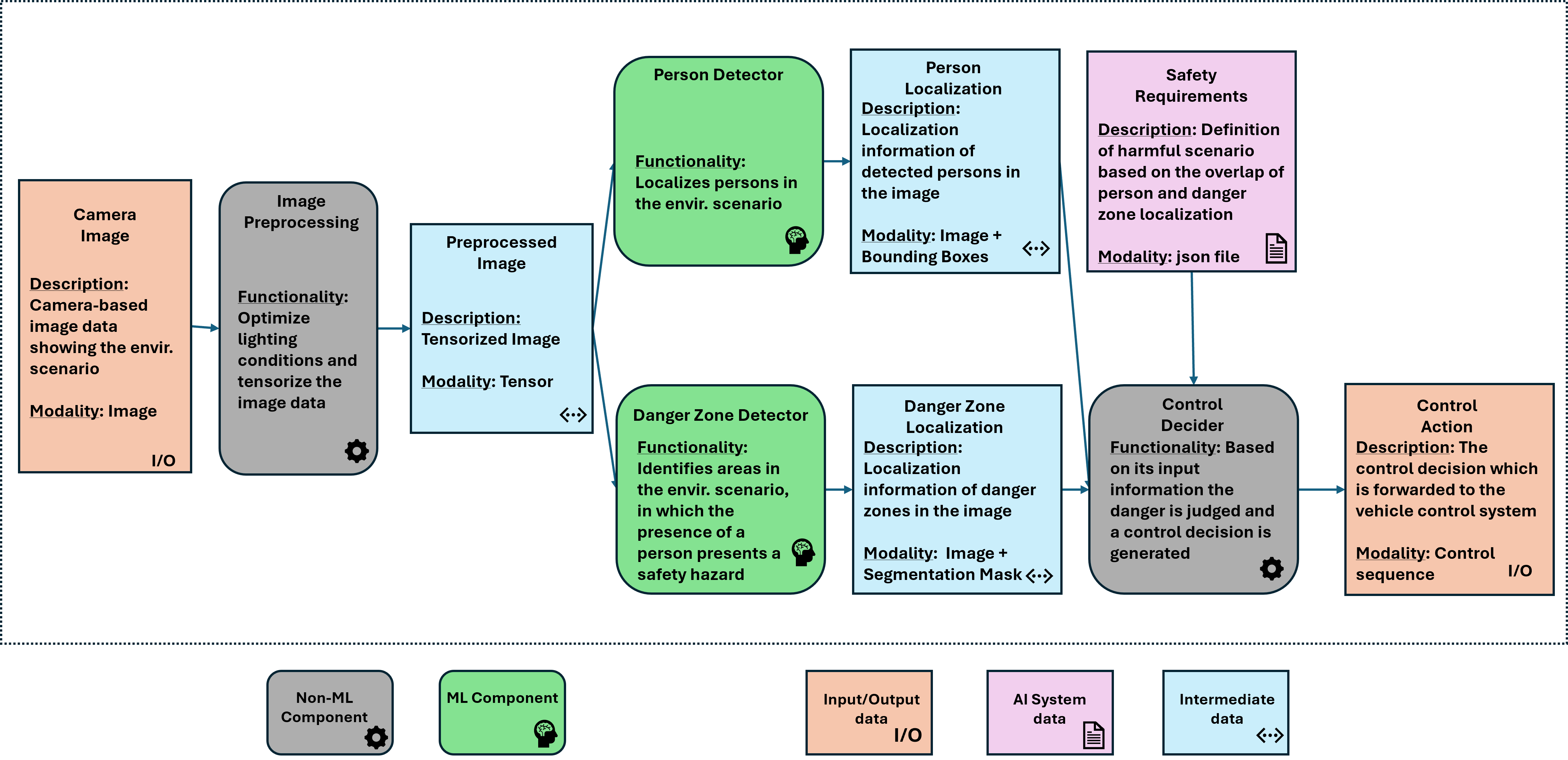

The purpose of the Architecture Diagram is to describe the inner workings of the AI system. This data flow diagram illustrates the flow of data from input to output, covering all data transformations that occur during the operation of the AI system. It is important to note that the Architecture Diagram does not include the training of the ML models; it only represents the system in its operational state. We introduce two different groups of elements: data elements representing the data itself and component elements representing components that perform data transformations of any type. Together with the data flow (represented as arrows), they form the Architecture Diagram. An application of the Architecture Diagram to the driverless vehicle use case is presented in Figure 3.

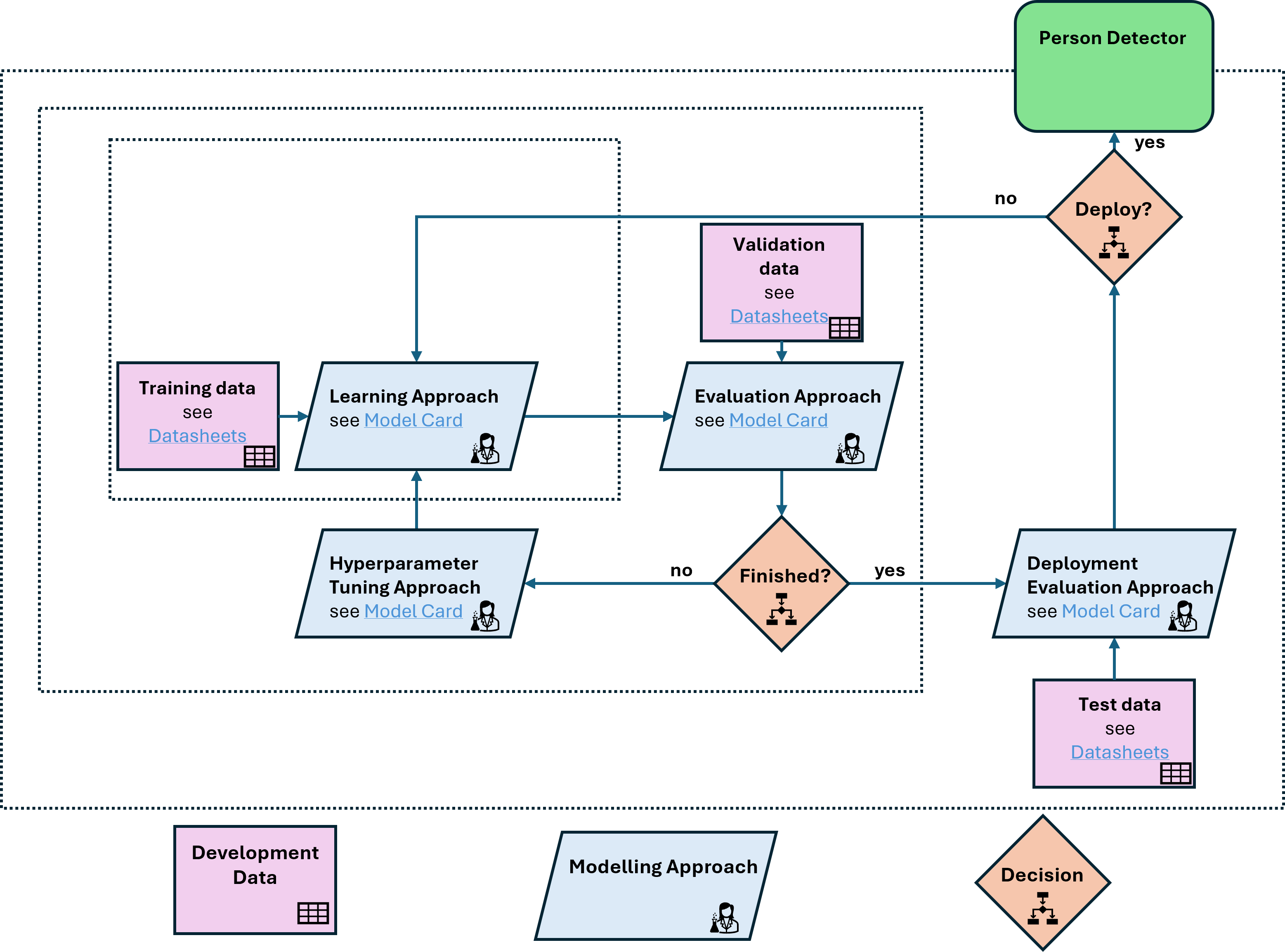

One main distinguishing factor between conventional software and ML models is the way they are developed. Conventional software relies on fixed rules specified by the developer for inference, whereas the rules in ML models’ are obtained by a learning process using datasets. While ML approaches can solve tasks that conventional software cannot, the mentioned learning process introduces new risks. To address these risks, it is important to understand how the learning process was executed. The ML Modeling Diagram depicts the most important aspects of developing ML models. Figure 4 shows the Modeling Diagram applied to the driverless vehicle use case.

In the following, we detail the relevant elements to create the Modeling Diagram. Note, that arrows in the Modeling Diagram depicts the sequential order in which steps are performed during modeling.

In the following we perform a comparative analysis by considering the most related approaches identified in literature. These are the C4 model [2], which introduces also a multi-level diagram concept, and AI Fact Sheets [16]. Although AI Fact Sheets do not introduce a diagram concept, they still introduce a methodology to document various aspects of AI systems, which we consider valid for comparison. An overview of the comparative requirement analysis between the approaches is provided in Table 1.

The EAM Diagrams provide a framework for systematically gathering all relevant information for the risk assessment of AI systems in a diagram format. While the EAM Diagrams claim to be applicable to a wide range of AI systems, they might not be universally applicable to every AI system.

This is due to an implicit assumption about AI systems that was necessary for the structured representation of EAM diagrams. We assumed that the AI life cycle can be strictly divided into development and operation. AI systems that continuously learn after deployment may not be adequately represented by EAM Diagrams. A potential solution would be to integrate a fourth level for such systems depicting the continuous learning plan for such systems. However, since this was not the focus of this research we leave this aspect for future work.

Additionally, the approach assumes that the information required for constructing the AI system diagram is always available. This might not always be the case. When ML models developed or already deployed by third parties are integrated into the AI system, not all necessary information for creating a complete EAM Diagram may be accessible. For instance, if an AI system integrates a deployed version of a foundation model, such as GPT-4 or BART, the integrator might not have access to the information of the training setup or the datasets used in the development process. Notably, this issue is a general problem for all kinds of AI documentation.
