Evaluation of the Parallel Features of Rust for Space Systems

The num_traits[3] crate is used to help with definitions of common numerical behaviour in Rust programs. While external to the standard library, it enjoys widespread adoption, and many external numeric types implement the crate’s traits.

The num_traits crate offers many useful traits; here we describe the ones we used in defining our own traits:

• $\mathrm{■}$

  NumRef: Encompasses basic numeric operations like addition, subtraction, multiplication, and division, both for a type and its reference.

• $\mathrm{■}$

  NumAssignRef: Adds assignment-based operations to NumRef (e.g. +=, *=).

• $\mathrm{■}$

  AsPrimitive<f64>: Allows casting to f64,serving as a superset of all types to be implemented.

• $\mathrm{■}$

  PrimInt: Contains common operations on integer types.

• $\mathrm{■}$

  Float: Contains common operations on floating point types.

While the traits discussed are useful to define common behaviour, not all the operations that someone might want to do on a number are covered by the num_traits crate. The crate funty [1] was inspiration for some of the missing traits, in particular for its Fundamental one, that enforces basic behaviour such as Copy, Display and Debug.

Until now we described behaviour that we could anticipate we would need even before writing a single benchmark function, also because they are bundled in existing traits. The additional behaviour we describe from here on was mostly added while developing some specific benchmark. The typical process would be: 1. Do some operation you know you can do on a numeric type, 2. Have the compiler complain that it is not possible for the given bounds, 3. Add a new bound to the existing trait. This can be somewhat frustrating, especially when this is not straight forward, as in some of the cases we will describe later.

The ability to obtain a Number from an iterator of T: Number and &T: Number also needs to be specified as a trait bound. At this point two missing behaviours still remain:

• $\mathrm{■}$

  Obtain a Number from a sum operation on an iterator of elements of type T where T: Number or &T: Number. This is done with the following trait bounds:
  std::iter::Sum<Self>
  for<’a> std::iter::Sum<&’a Self>.

• $\mathrm{■}$

  Serialize: A way to serialize the numbers to their bytes representation and back; fundamental numeric types all have this behaviour available but it is not behind a trait, as such we need to implement the trait to call the method defined in the standard library. Since the method name is the same for all types, we can achieve this through a macro rule (Listing 4).

• $\mathrm{■}$

  RngRange: A way to generate numbers in a given range. In this case a trait does exist (SampleUniform from the rand crate), with some complications for the f16 type.

The Number trait is designed to work with all the types supported by the benchmarks. However not all benchmarks support all the different types: as an example the Softmax benchmark only works on floating point types. Another situation that sometimes happens is that the implementation is very different amongst different types. To allow for this, two more specific traits are defined, to differentiate between integer and floating point types. Listing 5 shows how this was easily achieved thanks to the num_traits crate.

The easiest way to parallelize the code, is to iterate over the result matrix, and spawn a thread for each row to do the computation. This would look something like the code in Listing 10. The advantages of this approach is the readability and simplicity of the code, which becomes even more evident when comparing it with the one in Listing 8; aside from the thread scope and calling the spawn() method, the code is identical to the sequential version.

We did not comment the chunks_exact_mut() method in the sequential version, because the reason for it being there is the design of the row calculation function, which is suited to parallel code. In the matrix multiplication example in Listing 7, the function modifies the result by receiving mutable slices of its rows, rather than through a mutable reference to the whole result matrix. This is not strictly necessary in the sequential version, as the calls do not overlap with each other. However it is crucial in the parallel versions, because each thread needs a mutable reference to part of the matrix simultaneously: chunks_exact_mut() does exactly this while making sure that there is no overlap amongst the different chunks, which makes sure that to avoid any data race between threads.

The disadvantage of the solution presented is that the number of threads spawned is not constant, rather it grows with the size of the matrix, which significantly degrades the performance of this solution if the number of rows is large.

To improve on this, what we need to do is spawn a proper number of threads, which is usually equal to the number of cores, or hardware threads, available on the platform, and assign multiple rows to each thread. This makes the code only slightly more complicated than the previous case, but improves significantly the performance. As shown in Listing 11, each thread has an internal loop (chunk.chunks_exact_mut(result.cols), so that it can call the row function on each row of the chunk. The use of the method chunks_mut instead of the exact version in the outside loop, allows us to run the code regardless of the number of rows of the matrix, as it does not need to be a multiple of the number of threads.

The softmax benchmark, as mentioned before, has a slightly different design than the one presented with the matrix multiplication case. This is because, before we can calculate the element of the final matrix, we need to now the sum of the exponentials of the whole matrix. For this reason the code has two parallel sections, with a synchronization in the middle so that the sum is available to the second parallel section. As shown in Listing 12, this only requires us to have two threads scopes rather than one, so that the threads are joined and the sum is calculated before the start of the second scope.

While the code presented is long, especially when compared to the rayon version as we will see, if we consider only the code specific to the benchmark, without the part to spin the threads presented in the previous section, which is the same in all benchmarks, we can see that the code is indeed very straight forward.

Rayon is a great tool for dealing with the kind of problems we are working on. This becomes evident when comparing the rayon code with the sequential code, for example for the matrix multiplication function (Listing 13), which we included in its sequential version in Listing 8.

The only modification necessary to the code is using Rayon’s parallel version of the chunks_exact_mut() method from standard library.

The softmax benchmark presented when discussing the standard library versions, is a good example both to show the compactness that Rayon can achieve compared to the standard library code, and to showcase some case where the parallel code is not just adding a par_ in front of the standard library iterator. The Rayon version of the code is available in Listing 14. The second loop is the same as in the sequential version, while the first needs to use the reduce() method for calculating the sum. The syntax of reduce is the typical functional syntax of the method, and allows for the reduction operation itself to be performed in parallel as well, which will not be a major consideration on our target platforms, since they will have relatively few cores (4-8), but could be relevant if we had a very large number of threads. It should be noted that the order in which the reductions will happen is not specified, which means the result could be not exactly the same due to the non-associativity of floating point operations [8], which is why we should use a tolerance when validating the results.

Just like in the sequential case, the parallel versions of the benchmarks are defined inside traits. The parallel traits are defined inside two modules: rayon_traits for the Rayon versions and parallel_traits for the standard library versions. In this case the traits only require one member, that being the function to be benchmarked, and the naming scheme used is the following: The traits have the same name as their sequential counter-part, preceded by Rayon or Parallel depending on the version. The method defined inside the trait has the same name as the sequential version preceded by rayon_ or parallel_ depending on the version. An example of parallel traits for the rectified linear unit benchmark is shown in Listing 15.

The benchmark_utils module defined in the crate deals with some useful code for the benchmarks. Amongst its functionalities, it deals with defining some types based on arguments passed at compile time, in particular a Number type that is going to be the content of the matrices, and a type Matrix, which is the specific matrix implementation to be used. This is done using #[cfg(feature = ...)] directives, that work similarly to #ifdef directives in C.

Listing 16 shows the code needed to define the correct type for the Number alias. In order to pass the flag using cargo, all it takes is to pass to cargo the flag --features ‘‘feature_name’’, and cargo will then pass the flag to rustc. There is no way yet [5] to have mutually exclusive features, however, if more than one datatype is set we will get a compile error for trying to set a type alias already defined. With the last cfg command, if no type is specified at compilation, we default to f32.

The NVIDIA Jetson AGX Xavier [4] is an embedded platform from NVIDIA which has 8 CPU cores as well as a GPU. The board has different power-modes (Table 1), that affect both the CPU and GPU. In particular we used power-mode 1 and power-mode 2, which maximises the multicore performance of the platform which keeps the board consumption under 15W which has been identified a thermal limit of on-board processing platforms in the GPU4S ESA-funded project [14]. The selected power modes have respectively 2 and 4 CPU cores active and they are same used in similar multicore performance evaluations [17]. The version of the platform we are using has 32 GB of LPDDR4 shared between the CPU and GPU.

The software on the platform is based on Linux Kernel version: 4.9.140 / L4T 32.3.1, Ubuntu version: Ubuntu 18.04 LTS aarch64 and GCC version: 7.5.0 (Ubuntu/Linaro 7.5.0-3ubuntu1 18.04).

The AMD Ryzen V1605B is part of the Ryzen Embedded V1000 family, which offers high performance platforms with a CPU and a Vega GPU in an SoC.

The V1605B has 4 cores, each with 2 hardware threads each, however in our case we did not see improvements by using 8 threads, so we report our results using 4 threads.

The software used on the platform is: Linux kernel: 5.4.0-42-generic, Ubuntu version: Ubuntu 18.04.5 LTS x86_64, GCC version: 7.5.0 (Ubuntu 7.5.0-3ubuntu1 18.04).

As mentioned in the previous section, the two different parallel implementations of the Rust code can have quite different performance depending on the benchmark.

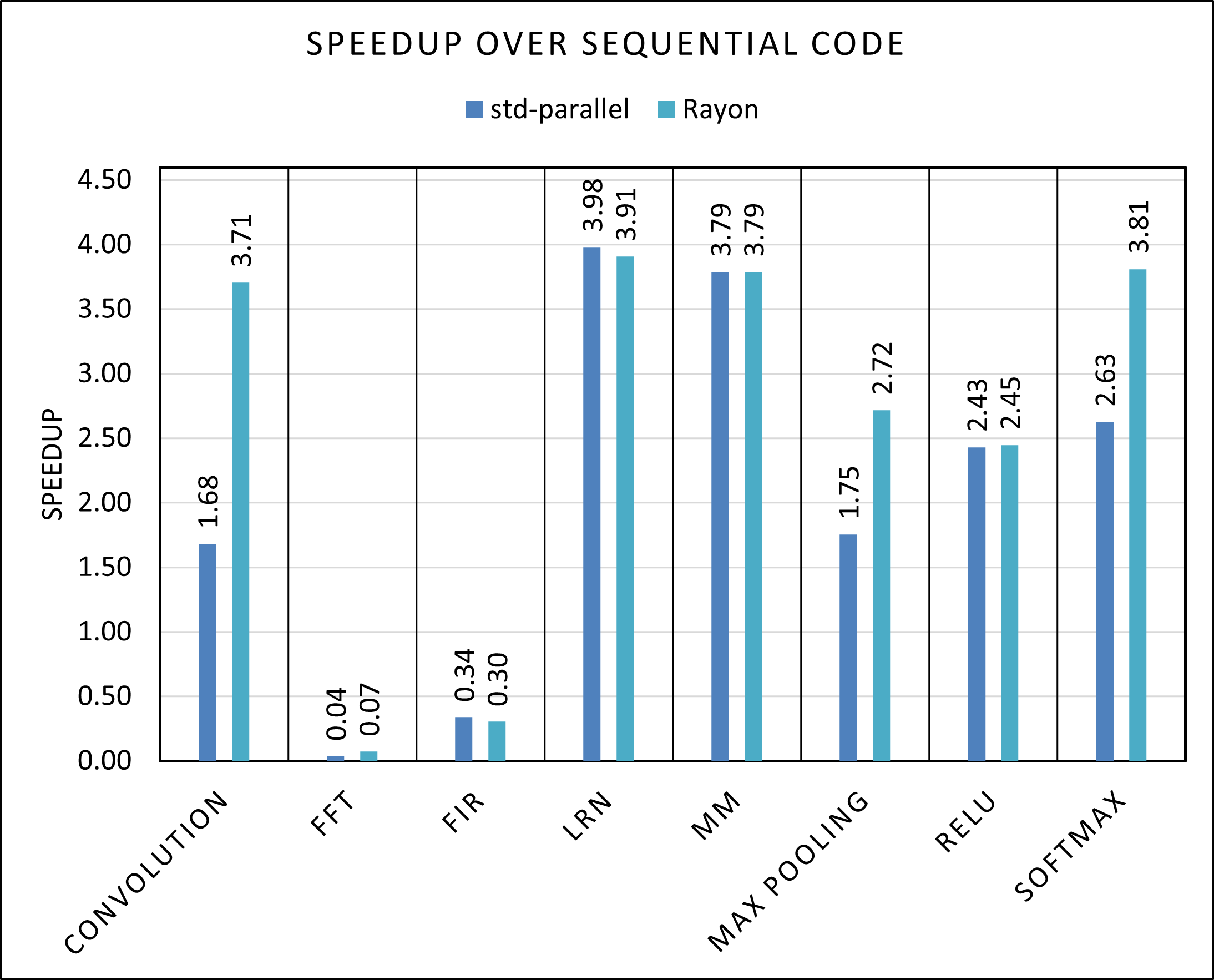

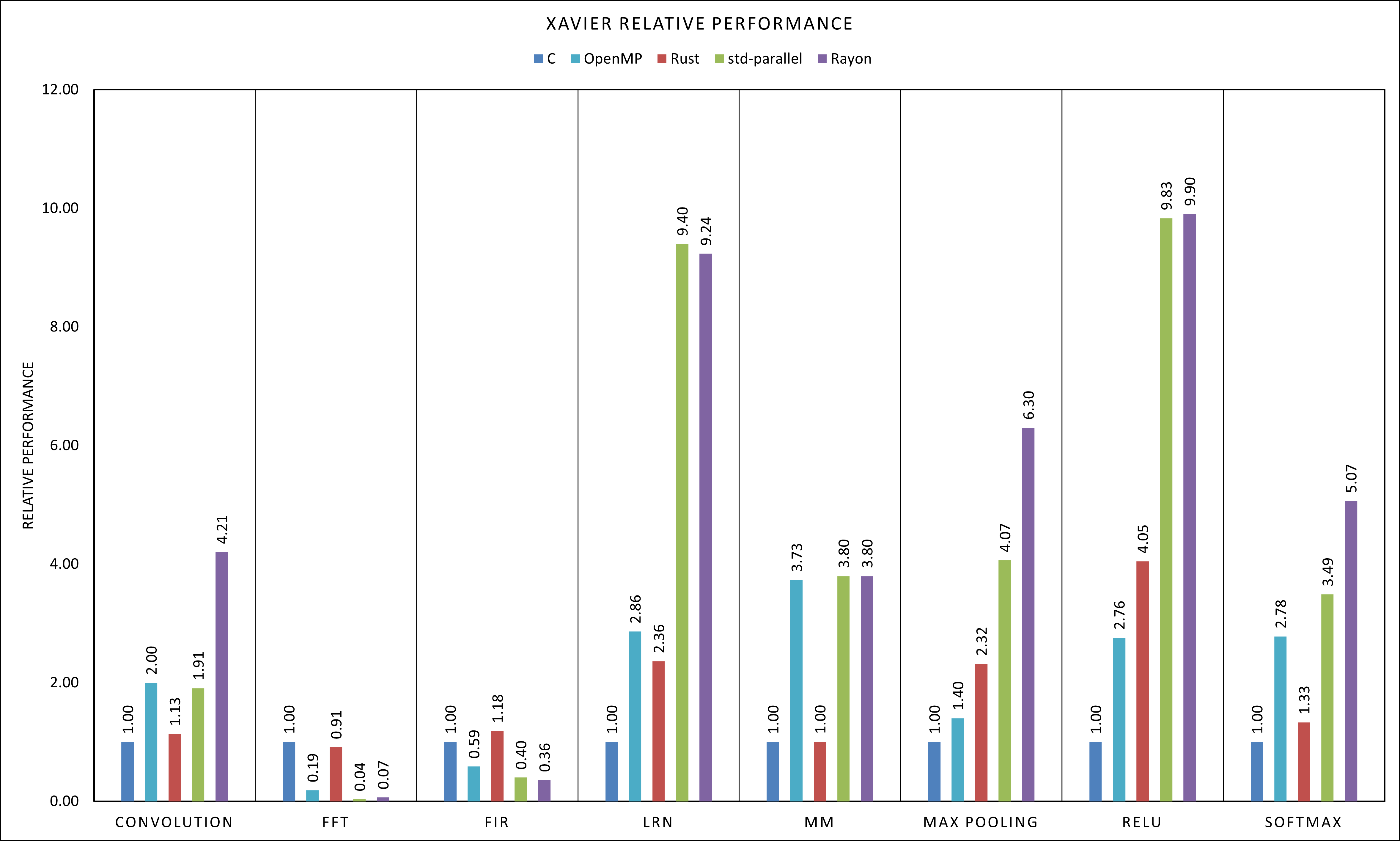

In Figure 3 we see the speedup over the sequential code of the rayon and std-parallel implementations, which seems to favor significantly Rayon, in particular where the vector instructions made the sequential code faster. Our guess to the cause of this behaviour, is that Rayon does a better job keeping the vector operations, as the library can decide, knowing the hardware features available, if it makes sense to make something parallel and to which thread assign each part of the matrix, while in the std-parallel the programmer takes this decision, which can result in suboptimal performance. This is true in particular in the Convolution and Softmax benchmarks, where the std-parallel code has similar performance to the OpenMP one, even though the Rust sequential version is faster. In LRN and Relu this is not the case, with both the std-parallel and Rayon version showing very impressive speed-ups compared to the sequential C version.

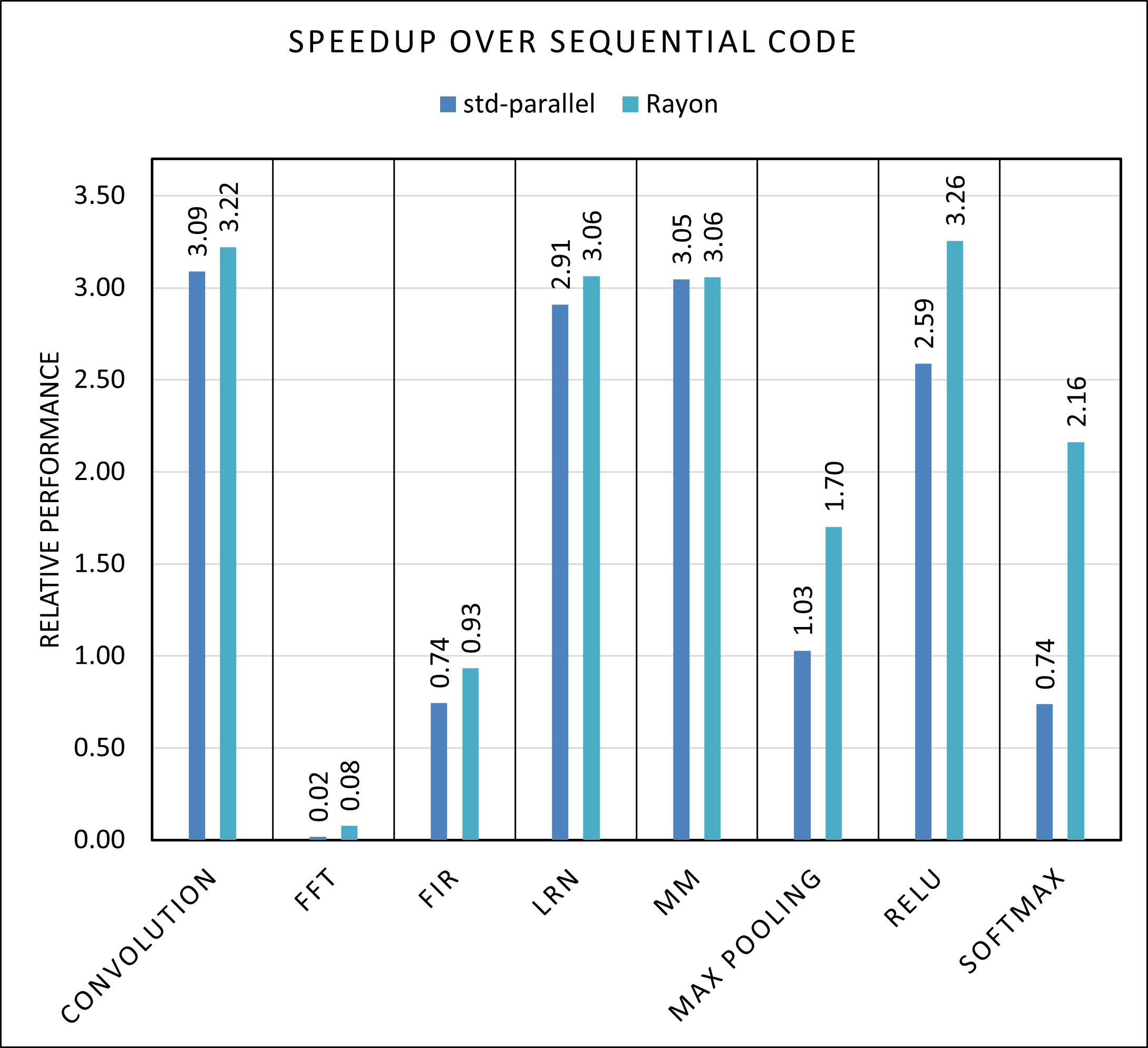

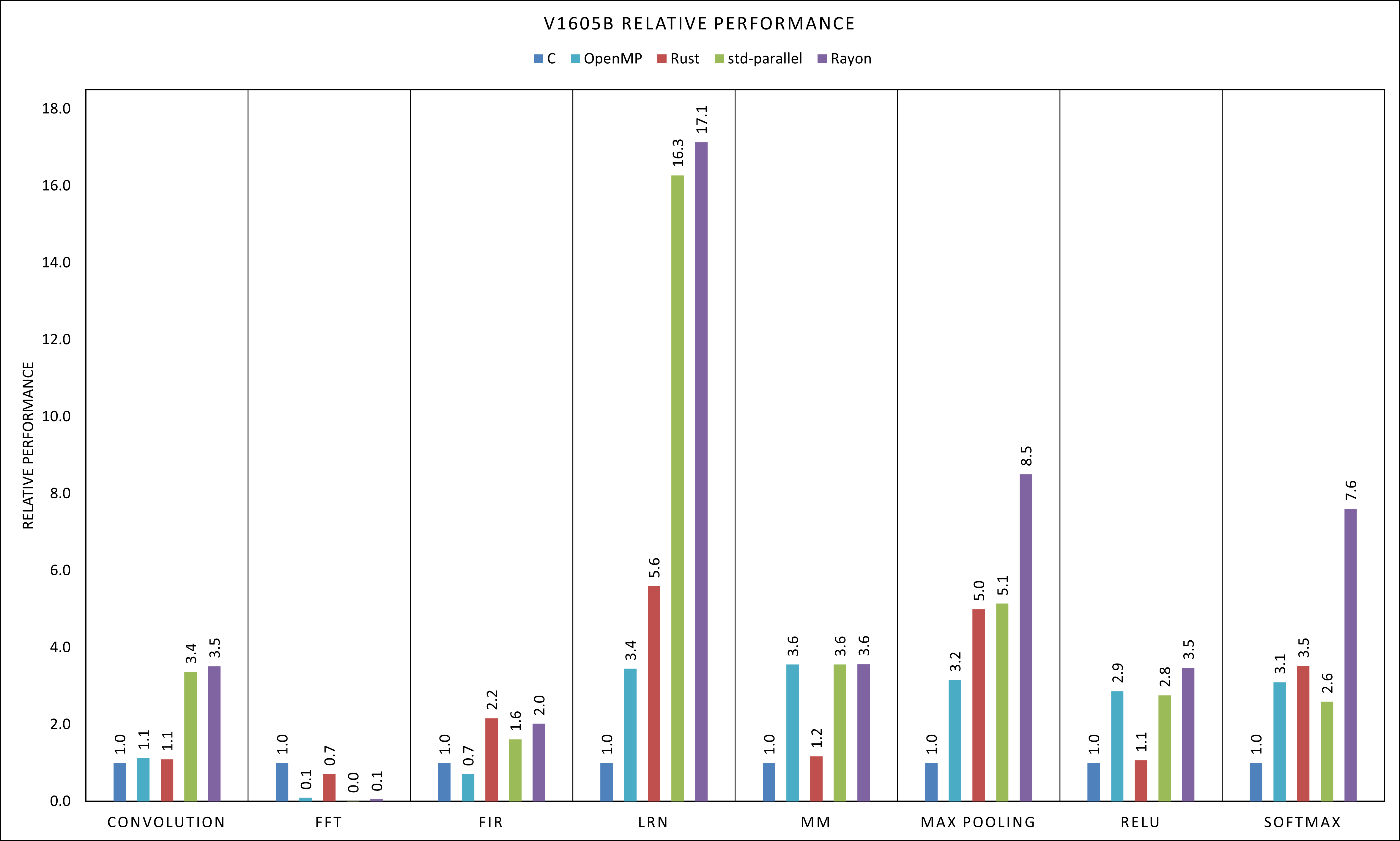

In the AMD results shown in Figure 4, we can see somewhat similar results, but here the std-parallel version of Softmax is slower than the sequential code and in Max Pooling it has a very similar performance, while on the ARM platform we could still see a speedup over the sequential code. As mentioned before, this is likely because the manual subdivision of the input and output matrices to make the parallelization possible interferes with the ability of the compiler to introduce vector instructions, while the more complex Rayon runtime is able to still utilize them. On the other hand, both Rayon and std-parallel manage to perform very well in the LRN benchmark, on both architectures.

Another difference with the performance on the Xavier is that on the V1605B the speedup does not go much higher than three, while in the Xavier case we had some cases, like LRN and Matrix Multiplication, where the performance was close to the theoretical maximum.

Until now we mostly considered the 1D version of the Matrix structure to have a better comparison with the C code, however as we mentioned, we developed also a 2D version which improves on programmability and decreases bugs when manually dealing with identifying rows.

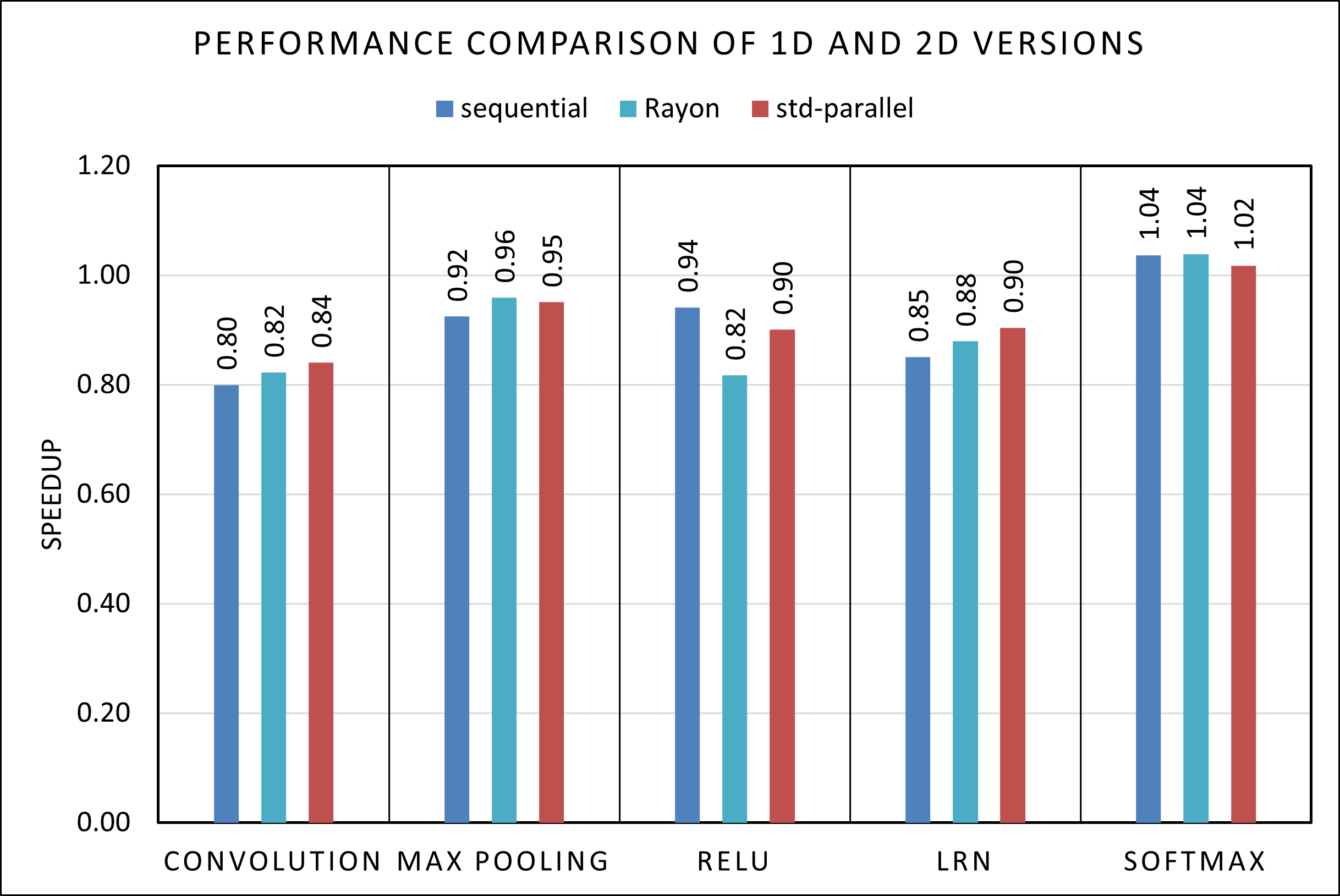

Figure 5 shows the speedup of some 2D Matrix algorithms over their 1D counterparts, and as we can see in general there is a performance deficit by having the rows allocated independently from each other. It seems to be the case that this deficit is not the same for all benchmarks, with Softmax actually showing an improvement, though perhaps not statistically significant. In our results the difference is usually pretty small, making the 2D matrix probably preferable in situations where we don’t care about very small performance differences. It should be noted though that the difference in the real world could be higher, if the structures are allocated during the execution rather than at the start of the program, or with more programs running at the same time, as the OS could place the different rows far away from each other, increasing the cache misses.
