Programming Time-Predictable Processors with Lingua Franca

FlexPRET is an open-source RISC-V processor with a 5-stage in-order pipeline [35]. It implements fine-grained multithreading and has an always-taken branch predictor. Scratchpad memories provide constant memory access latency as opposed to traditional cache hierarchies. It extends the RISC-V ISA with custom timing instructions to enable the developing of time-sensitive applications.

FlexPRET fetches instructions from different threads during each cycle. The instructions are interleaved in the pipeline with instructions from other hardware threads. Each hardware thread has its program counter, register file, and other control registers. A hardware scheduler manages which thread to run at each clock cycle. With multiple threads interleaved in the pipeline, the spacing between dependent instructions increases, which reduces the number of pipeline bubbles. This increases the overall throughput.

FlexPRET’s hardware threads can be configured as a hard real-time thread or a soft real-time thread. Hard real-time threads have temporal isolation, meaning they can guarantee a fraction of all processor cycles independent of the execution of other threads. When a hard real-time thread finishes its task, it may enter a sleeping state, which frees up its cycles to be used by soft real-time threads. In a multicore system, the user might assign execution of the main application to core 0 and interrupt handling to core 1 to provide temporal isolation for core 0. FlexPRET can achieve the same by assigning the main application to hardware thread 0 and interrupt handling to hardware thread 1.

Lingua Franca (LF) is a polyglot coordination language introducing determinism to concurrent and distributed systems [19] by using actors exchanging messages with time stamps [20]. Figure 1 shows an auto-generated diagram representing a LF program. In LF, a program comprises stateful components called reactors represented as rounded rectangles in the diagram. In Figure 1 there are three reactors: the Ping reactor, the Pong reactor, and the top level main reactor. In this LF program, the Ping reactor sends integers to the Pong reactor, which echos them back.

Reactors encapsulate event-triggered reactions represented as dark grey chevrons in the diagram. The reactions encapsulate a sequential program called the reaction body, written in the target language. A reaction is associated with a set of triggers and effects. Triggers include input ports of the parent reactor, represented as black triangles; actions, represented as white triangles; timers, represented as clocks; and the two builtin triggers startup and shutdown, represented by a white circle and a white diamond, respectively. Triggers can be typed, meaning that their events also carry a payload. E.g., the input port receive of Ping has the type int. In the diagram, a dashed line between a reaction and a trigger or an effect indicates a dependency.

A reaction is invoked whenever there is an event at any of its triggers, and it might produce events that affect any of its effects, which include output ports and actions. In LF, it is the responsibility of the runtime to execute the reactions such that all of their dependencies are met, and determinism is assured. This relieves the programmer from handling low-level synchronization primitives such as locks, semaphores, and condition variables. Reactors communicate through connections, drawn as solid lines connecting input and output ports. An input port can only be driven by a single upstream output port.

LF has a semantic notion of logical time. Each event has a tag that denotes the logical time it should be handled. The logical time of an event imposes a lower bound on the physical time at which it is handled. A deadline can be associated with a reaction to impose an upper bound. It specifies the maximum allowed discrepancy between the logical and the physical time at which the reaction is invoked. A violation will trigger the deadline miss handler supplied by the programmer.

LF introduces determinism to concurrent and distributed software, a property rarely found in these systems [14, 12, 10]. Given an initial state and a given input data to an LF program, LF imposes a partial order on the triggering reactions to ensure data determinism. Computed data will not depend on scheduling decisions nor on execution times (unless deadlines are violated). We refer to this as logical determinism. PRET machines have temporal determinism. Given its input data, a program executed on a PRET machine defines a unique timing behavior. When PRET machines are programmed with LF, we can expand the model of computation to encompass temporal and logical determinism. As such, the correctness of the system is determined not only by the ordering of outputs but also by their timing.

LF is particularly suited for the programming of PRET machines because:

1. (1)

   It has a deterministic semantics establishing well-defined ordering constraints on processing events. As such, we move away from programming PRET machines with threads.

2. (2)

   It simplifies concurrent development and exploits its knowledge of independent reactors to execute them in parallel. This increases the overall throughput of a PRET machine.

3. (3)

   It has a semantic notion of time, which lets the developer specify time-sensitive tasks, enforce deadlines, and handle deadline misses. This can directly map to semantics in a PRET machine’s ISA, which yields efficient implementation.

4. (4)

   It is based on a scalable programming model that can efficiently be executed on multicore and distributed systems. For future work, we intend to extend LF support to InterPRET [8], a multicore PRET machine based on FlexPRET.

Our overarching goal is to develop predictable real-time systems. PRET machines are time-predictable on the microarchitectural level and, as such, lay the foundation for our goal. Most real-time systems will have concurrent tasks, each performing different functions with different timing requirements. This is also matched by the PRET machines’ microarchitectural support for concurrency through hardware threads. However, if there is any interdependency among the different concurrent tasks executing on the various threads, ensuring deterministic execution becomes challenging. Typically, programmers rely on mutexes, semaphores, and condition variables to orchestrate such tasks, all of which are error-prone techniques.

LF addresses these issues and provides deterministic coordination of concurrent real-time tasks. A network of reactors will denote, at compile time, a well-defined ordering of reaction executions. However, to deliver real-time computations in LF, we must be able to provide an upper bound on the execution times of reactions.

Consider the LF program shown in Listing 1. It consists of two reactors. Sensor has a physical action a that is triggered by an asynchronous event with a min_delay of 0 and a min_spacing of 10 ms. The events are filtered and passed to Actuator that reacts with a 5 ms deadline. If this is a hard real-time system, we must guarantee that the Actuator does not miss any deadlines. By running this program on a FlexPRET, it is possible to derive a tight bound on the WCET of the reaction in Sensor. Suppose we can compute a WCET of less than 5 ms (neglecting the runtime overhead). In that case, we can statically guarantee the latency from handling the asynchronous input until triggering the Actuator reaction. However, this alone is insufficient; we might miss deadlines if the asynchronous events arrive too frequently. In LF, this is handled by the min_spacing argument on the physical action, which creates a lower bound on the time between events. The LF runtime handles events that violate this bound according to some policy (the events are either deferred, dropped, or replaced). In the case of Listing 1, we are guaranteed not to receive more than one asynchronous event per 10 ms. Not all reaction bodies will allow for deriving a sufficiently small WCET; for some reaction bodies, no WCET can be derived. With FlexPRET, we can easily handle this using the interrupt_on_expire instruction combined with setjmp and longjmp. The reaction of Sensor can be rewritten as shown in Listing 2. Now, the reaction is guaranteed to terminate within 5 ms even if the execution time of the function filter is greater than 5 ms. This programming style can be dangerous because it can leave a program in an inconsistent state, and any updates to shared global variables should be done with interrupts disabled.

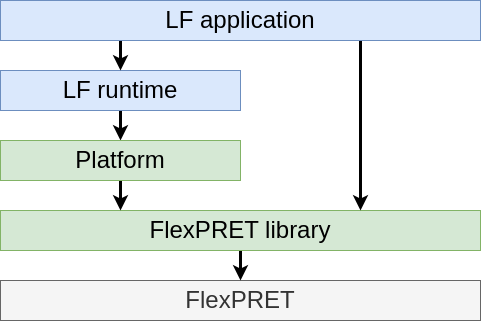

Figure 2 shows an overview of the software stack executing LF programs on the FlexPRET platform. At the top of the stack is the LF application written by the user. It builds on both the LF runtime and the FlexPRET library, as the user may opt-in to use functionality from the FlexPRET libraries directly. The LF runtime exposes an application programming interface (API) to the LF application with functions for reading and writing from ports, reading the current logical and physical time, and scheduling new events.

The LF runtime itself is built in terms of a generalized API implemented in Platform, with functions and type definitions. Examples are void lf_initialize_clock(void) or int lf_critical_section_enter(void). Adding support for a platform means implementing these functions for the particular platform. Since FlexPRET has native support for timing functionality, many implementations directly map to its custom instructions, which yields efficient implementations.

The LF C runtime can run in single-threaded or multithreaded modes. In the single-threaded mode, the LF runtime executes on a single FlexPRET hardware thread. The other hardware threads can be used for different tasks, such as interrupt handling. The two are temporally isolated by running the LF application on one hardware thread and interrupt handling on another. This protects the timing characteristics of the LF application. Assuming they do not share memory, they are isolated, as if running on two isolated processors. Another possibility is to run an entirely different program, possibly written in LF.

In the multithreaded mode, the LF runtime coordinates multiple workers, each executing within a thread. FlexPRET exposes hardware threads to the LF scheduler instead of the usual software threads. Context switching between hardware threads is round-robin every clock cycle, unlike software threads that typically have a millisecond granularity. This gives the single-core FlexPRET the appearance of executing several threads in parallel, like a multicore processor. Multiple FlexPRET hardware threads can control time-sensitive applications involving multiple actuators simultaneously.

However, FlexPRET cannot support more than $N$ worker threads, where $N$ is the number of hardware threads available on the core ($N$ is 8 in current implementations). Software threads and a scheduler can be built on top of one or more hardware threads to increase the number of threads, but this defeats the purpose of the PRET machine. Fortunately, LF delivers data determinism for any number of worker of threads.

Supporting multithreaded LF on FlexPRET requires additional function implementations, primarily related to running and synchronizing threads. FlexPRET implements all thread synchronization through a single hardware lock (a single bit wide). Acquiring and releasing the lock are atomic operations, and only a single thread may hold the lock at any time. Because of this, the lock can compose any number of operations into an atomic one. We use the single hardware lock to implement other thread synchronization primitives, such as mutexes, semaphores, and conditional variables. Because the critical sections using the hardware lock are very short, we implement it as a spinlock.

We found that FlexPRET’s hardware lock mechanism can become a bottleneck. The multithreaded LF runtime relies on many synchronization primitives, which may cause a lot of congestion. Multithreaded LF will be more suitable once FlexPRET adds better hardware support for thread synchronization, e.g., like in Strøm et al. [30]

Control systems often run with a fixed period and consist of (1) the sampling of sensors, (2) processing and sensor fusion, and (3) driving of actuators. Variations in the period between two invocations of the same stage are known as jitter. Jitter can harm control system performance concerning actuation (i.e., output jitter) and sampling (i.e., input jitter).

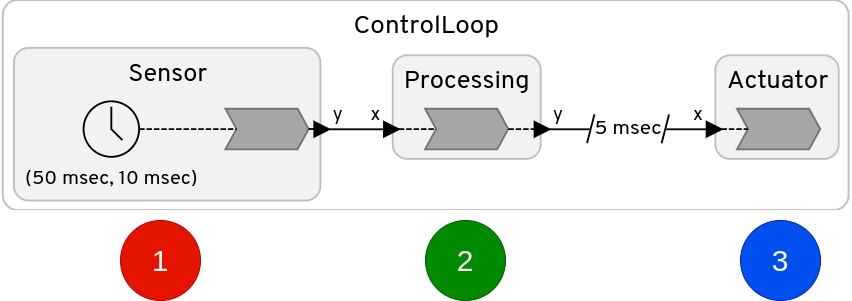

In the first experiment, we evaluate the timing characteristics of a tight control loop shown in Figure 3(a). We sample the time when the Sensor reactor transmits a measurement to the Processing stage (1). Next, we sample the time to run the Processing stage (2). Like (1), we sample when the Actuator receives a command from the Processing stage (3).

The stages in the control loop are simulated. The Sensor samples a normal distribution and transmits it to the Processing stage. In general, the execution time of control algorithms may depend on the sensor data, e.g., if the control algorithm runs an optimization. To simulate this behavior, we implement the Processing stage as for (volatile int i = 0; i < x; i++); where $x$ is the measurement from the sensor. This introduces jitter to the Processing stage. We then leverage LF’s delayed connections to decouple the connection between Processing and Actuator, which adds a logical delay to the data to remove the jitter from the earlier stages, as in the logical execution time (LET) principle [6, 5].

We evaluate the control loop on four different embedded platforms. Table 1 gives some key parameters for each platform. FlexPRET is synthesized for a Zedboard Zynq-7000 Field Programmable Gate-Array. The RP2040 has a default clock frequency of 133 MHz, but is reduced to 64 MHz to make it comparable to nRF52. The Raspberry Pi 3b+ (RPi) operating system has a default configuration and runs some services in the background. We have made no effort to optimize RPi for real-time applications; this is outside the scope of this paper.

To evaluate the robustness of each platform, we trigger interrupts while the benchmark runs. We distinguish between periodic and sporadic interrupts. We transmit the periodic interrupts with a fixed period of 10.5 ms, which is selected not to match the period of the tight control loop, which is 10 ms. The periodic interrupts could emulate, e.g., a sensor interrupt. In addition, we transmit interrupts sporadically and in bursts, which simulate a network connection. The periodic and sporadic interrupts have an interrupt handler, which performs a fixed amount of computation. Depending on which platform is used, this might disrupt the timing characteristics of the benchmark. All platforms receive identical interrupt signals, and throughout the benchmark, we transmit approximately 1000 periodic interrupts and 100 sporadic interrupts.

The physical setup is shown in the code repository.²²2https://github.com/magnmaeh/programming-pret-machines After completing the benchmark, a computer uploads executables to the target platform and receives timestamps. We use a Digilent Analog Discovery as a waveform generator. It transmits periodic and sporadic interrupt signals after receiving a trigger signal from the platform. The computer predetermined the exact waveforms, making it possible to transmit identical waveforms to all platforms.

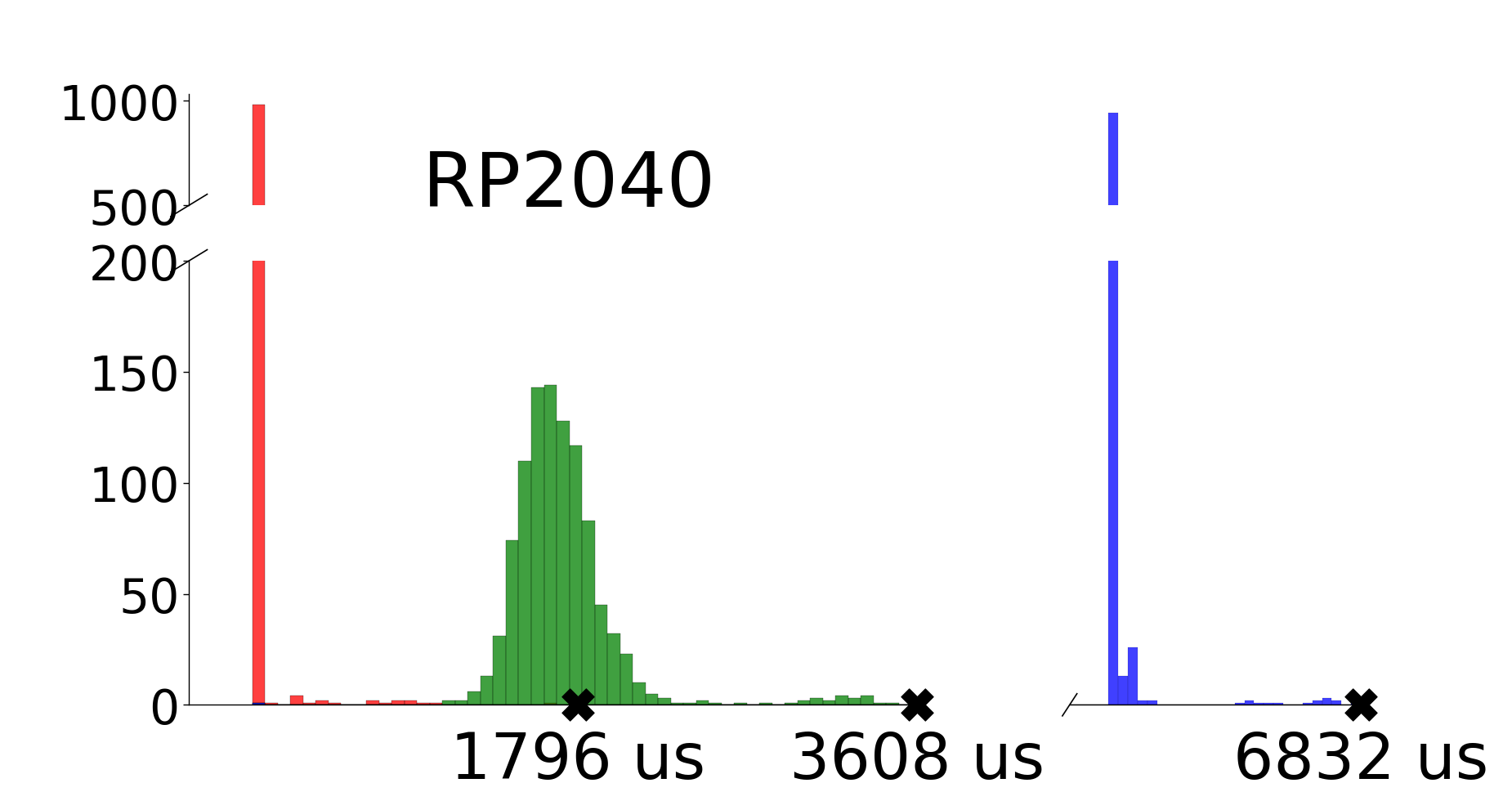

Figure 4 shows the results for all platforms. The RP2040 and nRF52 are comparable platforms and yield similar results. They both have long tails behind the most recurring execution times from interrupt handling. In Figures 4(a) and 4(b), we mark three points on the x-axis, each corresponding to the worst observed execution time of each stage in the control loop. E.g. for the RP2040, the worst observed execution time for the Sensor stage is 1796 us and 3608 us for the Processing stage. However, when no interrupts occur, the Sensor and Actuator stages execute within 100 us. Therefore, interrupts significantly impact the execution time of the reactions. As expected, we conclude that the RP2040 and nRF52 platforms are susceptible to jitter from interrupt handling.

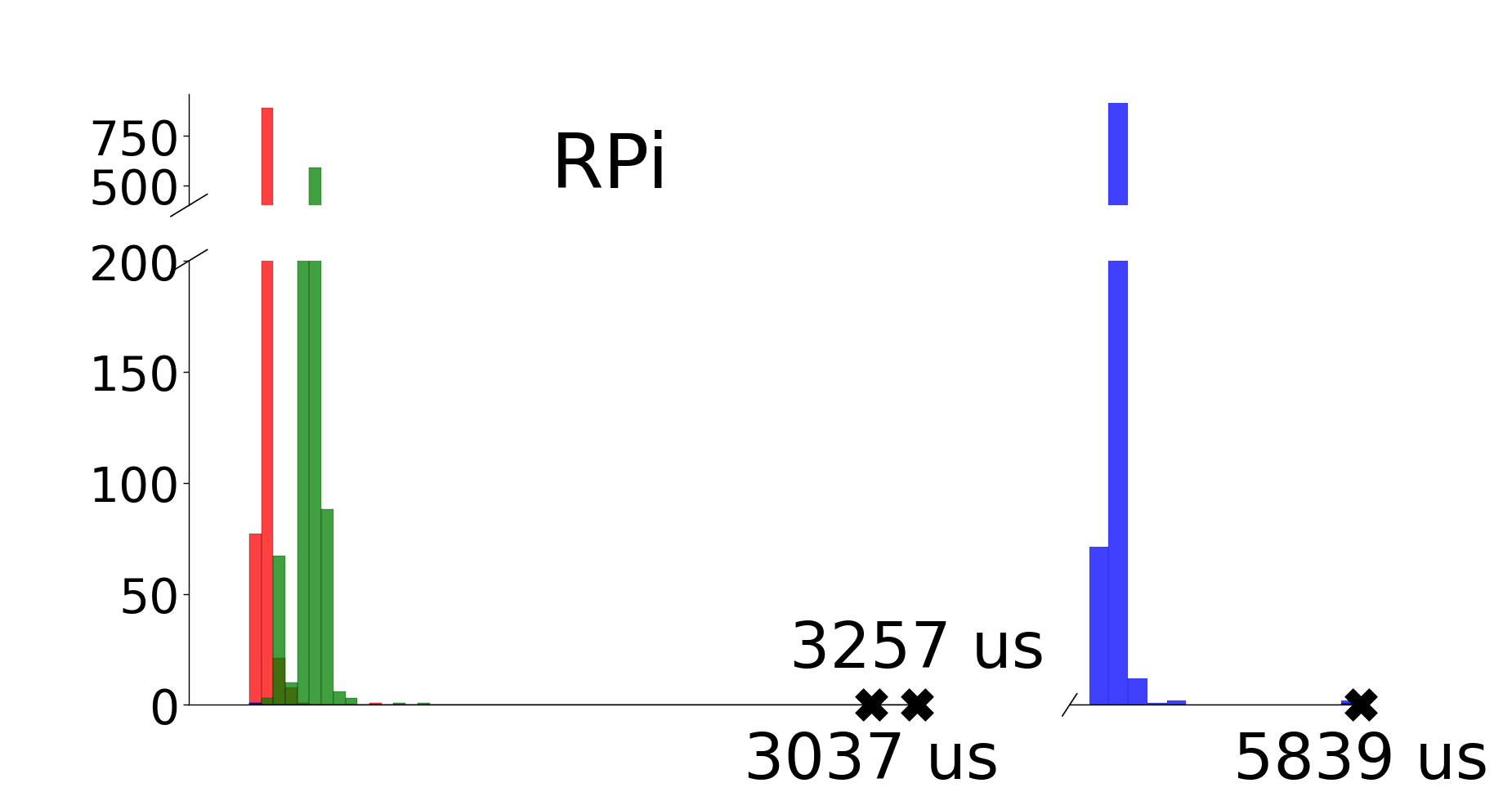

As seen in Figure 4(c), the RPi does not have long tails like the RP2040 and nRF52 but instead has a few rare outlier points. The RPi has four processor cores and runs interrupt handlers on a core different from the one running the application. Therefore, the timing characteristics of the benchmark are unaffected by interrupts. The outlier points instead come from the operating system (OS), such as running background services or handling page faults. The programmer cannot control such OS issues without changing the underlying OS, and it is difficult to determine how they impact the timing characteristics of the application. In Figure 4(c), the worst observed execution time for the Sensor stage is 3037 us, almost 3000 us more than the average case. However, the outlier in the Actuator stage is much less severe, only adding approximately 800 us to the average case. It is difficult to determine whether we will observe even worse execution times. We conclude that the RPi is mainly immune from the jitter introduced by interrupt handling, but the underlying platform (including OS) is inherently unpredictable.

Figure 4(d) shows the results for FlexPRET. FlexPRET has temporal isolation between the benchmark application and the interrupt handlers, much like the RPi running the interrupt handlers on idle processor cores. Unlike the RPi, however, the FlexPRET is programmed in bare-metal and does not suffer from OS timing issues. On the other hand, the FlexPRET spends a relatively long time inside the Processing stage. This is a combination of a relatively low clock frequency of 100 MHz and using multiple hardware threads. The hardware thread running the benchmark is configured as a hard real-time thread with a schedule granting it 1/4 of all processor cycles, resulting in effectively 25 MHz. Aside from the relatively slow execution, FlexPRET has no jitter in the Sensor and Actuator stages. The jitter in the Processing stage is inserted by design, and it does not propagate to the Actuator stage due to a delayed connection from LF.

Two takeaways from Figures 4(a)-4(d): First, LF applications on FlexPRET run with negligible jitter compared to the other platforms. On the FlexPRET, the execution time of the Sensor stage is exactly 47.280 us every iteration of the control loop, except for the first iteration due to initialization of the LF runtime. In contrast, the RP2040 and nRF52 have moderate jitter in these stages when no interrupts trigger and extreme jitter when they do. Second, despite the jitter stemming from the underlying platform or data-dependent processing, the LF’s delayed connection successfully filters out the jitter from the Sensor and Processing stages.

To compare LF in single-threaded and multithreaded mode running on the FlexPRET, we implement a simple LF application consisting of three identical reactors as shown in Figure 3(b). Each reactor contains a single reaction that performs a long, constant-time computation. In LF, the three reactions will execute logically simultaneously. However, the actual physical execution timeline will depend on the platform. We execute this program in multithreaded and single-threaded modes on the FlexPRET and nRF52 with Zephyr.

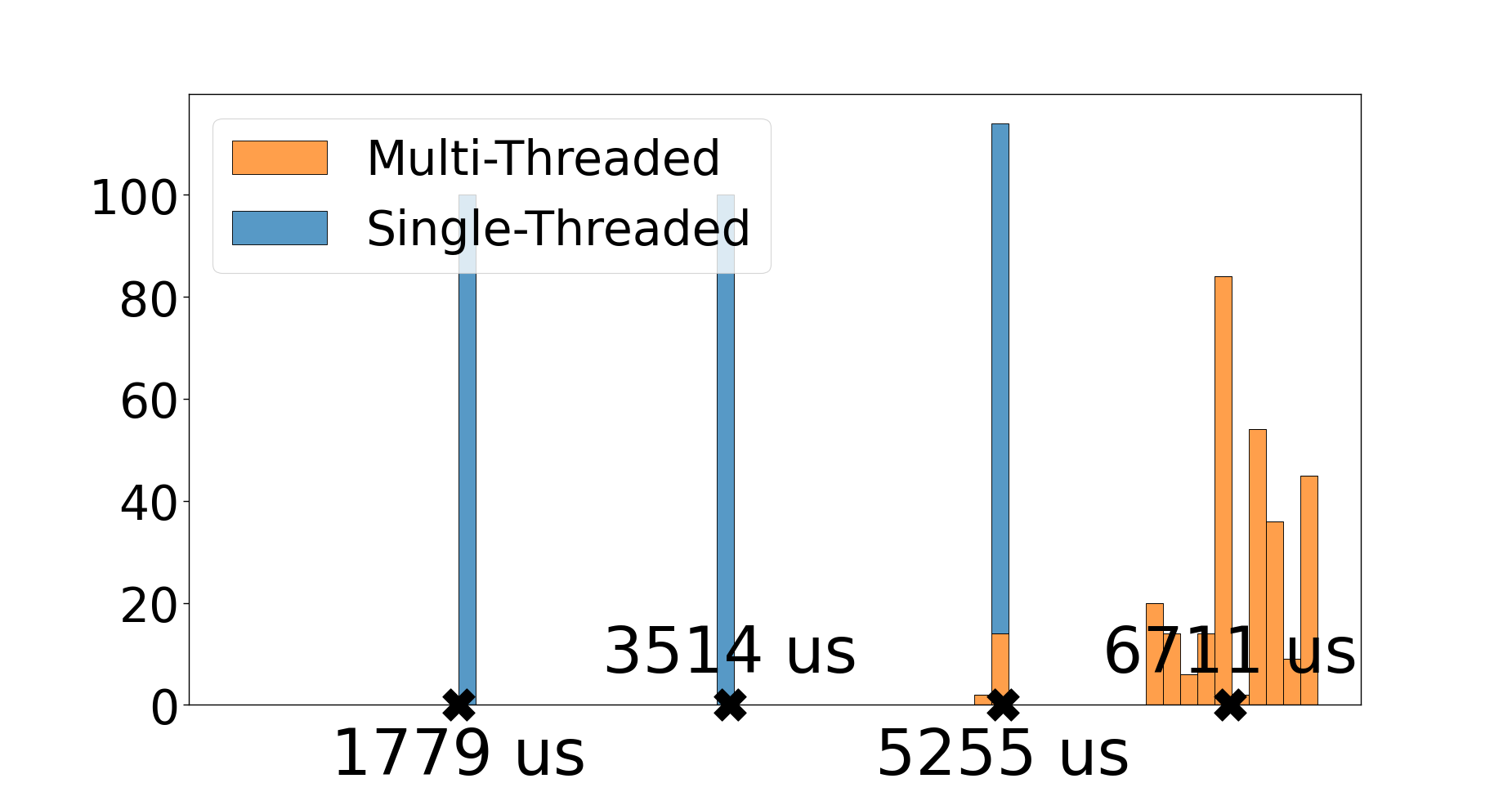

Figure 5(a) shows the results for nRF52. The x-axis displays the time. With the single-threaded LF runtime, the three reactions execute sequentially. The reactions finish at different physical times: 1779 us, 3514 us, and 5255 us. In addition, the LF runtime may execute the reactions in any order. This means a given reactor might finish at very different physical times when executed twice, e.g., at 1779 us one iteration and at 5255 us another iteration.

Using the multithreaded LF runtime on the nRF52 adds much overhead. We configure Zephyr’s scheduler to be preemptive with a time slice of 1 ms. This means any running thread must yield execution to other threads after 1 ms. We also configure LF to use three worker threads. From Figure 5(a) we can see that using the multithreaded runtime adds quite a lot of overhead; this is a combination of overhead from LF multithreaded runtime, overhead from Zephyr’s scheduling algorithm running every 1 ms, and the coarse granularity of the system clock that triggers the scheduler. However, there is less variation in the physical times the reactions finish.

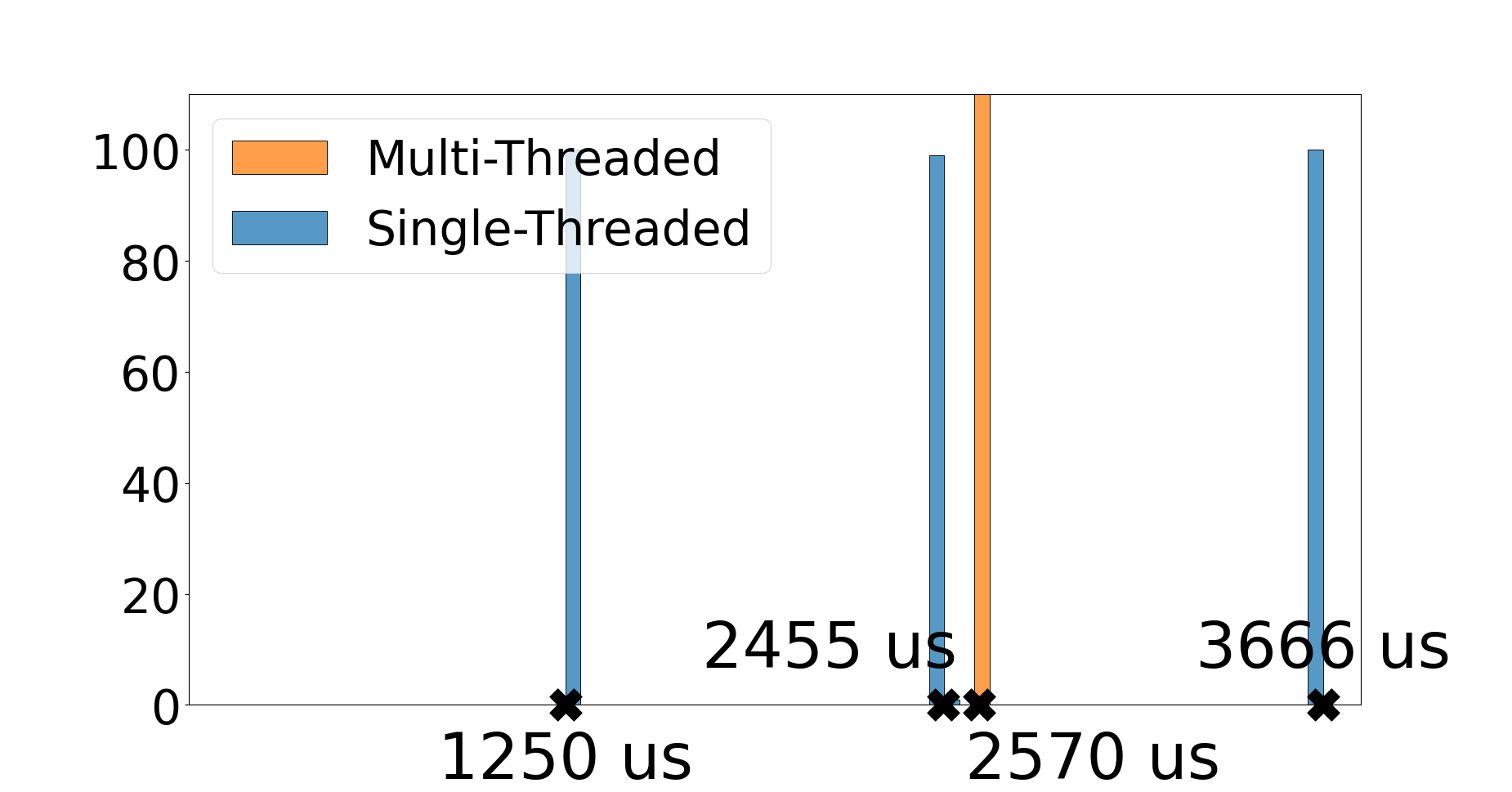

Next, we consider the results for FlexPRET in Figure 5(b). Similar to the nRF52, the single-threaded LF runtime executes the reactions sequentially. The FlexPRET finishes execution quicker than the nRF52 because its clock frequency is 100 MHz instead of 64 MHz, and the FlexPRET’s hardware thread executing the LF application is given all clock cycles. (In the previous benchmark, the LF application was given only 1/4 of all clock cycles, essentially running it at 25 MHz.) Similar to the nRF52, sequential execution of the reactions means they finish at widely different physical times.

Changing to the multithreaded LF runtime has two consequences. First, all reactions finish execution at approximately the same time. They appear to finish simultaneously in the plot, but in reality, the execution time is distributed around 2570 us with a standard deviation of 7.8 us. The small amount of jitter probably comes from FlexPRET’s hardware synchronization primitives. Second, the total time to execute all three reactions decreases. As established in Section 2.1, interleaving multiple hardware threads in the pipeline increases FlexPRET’s overall throughput. The effect is strengthened by the aforementioned long computation being implemented as for (volatile int i = 0; i < 10000; i++);. This compiles into frequent load and branch instructions, the latter being the culprit of pipeline bubbles in single-threaded execution.
