Low-Latency Real-Time Applications on Heterogeneous MPSoCs

Embedded systems used in industrial applications are becoming both more performant and increasingly complex. As part of this trend, heterogeneous Multi-Processor Systems-on-Chip (MPSoCs) are gaining popularity. These devices typically combine multiple, heterogeneous CPUs with other computational resources, such as GPUs or FPGAs. This makes them well-suited to a wide range of applications, and popular in domains like industrial or automotive applications. A common example is the Xilinx Zynq UltraScale+ family of MPSoCs, which include both a multi-core ARM Cortex-A53 CPU as well as a dual-core ARM Cortex-R5 CPU, the latter of which is suitable for running real-time applications which require deterministic performance, while the former can be used for more computationally intensive applications.

However, in a parallel trend, real-time applications, for instance in industrial applications, have also grown more complex and computationally expensive, to the point where the individual CPUs on an MPSoC may not be sufficient for meeting their performance requirements, and distributing them across the different, heterogeneous CPUs becomes necessary.

While frameworks and libraries like OpenAMP¹¹1https://www.openampproject.org/ to facilitate the development applications for heterogeneous MPSoCs exist, they are most commonly used in configurations that include a full-featured, general-purpose OS on one of the CPUs and a real-time operating system on another (for example, running Linux and FreeRTOS on the Cortex-A53 and Cortex-R5 cores of a Xilinx Zynq UltraScale+ device). They are not suitable for low-latency real-time applications.

In this paper, we investigate the performance of different hardware primitives for communicating between different processing units on the Xilinx Zynq UltraScale+ MPSoC, identify an approach that relies exclusively on shared memory as the most suitable, and develop a solution for inter-processor communication in low-latency real-time applications distributed across heterogeneous processing units on top of it.

This paper is structured as follows: We first provide an overview of the system we are working with and the requirements our solution is intended to meet in Section 2. Benchmarking results are presented in Section 3. We describe our solution in Section 4, summarize related work in Section 5. and provide concluding remarks in Section 6.

We consider a heterogeneous MPSoC with at least two distinct processing units, which may use different instruction sets. The MPSoC additionally provides shared resources and communication between the processing units, including the possibility of issuing inter-processor interrupts from either processor and the availability of one or more memories that can be shared between the processors. We do not assume that any of the processors runs a full-fledged general purpose OS, such as Linux. Instead, all applications run either on an RTOS or bare metal. RTOS instances on each processing units may run in either an SMP configuration or with different instances on each core. This, in combination with the latency requirements described in the following, rules out the use of existing solutions such as OpenAMP. We do not consider any additional computational resources the MPSoC may provide, such as GPUs or FPGAs.

As mentioned in Section 1, a widely used hardware platform that matches these criteria is the Xilinx Zynq UltraScale+ MPSoC. Figure 1 shows the system setup described above, as mapped to this platform. To enable the different cores to communicate, we investigate both inter-processor interrupts and shared memory. For the latter, our target platform offers a number of different options, as well as a large configuration space, including various QoS mechanisms [35]. While we investigate the suitability of all memories or memory access configurations shown in Figure 2, we do not explore additional configuration options, apart from the use of the cache-coherent interconnect. We therefore end up with a total of four different memory configurations as options to build our solution on:

1. 1.

   On-Chip Memory (OCM), with a total capacity of 256KiB, which is treated as non-cacheable memory by both processors.

2. 2.

   DDR, using the default access paths for both processors, with a designated region of memory that is configured to be non-cacheable for both processors.

3. 3.

   DDR, using the cache-coherent interconnect (CCI), with the real-time processor configured to use the coherent access path, and snooping of application processor caches from the CCI enabled (marked DDR/CCI in the following).

4. 4.

   Tightly Coupled Memory (TCM), with a total capacity of 128KiB for each real-time core, which is treated as non-cacheable memory by the application processor (and which is on the same level of the memory system as the caches for the real-time cores).

While only these shared memories are options for data transfer between processors, signaling can take place either over shared memory or using inter-processor interrupts ((5) in Figure 2).

The resulting solution is intended to be able to run low-latency real time applications, with response times below 30 microseconds, distributed across multiple processing units, including communication between processors in time-critical paths. Our primary aim is therefore to minimize latency, as we are only able to tolerate signaling and data transfer latencies between the processors of at most a few microseconds. Other considerations, such as reducing overall CPU utilization across the different processing units, are secondary.

We also aim to support two different kinds of communication between the processors in a distributed real-time task: Sporadic and periodic communication. The latter describes instances of communication that take place during every execution of a cyclical task - for instance, one processor sending an input for a computation to another and subsequently receiving its result. In this scenario, there is a corresponding read for each write, as in synchronous message passing, allowing for synchronization between tasks as well as data exchange. In sporadic communication, a task executing on one processor may occasionally update information that is used by a task running on the other processor, but no synchronization between the two occurs. It must be ensured that data read by the latter processor always remains internally consistent, and that its execution is not delayed by updates to the shared data (ruling out, for instance, any form of locking).

In the following, we describe our benchmarking and subsequent selection of hardware primitives to build our solution on in Section 3, and describe the solution and corresponding API in Section 4.

In the following section, we will examine various metrics used to evaluate the proposed approach. These benchmarks were also instrumental in selecting the optimal memory type for fast and resilient control data transfer. All benchmarks were conducted on a Xilinx Zynq UltraScale+ MPSoC, programmed using the AMD Vitis™ Unified Software Platform. The Ultra96 evaluation board used for testing is equipped with a Zynq UltraScale+ Ultra96 MPSoC, featuring a quad-core ARM Cortex-A53 CPU clocked at 1.2 GHz (the APU), a dual-core ARM Cortex-R5F CPU clocked at 500 MHz (the RPU), and 2 GiB of LPDDR4 memory.

The benchmarking scenario was structured as follows: Each test included 1,000 iterations, with 10 separate runs per test. To evaluate the impact of tasks running on another CPU core on inter-core communication performance, benchmarks were also conducted while a parallel FreeRTOS instance executed a memory-intensive task concurrently on another core of the APU. This memory-intensive task is based on a lightly modified version of the STREAM memory bandwidth benchmark[40], with changes to remove logging output and repeat benchmark runs indefinitely.

Time measurements for the benchmarks are taken on the target device itself. For measurements involving both processing units, this requires using one of the triple-timer counters (TTCs) available on the device. It is important to note that interacting with the TTCs itself impacts latency, which affects the measurements taken this way.

As our benchmark results show, relying only on shared memory for signaling can achieve lower latencies than inter-processor interrupts. This comes at the cost of requiring the receiving side to busy-wait, thereby hurting overall efficiency since the receiving side is not able to perform useful work while waiting, and increasing CPU utilization. Nonetheless, we choose to build our solution only on shared memory, following the priorities described in Section 2.

As previously discussed in the same Section, we distinguish between two different types of inter-core communication: sporadic and periodic communication. We define periodic communication as communication that takes place during every execution of a cyclical task, for example, one processor sending an input for a computation to another and subsequently receiving its result. On the contrary, sporadic communication occurs only occasionally, for example, a task executing on one processor may update information that is used by a task running on another processor without any synchronization.

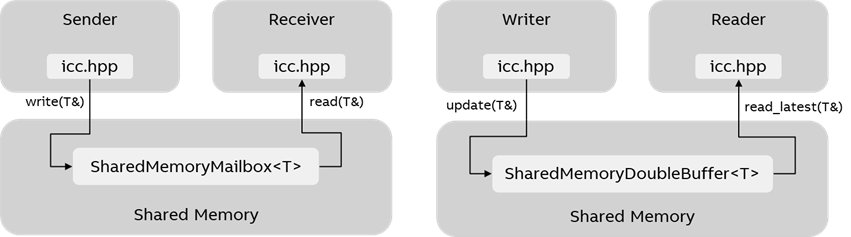

To facilitate an inter-core communication (ICC) between processors for these two communication types, we implement two concepts commonly used for inter-process communication: A mailbox and a double buffer. Figure 6 outlines the proposed inter-core communication API and its individual components.

The periodic communication is realized via a shared memory mailbox: A single-reader, single-writer mailbox that supports alternating reads and writes, i.e., for each write there must be a corresponding read prior to the next write. An in depth description is given in Section 4.1.

The sporadic communication is realized via a shared memory double buffer: A single-writer, multiple-reader buffer that may be read multiple times without restriction and can be updated independently of the reading process, provided that the update frequency remains lower than the read frequency. A detailed explanation is given in Section 4.2.

The ICC API is implemented as a header-only C++ library, without any platform- or hardware-specific code. Users need to provide a shared memory region visible to both communicating cores and instantiate the shared memory structures on both sides. For performance reasons, all data structures shared over this API should be trivially copyable and share the same layout on both sides. While adding serialization support is possible, and we have investigated a lightweight serialization extension to this solution, we omit a detailed discussion of this topic.

In the rapidly evolving domain of Multi-Processor Systems-on-Chip (MPSoCs), extensive research has been conducted to enhance performance verification, communication architectures, task scheduling, and memory management. This section reviews key contributions, providing a comprehensive context for the solution proposed in this paper.

Inter-processor communication is a critical aspect of MPSoC design. Hung et al. [20] introduced MSG, an inter-core communication mechanism derived from MPI and MCAPI, showing improved performance on platforms like IBM CELL. Schwäricke et al. [34] used cache partitioning in a real-time communication framework, which is applicable to managing memory contention. These studies emphasize established protocols and cache management, yet our research distinguishes itself by using shared memory exclusively for signaling and data exchange, avoiding inter-processor interrupts to achieve sub-microsecond latencies essential for time-critical applications. Loghi et al. [25] provided insights into communication bottlenecks using SystemC simulations, while Nieto et al. [28] explored synchronization methods on the Zynq-UltraScale+, comparing techniques like InterProcessor Interrupts (IPIs) with shared memory. Our work builds on these by demonstrating that removing IPIs in favor of shared memory not only simplifies the communication model but also enhances latency performance, pivotal for real-time applications across heterogeneous units. Further studies by Mirosanlou et al. [26], Belloch et al. [5], Hassan et al. [18], and Nollet et al. [29] investigated communication strategies and low-latency interconnects relevant to shared memory systems.

Performance verification is crucial for MPSoCs. Richter et al. [32] and Castells-Rufas et al. [8] provided foundational methodologies for assessing communication performance. France-Pillois et al. [11] and Shanthi et al. [36] developed tools to optimize synchronization barriers, enhancing communication efficiency in real-time systems. Our study offers a streamlined solution with concrete benchmarking results, demonstrating the practical application of shared memory in achieving low-latency communication without traditional synchronization complexities.

Effective memory management underpins low-latency communication. Bansal et al. [4] and Carletti et al. [7] tackled cache coherency and memory contention, proposing techniques like cache coloring. Our approach simplifies memory access patterns by using shared memory, reducing contention and bypassing cache coherency challenges, thus enhancing predictability and efficiency. Hoornaert et al. [19], Hahn et al. [17], Kogel et al. [22], and Acacio et al. [1] focused on memory subsystem optimizations and architectural strategies for efficient memory access.

Optimizing task scheduling is vital for communication efficiency. Singh et al. [37] and Ali et al. [2] developed heuristics and methodologies for runtime mapping and energy efficiency. Spieck et al. [39] emphasized minimizing communication overhead. Our approach prioritizes achieving minimal communication latency over resource utilization, dedicating one processor to this task, aligning with the stringent requirements of real-time applications. Ristau et al. [33] and Guerin et al. [15] explored strategies that optimize resource usage and reduce communication latency, critical for efficient shared memory communication.

Real-time applications often operate within mixed criticality systems, which require predictable performance across varying criticality levels. Gracioli et al. [14] proposed frameworks that use dedicated memory interfaces and cache coloring to ensure timing predictability. Nowotsch et al. [30] focused on managing resource contention to maintain timing predictability. Our work uniquely addresses the latency needs of these applications through a shared memory-based model that avoids additional complexities, ensuring timing predictability in mixed criticality environments. Geyer et al. [13] and Kim et al. [21] provide additional context for managing real-time constraints.

Several studies, while not directly focused on shared memory communication, provide valuable insights into MPSoC design and optimization. Research on virtualization in mixed criticality systems [10, 9, 31], as well as security and energy efficiency in IoT applications [42, 16], highlight the importance of dynamic resource allocation and energy efficiency, complementing shared memory communication strategies. Advanced resource management techniques explored by Kumar et al. [23] and Frid et al. [12] contribute to optimizing performance and energy efficiency.

Further contributions include studies on programming models and software optimization, such as Sommer et al. [38], which examines parallel programming models for automotive applications, and Brown et al. [6], who introduced the Distributed Multiloop Language (DMLL) to optimize parallel applications. Our approach offers an easy-to-use, header-only C++ library that facilitates porting across different platforms, emphasizing practical applicability in real-time environments. Liu et al. [24] explores flexible inter-core communication methods in multicore processors, demonstrating low latency and high system performance, aligning with the objectives of optimizing shared memory communication. The work by Tsao et al. [41] and Nie et al. [27] on performance evaluation and design of multiprocessor embedded systems using shared memory further supports the development of efficient communication solutions. Anjum et al. [3] provides insights into the latest methodologies for optimizing inter-processor communication.

Deploying low-latency real-time applications across heterogeneous processors on modern MPSoCs poses a challenging problem, especially if communication between processors is required in a time-critical path.

We present benchmarking results and a proof-of-concept solution showing that, by avoiding inter-processor interrupts, relying only on shared memory for signaling and data exchange, and sacrificing efficient utilization of one of the processors to minimize latency, we can achieve signaling latencies and data transfer times in the low microsecond range on the Xilinx Zynq UltraScale+ platform.

We implement our solution in an easy-to-use, header-only C++ library. While our solution and implementation are straightforward to port to other hardware platforms, making the most effective use of it on another platform would entail additional benchmarking to select a suitable memory configuration.
