A Benchmark Framework for Byzantine Fault Tolerance Testing Algorithms

Byzantine Fault-Tolerant (BFT) protocols are at the heart of modern consortium-based blockchain systems. These systems use BFT protocols to reach consensus on the total order of transactions to commit, among a cluster of processes in a fault-tolerant manner. BFT protocols promise correctness even if some processes in the cluster behave maliciously or fail to follow the protocol specification. Along with the increasing popularity of blockchain systems in the last decades, numerous BFT protocols have been proposed.

The correct design and implementation of BFT protocols is crucial to ensure the correct functioning of these systems. However, BFT systems are prone to Byzantine fault tolerance bugs, i.e., flaws or errors that break their fault-tolerance and correctness properties in the presence of Byzantine and network attacks. These bugs allow attackers to exploit vulnerabilities in the system, undermining its ability to maintain correct behavior, as any mistake can lead to serious reliability and security problems with potentially catastrophic consequences. Several studies [1, 27, 21, 5, 26, 34] have discovered vulnerabilities in various BFT protocols and their implementations, underscoring the need for robust analysis and testing methodologies.

Recent work [6, 34] proposes new methods for automated testing of Byzantine fault tolerance in large-scale distributed systems. Twins [6], which systematically tests for Byzantine fault-tolerance by simulating Byzantine processes using twin replicas, is implemented in DiemBFT [32] and is available in Diem’s production repository. ByzzFuzz [34], a randomized test generator simulating Byzantine faults using message mutations, is available to test the implementations of Tendermint [8] and the XRP Ledger [29]. Given the discovery of new Byzantine fault tolerance bugs in production BFT systems and their increasing popularity, we can expect the development of more analysis and testing methods to analyze their correctness.

Despite advancements in automated test generation for Byzantine Fault Tolerance (BFT) protocols, the evaluation of these algorithms is often limited to the specific systems for which they were developed. The algorithms are assessed based on different implementations of BFT systems, making it challenging to compare their results across various contexts. To enable a comparative evaluation of their performance, it is necessary to have a collection of benchmark applications that represent a diverse range of bugs. While such benchmark suites exist for concurrency bugs such as RADBench [19] and JaConTeBe [22] or for programs with defects in specific programming languages such as BegBunch [12], Defects4J [20], BEARS [24], and GoBench [35] no such benchmark suite is available for Byzantine fault tolerance bugs. ByzzBench specifically addresses these limitations by enabling Byzantine fault injection capabilities and providing specialized property checkers, making it uniquely tailored to the challenges faced in the design and implementation of BFT protocols.

A major challenge for building a benchmark suite of Byzantine fault tolerance bugs in BFT protocols is the lack of a benchmarking framework that provides functionality for (i) uniform implementation of BFT protocols and (ii) a controlled protocol execution environment to facilitate the implementation of testing algorithms. Testing algorithms for BFT algorithms generate execution scenarios with particular concurrency, network, and process behavior, e.g., with particular delivery ordering or timing of the protocol messages, network faults to delay or lose some messages, and Byzantine process faults with specific malicious behavior. The enforcement of the generated test scenarios requires controlling the nondeterminism in the executions of the systems under test to exercise the generated specific test scenarios, which demands technical effort and makes it hard to test a broad set of BFT systems.

We present ByzzBench [28], a publicly available and extensible benchmark framework for implementing BFT protocols and evaluating the performance of the testing algorithms in detecting Byzantine fault tolerance bugs. The contribution of ByzzBench is two-fold. First, it allows protocol designers to validate their protocol implementations by testing them using the testing and exploration algorithms in the framework. Second, it allows functionality and interfaces for implementing Byzantine fault tolerance testing protocols in a controlled execution environment, offering a unified evaluation of testing methods on a set of benchmark protocol implementations. In summary, ByzzBench allows the users to:

• $\mathrm{■}$

  prototype BFT protocols in a unified framework of benchmark applications,

• $\mathrm{■}$

  implement testing and exploration methods for BFT protocols in a unified framework,

• $\mathrm{■}$

  evaluate relative performances of different testing and exploration methods,

• $\mathrm{■}$

  gain insight about the BFT protocol vulnerability characteristics.

The long-term goal of this work is to build a comprehensive, publicly available benchmark suite of BFT protocol implementations to evaluate the effectiveness of testing and exploration tools for BFT protocols. As an initial step, this paper presents a benchmark framework for BFT protocol implementations.

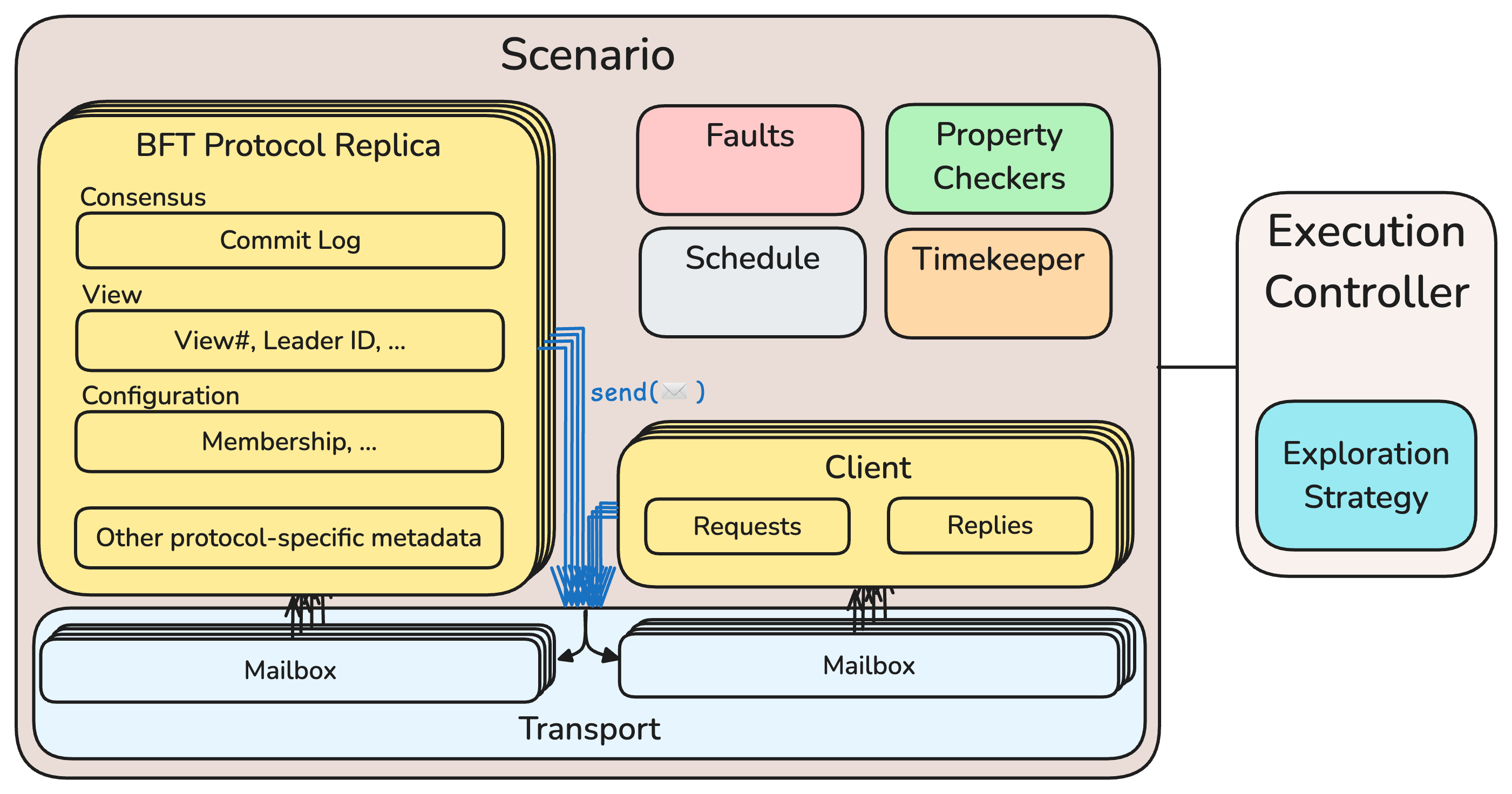

Figure 1 presents a high-level overview of the architecture of ByzzBench, with the main components of (i) a cluster of processes running a BFT protocol for state machine replication, (ii) client processes that submit requests to the cluster, (iii) controlled transport layer which maintains the in-flight messages and delivers them to recipients, and (iv) an execution controller, which dictates a specific execution scenario to the transport layer. The execution controller allows the implementation of different BFT testing algorithms by offering control over the timeouts, network faults, and benign and Byzantine process faults.

ByzzBench allows the implementation of BFT protocols by only focusing on the protocol logic, avoiding the boilerplate code for state machine replication, message communication, and command log operations. Similarly, it provides the controlled replica communication and fault injection features available for test scenario generation algorithms. Hence, the algorithm developers can implement their algorithms on top of the intercepted messages, decoupled from the implementation of the protocol under test. Moreover, it has available correctness checkers that run on the recorded replicated logs, which check for generic consensus properties and can be extended with more checks by developers.

Although our current benchmarks and examples primarily target BFT consensus protocols, ByzzBench is designed to be applicable to any BFT protocol, including those used for state machine replication and broadcast.

We demonstrate how ByzzBench can be used to assess the effectiveness of different testing algorithms through a preliminary evaluation on the seminal PBFT [11] protocol.

PBFT provides distributed agreement in a cluster of $3f+1$ processes, tolerating up to $f$ faulty processes, which can deviate arbitrarily from the protocol specification. An execution of the PBFT protocol is decomposed into views, in each of which one of the processes acts as a leader. In each view, the leader executes a sequence of client operations. For each request, the leader broadcasts a proposal, followed by two rounds of message exchanges in which the participants vote for the proposal. If a quorum agrees on the proposal, they execute the operation and reply with the result to the client. Processes store the total order of executed client operations in their message logs, and the protocol ensures that the correct processes agree on their contents.

The ByzzBench framework provides a buggy implementation of the PBFT protocol as a benchmark, seeding the same implementation errors found in the publicly available implementation, PBFT-Java [10]. The benchmark is vulnerable to agreement violations due to (i) incorrect assignment of sequence numbers in the protocol messages, (ii) incorrect processing of prepared certificates, and (iii) missing implementation of message digests.

We compare the performance of detecting the agreement violations in the benchmark using a recent testing algorithm, ByzzFuzz, compared to the naive random testing algorithm. Table 1 lists the percentage of test executions out of 1000 runs that detect violations using random testing and the ByzzFuzz algorithm. We evaluate ByzzFuzz using different algorithm parameters, i.e., $c=[0,2]$ process faults and $d=[0,2]$ network partition faults distributed into $r=10$ protocol rounds of the execution. Our results show that ByzzFuzz can detect violations more frequently than the naive random testing, in alignment with the findings in the previous work [34]. Moreover, we observe that the increasing number of faults injected into the execution increases the likelihood of exposing violations.

Several benchmark frameworks have been designed for evaluating the testing approaches to detect concurrency bugs [19, 22], data storage bugs [23], or benchmark programs in specific programming languages [12, 20, 24, 35]. However, none of these frameworks target Byzantine fault tolerance benchmarks and Byzantine fault tolerance bugs.

Previous work on BFT protocol benchmarks targets performance benchmarking under various workloads, computation power, and network configurations. BFTSim [31] offers a network simulator to evaluate protocol performance based on a range of network conditions. BFT-Bench [17] evaluates and compares the performance of BFT protocols under faulty network behaviors and workloads. BLOCKBENCH [13] targets private blockchains, allowing fine-grained testing of the blockchain system to evaluate their performance under smart contract workloads. BFTDiagnosis [33] is an automated fault injection framework for the security evaluation of BFT protocols. Bedrock [4] explores the trade-offs between different design space dimensions to determine the protocol that best meets application needs.

Unlike the existing work, which focuses on the performance of BFT protocols, ByzzBench targets the correctness of BFT protocols and provides a framework to evaluate the performances of exploration algorithms for detecting bugs in BFT protocol implementations.

We presented ByzzBench, an extensible benchmark framework for evaluating the testing algorithms for Byzantine fault tolerance bugs. The framework offers practical implementation of BFT protocols and provides functionality for developing testing algorithms to control the time, network, and process fault nondeterminism in the executions of test scenarios.

ByzzBench lays the groundwork for benchmarking in this space, although it currently has a limited set of built-in benchmark protocols and testing algorithms. At present, the available benchmark applications include both correct and faulty implementations of PBFT, and the built-in testing algorithms consist of a basic random tester, ByzzFuzz, and an initial version of Twins. Our ongoing efforts aim to expand the range of implemented BFT protocols, particularly those with known bugs, and to integrate state abstraction mechanisms.

The long-term objective of this work is to develop a comprehensive, publicly accessible benchmark suite of BFT protocol implementations to assess the effectiveness of testing and exploration algorithms for BFT protocols.
