Scar: Verification-Based Development of Smart Contracts

Static analysis and formal verification of smart contracts have been very active fields of research. Numerous approaches for detecting bugs and common weaknesses as well as specifying and verifying user-defined correctness properties have been proposed; a recent overview lists 194 works [9]. However, smart contract security is still a problem. There are entire websites dedicated to listing all the instances of smart contract applications being hacked (for example, [16] and [4]). Many of the exploited applications were even audited, prior to the attacks, by companies like CertiK [1], who perform audits consisting of both manual code review and automated static analysis. This indicates that the methods used in the audits are not sufficient to guarantee security.

Although static analysis tools may help to avoid common vulnerabilities, current research shows that they are not sufficient to ensure smart contract application security. For example, Zhang et. al. come to the conclusion that the majority of bugs in smart contracts is “hard to find” and “not machine-auditable” [17]. Only 8% of the vulnerabilities which led to these attacks could have been detected with any state-of-the-art static analysis tool [2]. Moreover, most current vulnerability detection tools “can only detect vulnerabilities in a single and old version of smart contracts” [6]. Formal verification tools go a different route by allowing their users to define the desired properties, and attempting a proof. Unlike with vulnerability detection tools, there is not always a yes or no answer; a proof attempt can always time out. If a proof is found, the program is deemed to fulfill its specification. Examples for formal verification approaches include solc-verify [5], Celestial [3], or VerX [10].

One difficulty with formal verification on the source code level is a lack of abstraction. Some properties, e.g., resource ownership, are easy to grasp for developers, but hard to specify in terms of invariants or pre- and postconditions. To allow more intuitive specification of such properties, model-driven development approaches have been proposed, such as FSolidM [7] or SmartPulse [15]. These approaches target specific platforms and specific properties (e.g., SmartPulse targets temporal properties of Solidity smart contracts).

In this paper, we present Scar, a highly general approach for modeling smart contract applications. The Scar approach consists of three main parts:

• $\mathrm{■}$

  A metamodel of smart contract applications, in which these applications can be defined in terms of their structure, i.e., the contracts, state, and functions they consist of. A type system is also part of the metamodel.

• $\mathrm{■}$

  The ScarML specification language, which serves to describe the behavior of individual functions in terms of pre- and postconditions, and properties of individual contracts in terms of invariants.

• $\mathrm{■}$

  A model-driven process based on formal verification, which leads from the creation of a Scar model to a source code implementation that can be deployed on a specific platform. Formal methods ensure that the implementation is consistent with the model.

This paper is structured as follows: In Section 2, we describe the structure and the semantics of the Scar metamodel and the ScarML specification language.Section 5 gives an overview of the applications of Scar, of its Scala implementation, and about our evaluation. Section 6 conludes.

In this section, we present Scar, a modeling and analysis approach for smart contract applications.

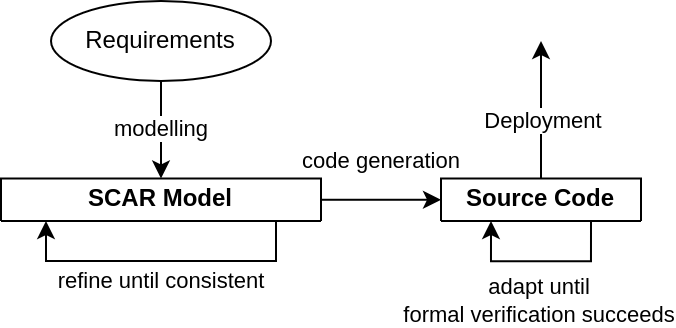

An overview of the intended workflow with the Scar platform is given in Figure 1. After collecting the requirements for an application, developers create a basic Scar model. This basic model defines an application in terms of its smart contracts, their state variables and functions, and the behavior of these functions. The developer then proceeds in two directions: First, they specify application-level correctness and security properties on the model. They conduct the analyses provided by Scar (or by the integration of Scar with other tools) to verify that these properties are consistent with the basic model. Secondly, they use the code generation capabilities provided by Scar to automatically create a source code skeleton in the desired target programming language, annotated with specification in the language of a formal verification tool suitable for that language. They proceed to implement the functions such that the verification tool is able to prove that the implementation is correct w.r.t. the generated specification. This process is inspired by the Design by Contract paradigm [8].

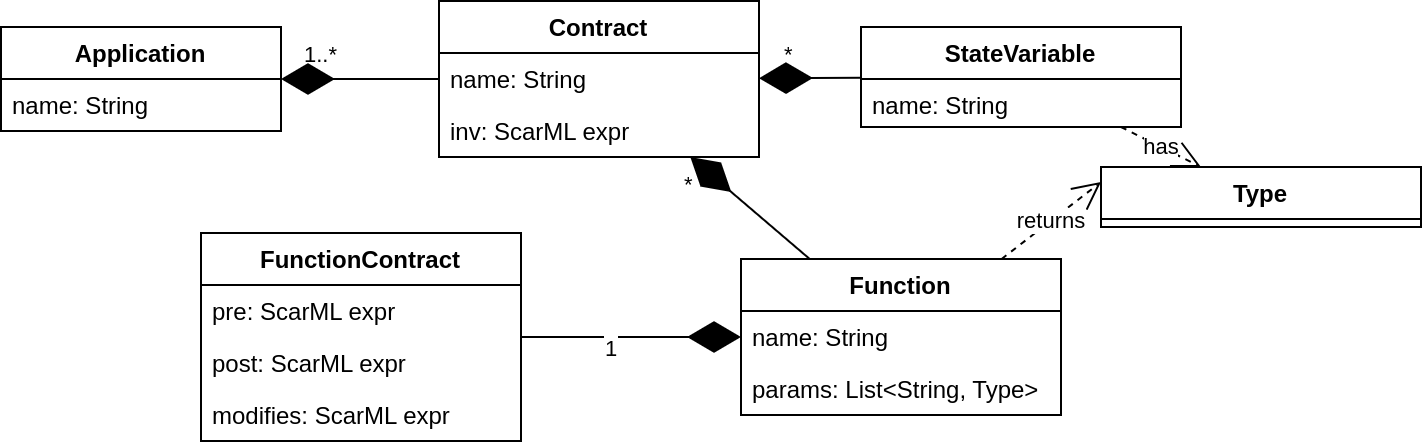

Figure 2 gives an overview of the basic metamodel. The topmost element of the metamodel is the application. It consists of contract elements. Contracts, in turn consist of stateVariable and function elements. State variables have a name and a type. Functions have a name, a list of named and typed parameters, an optional return type, and a function contract written in the ScarML functional specification language (see Section 3 below).

In order to describe the initialization of an application, an initial condition can be specified for each contract in the same specification language. To closely reflect the constructors in smart contract programming languages, the initial condition can be parameterized. The full grammar for expressing a Scar model in text is given in Figure 9.

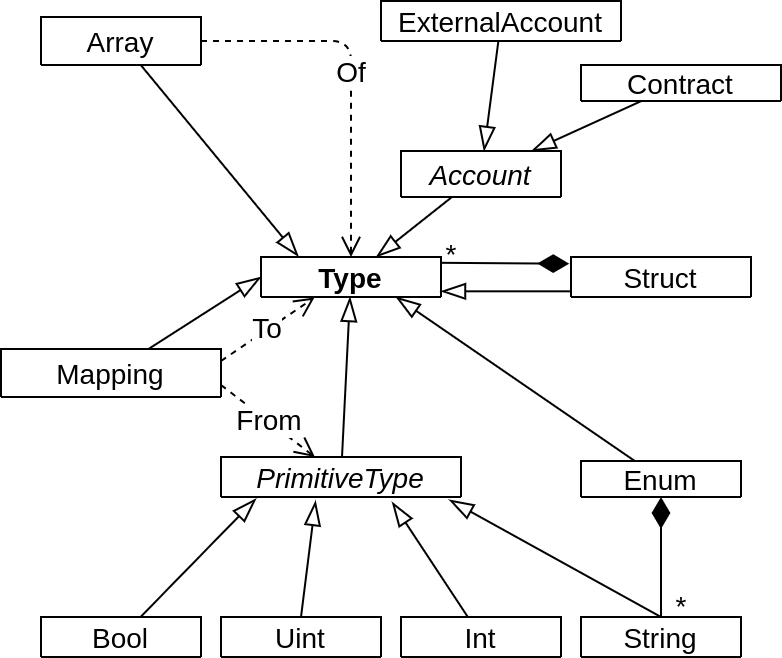

The Scar type system has four primitive types: Booleans (Bool), signed and unsigned integers (Int and UInt, respectively), and strings (String). Accounts (Account) can be either external accounts, representing a real-world entity, or contracts. Both have a non-negative balance, and every account has a unique ID. Each contract in an application defines its own type, which consists of a name, a list of typed and named state variables, and a list of the functions of that contract. Furthermore, there are two composite types: Arrays and Mappings, which map keys of a primitive type to values (whose type is not restricted). In addition, there are two user-defined types: Enums have a String list of constant names. Structs are records with a list of named and typed fields. The type system is visualized in Figure 5.

For specifying the behavior of an application, we introduce ScarML, the Scar modeling language. ScarML is a specification language for contract invariants (for specifying properties of smart contract instances) and function contracts (for specifying the behavior of single functions). Function contracts consist of preconditions, postconditions, and frame conditions. Invariants, preconditions, and postconditions are defined as Boolean specification expressions. Frame conditions are specified as frame expressions.

The full grammar of ScarML specification expressions is defined in Figure 7. Expressions are typed. Terms of Boolean type can be negated and combined with the standard Boolean connectors. Existentially and universally quantified expressions are also allowed. There are two equality operators, reflecting value equality and referential equality.

There is a special operator for evaluating a term in the pre-state of a transaction (\old). Furthermore, there are some constructs that represent the context of a transaction, i.e., the caller, the amount transferred with the call, the system time of the call, and the number of the block in which the transaction is executed. Another domain-specific term is the \hash operator. Furthermore, the specification can contain terms representing a (pure) function call. All Boolean, integer, and string literals are also terms. Terms of Boolean type can be used as top-level expressions in invariants, preconditions and postconditions.

We define the semantics of ScarML in terms of an evaluation function over the state. Invariants and pre- and postconditions are evaluated in a step ${\tau }_i$ of the execution, which consists of the call context $ct{x}_i$ and a state $s_i$ (cf. the description of the trace semantics below). The partial evaluation function $⟦\cdot ⟧$ maps terms of the ScarML specification language to the set of all possible values. It is parameterized with the step ${\tau }_i$ in which it occurs. As an example, the evaluation of a variable is that variable’s state in the context where it is evaluated: $⟦v⟧:=s_i(v)$. The evaluation of mathematical and logical operators is usually just the operation, conducted on the evaluation of the subterms (e.g., $⟦{\varphi }_1+{\varphi }_2⟧:=⟦{\varphi }_1⟧+⟦{\varphi }_2⟧$). The full definition of $⟦\cdot ⟧$ is given in Figure 8.

We say that a condition $c$ is fulfilled (or satisfied) in a step ${\tau }_i$ if ${⟦c⟧}_{{\tau }_i}=\top$. A condition $c$ is satisfiable if there exists a possible step (i.e., a combination of a state $s$ and a call environment) $\tau$ such that $c$ is fulfilled in $\tau$.

As for the semantics of a Scar model, we say that a Scar model m is plausible if

• $\mathrm{■}$

  all contract invariants are satisfiable, and

• $\mathrm{■}$

  all function pre- and postconditions are satisfiable, and

• $\mathrm{■}$

  the initial conditions of each contract type in m are satisfiable, and

• $\mathrm{■}$

  for each contract type in m, the initial conditions of m imply each contract invariant, i.e., every possible state which satisfies the initial conditions must also satisfy every contract invariant.

For a given Scar model, an execution of the application is an infinite trace of steps ${\tau }_0,{\tau }_1,{\tau }_2,\mathrm{\dots }$ where each step ${\tau }_i$ is either an environment step or an application step.

The initial step ${\tau }_0$ is defined in the appInit part of the application specification. In it, the initial set of contracts is declared, along with a list of parameters according to the initial parameter types that each contract requires. After the initial step, the set of known contracts $𝒞$ consists of all contracts declared in appInit, as well as all contract-typed locations within these (i.e., state variables of contract type, as well as contract-typed elements of arrays, mappings, and structs).

Similarly, the set of known external accounts is initialized with all account-typed state variables and account-typed elements of arrays, mappings, and structs.

For ${\tau }_0$ to be valid, the initial condition of each contract in $𝒞$ must be fulfilled.

An environment step characterizes a step in which no function of the application is called, and in which the application state does not change, with the possible exception of account balances. Furthermore, block number and system time can increase.

Formally, an environment step $ta{u}_i$ consists of $ct{x}_i$, the context of the step (which, in turn, consists of $systim{e}_i$, the system time of the step, and $blocknu{m}_i$, the block number of the step), and $s_i$, the state of the application after ${\tau }_i$.

For an environment step ${\tau }_i$ to be valid, the following conditions must hold:

• $\mathrm{■}$

  $blocknu{m}_i=blocknu{m}_{i-1}\vee blocknu{m}_i=blocknu{m}_{i-1}+1$

• $\mathrm{■}$

  $systim{e}_i=systim{e}_{i-1}$ if $blocknu{m}_i=blocknu{m}_{i-1}$

• $\mathrm{■}$

  $systim{e}_i>systim{e}_{i-1}$ if $blocknu{m}_i=blocknu{m}_{i-1}+1$

• $\mathrm{■}$

  $\forall l\in \mathrm{𝐿𝑜𝑐𝑠}:\{\begin{array}{cc}{s}_i>=s_{i-1},\text{l is balance}\hfill & \\ s_i=s_{i-1},\text{else}\hfill & \end{array}$

An application step is the result of a call to one of the application’s functions. Formally, an application step ${\tau }_i$ consists of $ct{x}_i$ and $s_i$ as above, as well as $f_i$, the function that was called to reach ${\tau }_i$. $f_i$, in turn, consists of $calle{r}_i$, the caller of the function; $am{t}_i$, the amount transferred with the function call; $param{s}_i$, the call parameters; $pr{e}_i$, the precondition of $f_i$; $pos{t}_i$, the postcondition of $f_i$; $retur{n}_i$, the return value of $f_i$; and $mo{d}_i$, the set of locations $f_i$ may modify.

For an application step ${\tau }_i$ to be valid, the following conditions must hold:

• $\mathrm{■}$

  $blocknu{m}_i=blocknu{m}_{i-1}\vee blocknu{m}_i=blocknu{m}_{i-1}+1$

• $\mathrm{■}$

  $systim{e}_i=systim{e}_{i-1}$ if $blocknu{m}_i=blocknu{m}_{i-1}$

• $\mathrm{■}$

  $systim{e}_i>systim{e}_{i-1}$ if $blocknu{m}_i=blocknu{m}_{i-1}+1$

• $\mathrm{■}$

  $pr{e}_i$ must be fulfilled in ${\tau }_{i-1}$

• $\mathrm{■}$

  $pos{t}_i$ must be fulfilled in ${\tau }_i$

• $\mathrm{■}$

  $\forall l\in \mathrm{𝐿𝑜𝑐𝑠}\setminus mo{d}_i:\{\begin{array}{cc}{s}_i>=s_{i-1},l\text{ is balance}\hfill & \\ s_i=s_{i-1},\text{else}\hfill & \end{array}$

With this, we now define the semantics $𝒮$ of a Scar model as the set of all infinite traces of valid steps: For a plausible Scar model m, the semantics $𝒮(m)$ is the set of traces $\{\mathrm{T}:={\tau }_0,{\tau }_1,{\tau }_2,\mathrm{\dots }\}$ where ${\tau }_0$ is a valid initial step for m, and each ${\tau }_{i\in {𝒩}_{>0}}$ is either a valid environment step or a valid application step. A visualization of the Scar trace semantics is presented in Figure 4.

In order to deploy an application, a model needs to be converted into platform-specific source code. The main point of our model-driven approach is that properties that were proven to hold for the model also hold for the implementation. Therefore, the conversion from model to code needs to be semantics-preserving: The implementation must be a refinement of the model. This means that for every possible execution of the implementation, when deployed, there must be a corresponding trace in the model semantics.

To show that this is the case, the semantics of the platform and of the verification tool have to be taken into account, and it has to be shown that each execution of a deployed application corresponds to an execution trace of its model. This argument has to be made separately for each target platform.

For the Solidity programming language, code is generated as follows from a Scar model: First, a Solidity version header is prepended to the file. Then, a library contract UTIL containing the user-defined data types is created. Scar structs and enums are translated to their respective Solidity counterparts. For every contract in the Scar model, a corresponding Solidity contract of the same name is created. Since Scar was written with Solidity as the main target language, each Scar type has a directly corresponding Solidity type, making the translation of state variables, function parameters, and return types straightforward. For functions, only headers are generated, which consist of the function name, the translated function parameters, the public modifier indicating that the function can be called from everywhere, as well as the return type.

For verification, we use the solc-verify tool [5] for formal verification of Solidity smart contracts. As in Scar, the main specification elements in solc-verify are invariants and function contracts.

The differences between Scar and Ethereum/Solidity are mainly in the area of data types. Scar supports fewer types than Solidity. Therefore, the Solidity implementation has to be limited to the variables that actually occur in the model to ensure consistency.

However, the Scar types contain mathematical integers, which are not present in Solidity; the Scar type system is not a subset of the Solidity type system. Therefore, care has to be taken to avoid situations where this discrepancy leads to a violation of consistency. To give an example, this could happen if a precondition is not satisfiable over mathematical integers, but satisfiable over Solidity’s machine integers. This would lead to a situation where the function could never occur in the semantics of the model, but it could be called successfully in the implementation. Thus, the implementation would allow more behaviors than the model. This needs to be avoided by the translation, or by additional measures or precautions developers have to take.

In case of the Scar to Solidity code and annotation generation we developed, the implementation is consistent if the generated source code is not changed except for implementing the generated functions and adding helper functions (i.e., functions that cannot be called from outside their contract and which do not change the state in any way). Furthermore, the generated function preconditions and contract invariants must not contain arithmetic overflows, and the implementation must be proven correct by solc-verify against the generated specification (function contracts and contract invariants).

With this, it is guaranteed that the original model was syntactically correct, and that the application state cannot be changed outside of the behavior specified in the model. Thus, every execution of the implementation is also a trace of the model: Model and implementation are consistent.

Scar allows specification and verification of application-level properties of smart contracts. These properties are difficult to specify on the source code level. On the level of a Scar model, however, the relevant specification constructs can be easily introduced in a way that keeps specification concise and intuitive. We have previously developed two approaches for specifying and verifying application-level properties, namely, temporal properties, and access control policies.

In [12], we developed a specification language for temporal properties of smart contract applications. The properties can be specified and verified directly on the model level. If there is an implementation consistent with the model (as described in Section 4), then it also fulfills the temporal properties specified on the model.

In [13], we developed a security approach for smart contract applications, based on the notion of actors and capabilities. Using this approach in Scar, developers can define roles and capabilities on the model level. Capabilities include calling a certain functionality, changing the state of an application, and transferring currency. Our approach makes it possible to specify security policies on the abstract model level, which matches the intuition much closer than the source code level. As with temporal properties, the adherence of a model to a given security specification can be verified purely on the model level, given that the implementation is consistent (in the above sense) with the model.

Scar has been implemented in the Scala programming language. The repository [11] is publicly available. The project’s core is the model package, in which all model elements are defined as Scala classes. The top-level model element is the smart contract application SCApp. The syntax of the .scar model is defined in an antlr grammar. A simplified overview grammar for the basic metamodel is shown in Figure 9. First, the user-defined types are specified, followed by the initial configuration of the application. Then, the contracts are declared with their state variables, initial conditions, invariants, and functions (including function contracts).

We evaluated the Scar approach on a set of example applications, including a bank, an escrow, an auction, and a casino contract, as well as the more complex Palinodia application [14]. While this does not constitute a full evaluation, some conclusions can still be drawn:

First of all, Scar is general enough: Its data types and structural model elements are sufficient to model all desired applications and their basic functionality.

Second, even though the set of examples is not large, almost all syntactic elements of the Scar specification language appear in at least one of the examples. From this, it can be concluded that the modeling language is not overly complex.

Another metric for assessing the quality of a metamodel is how succinct the models are, compared to some reference. In Figure 12, the length of the Scar models of the examples described in this section is compared to the length of the corresponding Solidity code. This comparison should be taken with a grain of salt; it is easy to change the relative length by leaving out or specifying additional properties in the Scar model.

When comparing the length of the Scar models and the Solidity source code the models are based on, it can be observed that the models are always shorter, but often not by much. For very simple functionality, such as assignments or transfers, the Scar specification and the corresponding Solidity code are practically identical. In such cases, Scar’s approach leads to a duplication, and might increase the workload of a developer. On the other hand, functions with such an easy specification can also be implemented without much effort, and in the future, Scar will incorporate functionality for automatic program synthesis, or correct-by-construction code generation.

Scar’s benefits become more obvious when the modeled functionality becomes more complex. This includes properties of array and mapping data types, which can be succinctly specified in Scar. Another recurring case was the use of an array as an index data structure to a mapping, which happens both in the simple bank example and in the real-world Palinodia application. Implementing this functionality is rather complex, requiring tens of lines of code. The abstract property describing the intended behavior, however, is very simple to describe in both cases, and this is reflected in the succinctness of the Scar model.

As for verification, we modeled all applications in Scar, generated a Solidity code skeleton from the model, and attempted to implement it so that verification with the solc-verify tool succeeded. This was possible in most cases. Failures include functionality which relies on hashing; while our implementation is likely correct, solc-verify is unable to reason about the Keccak hash function used in Solidity. In our examples, the implementation did not require auxiliary specification such as loop invariants.

In this paper, we presented the Scar approach for model-driven development of correct and secure smart contract applications. Our approach enables developers to model an application and its behavior in an abstract, intuitive manner. At the same time, it provides a process, based on formal verification, which guarantees that the implementation is consistent with the model.

There are several future research directions. One is the application of the Scar approach to other platforms, languages, and verification tools. We are currently developing methods to apply Scar to Rust smart contracts written for the Solana platform.

Other possible research directions include simulation, and generating runtime checks. Scar’s state transition semantics make it very suitable for the execution with random parameters, and the relevant parts of the application state can easily be highlighted for visualization. This can help developers to quickly build an intuition whether their model actually captures their intention. In cases where formal verification is not successful, runtime checks can be generated from ScarML specification, to ensure that the application fails gracefully in the presence of programming errors.
