Mining GitHub Software Repositories to Look for Programming Language Cocktails

As technology rapidly advances, more and more ways of creating and developing applications surface. Each project uses its own blend of programming languages, libraries and frameworks (that is, its Programming Cocktail [6]). As the development of a project begins with their own unique goals in mind, it becomes important to choose the right combination of these technologies in order to ensure its success. For example, it has been considered that JavaScript¹¹1Mozilla page about JavaScript: https://developer.mozilla.org/en-US/docs/Web/JavaScript is a better choice when it comes to developing a web application than Python, due to faster response times [4]. By analysing Programming Cocktails and their characteristics, many useful statistics can be extracted, such as which combinations of technologies work best with each other, and what particular technology is best suited for a specific task [26]. In summary, the more data obtained about these Programming Cocktail, the stronger and more reliable structural conclusions become. One strong caveat with this approach is the difficulty in obtaining said Cocktails for analysis, as currently there is not a tool that could gather them automatically, and the process to so by hand is inefficient and time consuming.

A possible solution to this problem would be the development of a web-scraping tool to mine software repositories, like the ones hosted on GitHub²²2Official GitHub website: https://github.com. By extracting the relevant data needed to generate a Cocktail Identity Card (further explained in Section 2), one could structurally define the project’s Programming Cocktail. This solution would allow for many Cocktails to be gathered automatically, accelerating further development into their theories and uses. This paper describes the main techniques and results already obtained in this endeavour, while establishing the architectural and functional components of a Programming Cocktail Identity Card extractor, currently under development.

This article is divided in six sections: after the Introduction, Section 2 introduces the main concepts behind Programming Cocktails and Cocktail Identity Cards (CIC). Section 3 provides an overview of Source Version Control Systems (SVCS), with emphasis on Git and GitHub, while Section 4 presents some web scrapping techniques and tools and discusses related work. Following that, Section 5 proposes the architecture and discusses the development of the automatic CIC extractor for GitHub, and finally, Section 6 summarizes the main concepts and ideas proposed, while providing remarks for the next phases of the project.

The development process of an application requires the use of many different interacting components, each with its own purpose. As such, it can be useful to identify and categorize them for organizational and statistical purposes. The concept of a Programming Cocktail was created to aid in these tasks. It can be defined as an agglomerate of computer programming technologies (the Ingredients) that are used to develop a specific software application [6]. The four types of Ingredients are:

Language:

any text or graphic based language used for programming, specifying, scripting, and so on (examples: Python, JavaScript, HTML, SQL, etc.);

Library:

chunks of code that augment programming languages’ standard instructions and commands (the language native statements) with new or additional functionality that increase their expressiveness (examples: BS4, GLib, etc.);

Framework:

language extensions that enhance functionality and provide additional capabilities, while enforcing organizational patterns (examples: Scrapy, .NET, etc.);

Tool:

any software package directly used in programming tasks during the software development process, like editors, debuggers, etc.

The ideas behind Programming Cocktails have been modelled through an ontology that describes their main concepts (see Figure 1, where the dashed blue arrows represent the “subclass-of (isa)” relationship, and the double-headed arrows represent the “is-part-of (iof)” relationship). In the ontology, each Cocktail is associated to a System that is or was under Development. Systems can be supported by Resources, that represent external systems and services used by the application that do not participate directly on its development (such as operating systems, database server runtimes, etc.). Finally, Ingredients support Tasks in the System’s Development, and can represent simple, general tasks, such as frontend programming and full-stack development, or more specialized and distinct ones, like specific database communication, and memory management [6].

In order to store, identify and construct knowledge on Programming Cocktails, the concept of a Cocktail Identity Card (CIC) was created – an example of a CIC can be observed in Figure 2, modelled after a Q&A web application. The graph depicted in Figure 2 models “App1”s Programming Cocktail to formally define its Identity. Moreover, extra data can be added to the ontology to enable more types of analysis, such as risk, costs, cognitive load, etc. [5]. In short, a CIC is a resumed version of the conceptual model’s instantiation, that can provide insights into the components used in the development of an application, and how they relate to each other. It also allows for the evaluation of different aspects of the application’s development, such as the dependency on external resources, possible redundancies, tasks depending on many Ingredients, to name a few. Its continuous use can also support the documentation of a project’s evolution, as long as the CIC is updated and versioned to form a Programming Cocktail history log.

Version control is an important part of software development that consists in the management of changes to various files: programs, documents, models or other artefacts. It is a common aspect of managing a team in charge of large scale projects, offering control over any changes made to the source code through various operations such as edit tracking, corrections and vandalism/spamming protection [8]. As such, Source Version Control Systems (SVCS) were devised to automate, synchronize, better safeguard, and improve efficiency of the entire version control process. By copying, merging and saving all the changes made to files, it is possible to overcome typical inefficiencies and errors in manual source control [16].

Serving as the foundation of any SVCS, a repository is the component responsible to store the data and metadata of each version of a file in a directory, as well as the history of changes made to its contents [14]. This archive is what allows one to switch between different versions, in case the need arises. The location and functionality of the repository greatly differs on what type of SVCS is used:

Local:

in this type (exemplified by Figure 3(a)), as the name suggests, the repository containing all versions is maintained locally in the user’s file system [16];

Centralized:

a single repository is maintained centrally in this type of SVCS (see Figure 3(b)), working in a client-server fashion and storing a master copy of all files and their change history [28];

Distributed:

this type of SVCS is a combination of the previous two types. It locally stores the entire history of the files in the repository, while also being capable of synchronizing the local changes back to a shared repository (Figure 3(c)) [28].

The metadata of the project stored in the repository is another key element for the version control. It refers to additional information about the content of the files and the repository itself, such as keywords, tags, formats, etc. providing an insight of the development context and history, without the need to look directly into the source code [13].

Data mining from the Web means to extract and compile relevant information from Webpages. One of the most used methods to achieve this is Web Scraping, a method that is used to extract data from websites either by directly accessing them through HTTP requests, or via a web browser. While it can be done manually, Web Scraping typically refers to the automated process that uses a Web Crawler to copy data found in the Web and store it locally to be later analysed and processed [22].

Since webpages are written using markup languages, such as Hypertext Markup Language (HTML), much of the desired information is in text format, allowing for the mining process to be relatively fast and flexible. As such, Web Scrapping is considered a solid approach for applications that collect several kinds of metrics, such as price trackers, product review collectors, weather data monitoring, and more [24]. It can be done through different techniques, such as HTML parsing or Document Object Model (DOM) Parsing. The former consists in fetching the raw HTML source code of a desired web page and generating its syntactic token parse tree. Then, a specialized extractor tool or system utilizes the generated tree in order to extract the relevant information contained in the tags that make it up [21]. The latter utilizes the DOM⁸⁸8A platform-independent interface that allows the creation, navigation and modification of elements and content of HTML and XML documents. to create a structural tree out of the desired document. Said tree is comprised of various nodes, each representing an element/individual component of the source document, as well as itself. Within each element, there can be an identifying attribute, sub-elements, themselves elements, or text, where the context is located [23].

The focus of this paper is the proposal of a system able to extract, process, and analyse data from GitHub repositories in order to create Cocktail Identity Cards. Figure 6 shows its architecture.

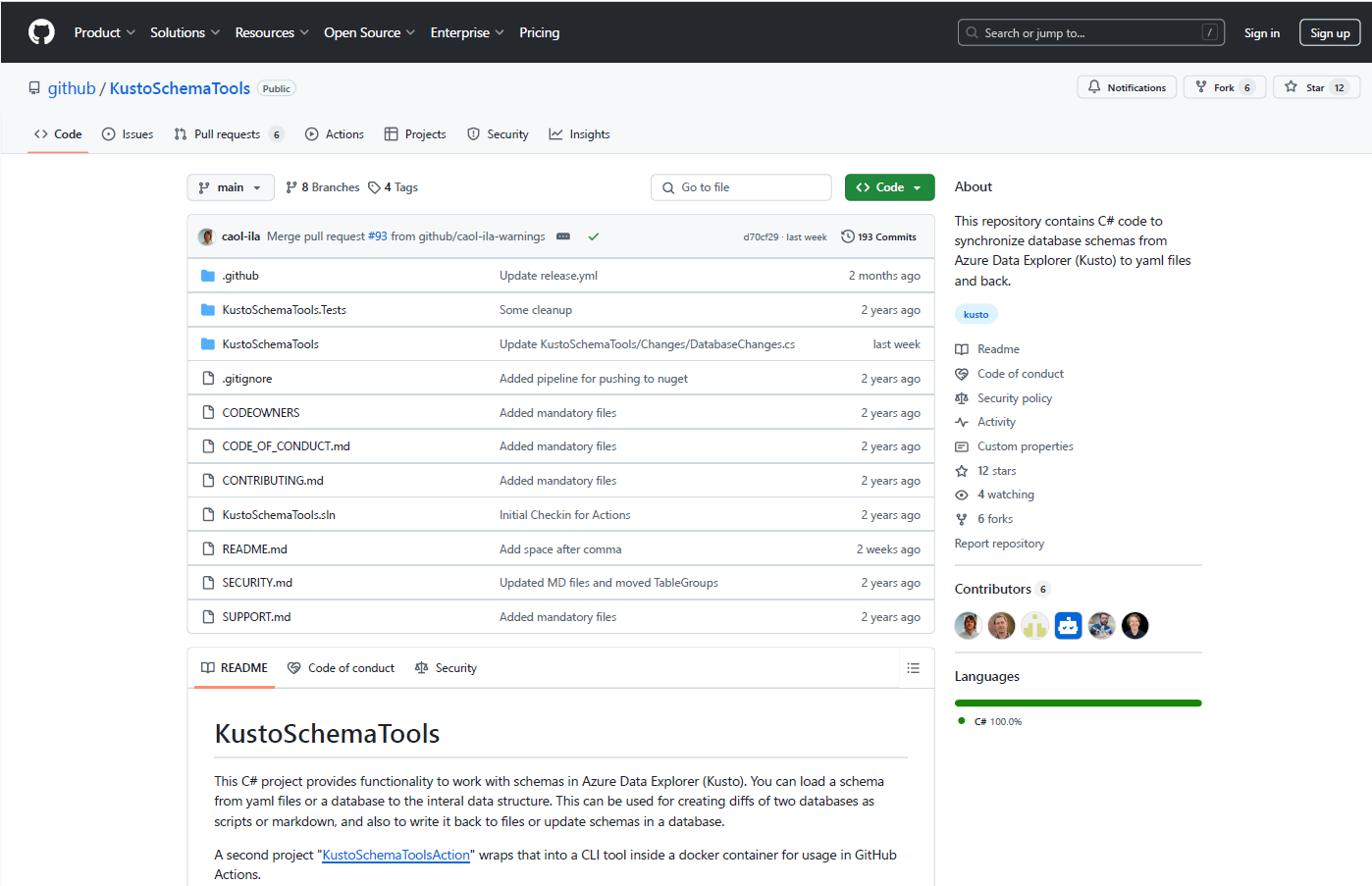

The process of obtaining a CIC begins with the user inserting the target repository’s information into the application, which in turn passes it into the Scraper. The Scraper uses this info to make requests to the GitHub servers in order to retrieve the information of the repository page and begin discovering its Ingredients. The application also utilizes the information to make requests to the GitHub API and obtain additional information on the repository. The relevant data that was scraped is then gathered and passed onto the Ontology Translator. This component will rearrange and transform the data into the ontology’s syntax and format. By following the conceptual model (Figure 1), it generates the concepts, the individuals and their relationships that can be identified in the repository. With the full ontology instantiated, the CIC Generator trims it down into its Cocktail Identity Card, which is then presented to the user.

This paper highlighted the main concepts behind data mining of software repositories, more specifically, GitHub. It also presented the foundations of Programming Cocktails, Cocktail Identity Cards and their ontology-based models. Finally in the paper we proposed, as the main contribution, the architecture of an automated web application aimed at discovering Programming Cocktails and generate their Identity Cards based on data extracted from GitHub repositories. These results will provide a deeper understanding on the myriad of programming technologies commonly present in the development of complex applications. By automating the gathering of Programming Cocktails, more results and conclusions on this topic can be reached, extending knowledge on both software development complexity and evolution.

Currently, the extractor is capable of constructing CICs containing the languages identified in the Github API, while also gathering data from many other sources of information. Such as the README.md file, the overall repository folder structure and some characteristic dependency files.

The next phase of this project will continue with the implementation of the Cocktail Identity Card extractor, taking into account possible paths for discovery, such as the ones presented in Section 5, as well as the development and implementation of methods to analyse and extract Ingredients from the retrieved information. After that, a set of public GitHub repositories will be defined to be used as a case study to test and optimize said methods, as well as identifying other possible additions and options to the process. Beyond what was discussed in this article, other alternative approaches could be explored, such as one based purely on machine learning techniques, focused on the creation and training of a robust identification model. Lastly, some other techniques for automatic discovery of Resources and Tasks are planned to be implemented in order to complete the extraction of Cocktail Identity Cards.
