Bringing Graph Databases and Network Visualization Together

GraphPolaris is a no-code analytics platform for graph analysis. It enables non-data scientists to analyze large and complex datasets without the typically required query scripting and allows exposing the gathered analytical insights directly through effective visualizations. Our inductive exploration workflow engages the user into a visual data analysis dialog, in which an intuitive drag and drop user interface guides the construction of complex analytical queries visually and expressive visualizations give access to on-the-fly result interpretations, thus making graph databases and graph analytics accessible for a wide commercial and research audience.

In this talk, I demonstrated, on the one hand, the current approach towards developing a visual graph analytics platform in GraphPolaris and, on the other hand, contrasted it with the current research challenges.

We briefly report on a 3-years collaboration with the Italian Revenue Agency, about the design of a decision support system for tax evasion discovery. The system combines network visualization techniques with graph databases and exploits some key ingredients: 1) An intuitive and powerful visual language that allows analysts to define suspicious patterns related to fraudulent schemes; the language also handles temporal information and does not require the knowledge of native GDBMS query languages. 2) A graph pattern matching engine, built on top of the Neo4J graph database, which efficiently retrieves and ranks subgraphs from a large network of taxpayers, based on the previously defined schemes. 3) An interactive environment which makes it possible to visualize the results returned by the graph pattern matching engine and to incrementally explore the network of taxpayers starting from them. Additionally, the system adopts artificial intelligence and information diffusion techniques to automatically assign each taxpayer a risk level based on both classical network centrality indices and on new centrality indices that estimate the level of involvement of a taxpayer in suspicious activities.

We gave an overview of graph data models with particular attention to RDF and Property Graphs. We then highlighted two basic ingredients used in the design of graph query languages: subgraph pattern matching and path querying. In the first class the languages of conjunctive queries and unions of conjunctive queries were formally defined and illustrated with examples. In the second class reachability, label constrained reachability, and regular path queries were defined and illustrated. We then defined and illustrated languages which combine both ingredients: unions of conjunctions of regular path queries and the regular queries. We concluded with an overview of the complexity of query evaluation and the complexity of query containment for each language.

The idea of the talk is that there might be an overlap between the graph visualization area and the graph query optimization area. Both graph visualization tools and query optimizers often require graph pre-processing, such as summarization, algorithms to figure out the structural properties of the graph. Visual rendering algorithms require it to highlight the most salient nodes and patterns in the graph while the optimizers use it to enable cardinality estimations for generating efficient query plans. It remains to be seen whether similar summarization or sampling algorithms can turn out useful for both kinds of tools.

Visualization is a very popular and central task in graph processing pipelines. When the input is a large and complex network, computing an effective visualization is very challenging. The main steps involved in the creation of large-scale graph visualizations are usually simplification, layout, rendering, and interaction. We gave a brief overview of the methods and techniques used to address each of these steps. Particular attention has been paid to node-link layouts and to force-directed methods for computing such layouts. We also presented a vertex-centric multilevel force-directed algorithm to compute node-link layouts on a cloud computing platform.

The presentation was about what improvements were made in the graph drawing library “yFiles” in response to requirements by real world users working with graph database visualizations. With the help of conceptually simple layout techniques, the usefulness of visualizations for graph database exploration purposes was improved dramatically. By incorporating information about different semantic types of nodes and edges in the diagram as stored in the graph database, the algorithms were able to improve the arrangement in the diagram. Also, as an additional improvement, certain patterns that frequently appear in query results were specifically highlighted in the diagram, matching the users’ expectation of the query results. For this, paths, stars, chains, and parallel structures were detected and treated especially by the layout algorithm. These improvements are available for various common layout algorithm implementations in yFiles.

Data catalogs are metadata and data management systems that inventory and organize data within an organization. Knowledge Graphs are a means of integrating data and knowledge at scale where concepts and relationships of a domain are manifested in the form of a graph. Thus a data catalog can be powered by a knowledge graph.

A question is how can Network Visualizations help accomplish common tasks in a data catalog such as business glossary definition, ontology engineering, impact analysis, root cause analysis, sensitive data impact. In this presentation, I highlight challenges and opportunities when attempting to integrate Network Visualization with a data catalog powered by a knowledge graph.

We gave a brief ad-hoc presentation/demo of Neo4j Bloom, a domain-agnostic, low-code, ad-hoc graph visualization and exploration tool for data experts, data scientists, and data analysts.

We gave an overview of three graph query languages used in practice: SPARQL, Cypher, and GQL. The talk illustrated how the basic ingredients for graph query language discussed in Part 1 manifest in these graph query languages. This demonstrated that these languages – even if designed for different data models – are very similar in their capabilities. Still, we pointed out corners in which the languages differ slightly in their capabilities or put different emphases. Specifically for property graph query languages, we highlighted how they make use of the visual benefits of the ascii-art approach used in the graph pattern sublanguage and how it contributes to the adoption of these languages.

This talk introduces evaluation studies in graph visualization. It focuses on qualitative evaluation with users. Evaluation studies with users are important when evaluating real value of application-motivated visualizations such as medicine, biology, finance. The visualizations need to be of high quality both from perceptual side and need to fit to the user’s task and experience. Based on author’s experience, and related literature in conducting evaluations of visualizations for real applications, the talk presents main steps, guidelines and pitfalls in conducting the studies. The talk discusses how the choice of tasks influence the evaluation, the pros/cons of methodological choices such as think-aloud protocols, which measures should be used for the evaluation, what is the value of free feedback for the evaluation. Finally, the talk presents how pitfalls from ill-posed evaluation questions can be turned into interesting research questions.

This group discussed evaluation and the notion of usefulness of network visualizations. We observe a socio-technical phenomenon when it comes to the wow factor vs usefulness of network visualizations. Our discussions led us to the following realizations:

• $\mathrm{■}$

  We need to understand the diversity of roles around the work of network data management and network visualization.

• $\mathrm{■}$

  Bridging the gap between network visualization and graph database communities should be a win-win for both communities. Network visualization should support graph databases. Graph databases should support network visualization

• $\mathrm{■}$

  It is important to study how much network visualization can help in each role.

• $\mathrm{■}$

  There are specific interactions between the roles, which are not fully understood. How can network visualization help for those interactions?

• $\mathrm{■}$

  The network visualization space needs to be more fully studied, in the light of evaluation and usefulness.

The main topics we discussed were the following:

Originally constituted as a group to work on use cases and applications, our initial discussions quickly showed that before we could talk about concrete use cases, we needed to lay foundations for our common understanding of the potential interplay between graph databases and network visualisation. While large potential for synergy and cross-pollination between the two areas is quite evident, we began by structuring the involved aspects and expectations in order to derive a conceptual framework based on which we could better identify gaps and opportunities of this interplay.

Our discussions quickly converged to a network visualisation in which we tried to cover the interplay between data assets and involved stakeholders and entities when graph visualisation is used in interactive interfaces for graph databases. Figure 1 shows the intermediate result that we came up with and which we used for the further discussions. While probably omitting some relevant aspects, it helped us to structure the discussion and to create a common mental map of the interactive graph database visualisation process.

With this conceptual model, we could now analyze the role as well as the aims of the user. The conceptual model then reveals requirements as well as the potential impact of graph visualisations, which in turn led us to a first characterisation of challenges and opportunities.
As main gaps and challenges we identified

• $\mathrm{■}$

  A lack of appropriate graph visualisation and navigation methods that are tailored towards users of graph databases

• $\mathrm{■}$

  A lack of methods for projection in graph database systems (i.e., mapping from data assets to graph visualisation), incl. aggregation / abstraction of the graph structure

• $\mathrm{■}$

  Missing integration of concepts from graph database and visualisation communities into one coherent concept

• $\mathrm{■}$

  A definition of “usefulness” for graph visualisation in the graph database context and measures to evaluate it, and in general evaluation of metaphors for specific data/use cases/tasks

• $\mathrm{■}$

  Accessibility of meta-data available in the database system for the visualisation tool, and a systematic understanding of visualisation patterns for meta-data integration

• $\mathrm{■}$

  A lack of annotations for useful domain knowledge about graph topology in database schemas

As opportunities we see both significant potential improvements in practice, in particular regarding data handling, user experience, and more direct interfaces, as well as space for methodological work and new applications for research. These opportunities might concern different stakeholders differently depending on their role – user, developer, product owner, vendor – and area – visualisation, graph databases:

• $\mathrm{■}$

  Development of new graph visualisation and interaction techniques tailored towards graph databases. These can target the layout, encoding, and navigation, but also abstractions, e.g. for overview visualisation and subgraph comparison.

• $\mathrm{■}$

  Availability of currently untapped data sources and use cases for research, as there are huge and diverse graph databases with context available.

• $\mathrm{■}$

  Users can start with an improved out-of-the-box visualisation and apply ready-made templates to common use-cases with subsequent incremental improvement.

• $\mathrm{■}$

  New queries can be automatically derived by interacting with the visualisation as a more intuitive interface than current solutions.

• $\mathrm{■}$

  Query result visualisation has a large potential for improvement (leveraging meta-data and additional data stored with and in the database).

• $\mathrm{■}$

  An efficiency dividend can be achieved through simplified analysis processes.

• $\mathrm{■}$

  Visualisation system developers or vendors can increase the degree of automation and abstraction of their visualisation tool box and simplify its usage.

• $\mathrm{■}$

  Visualisation domain developers can produce domain-specific visualisations in shorter time due to an improved visualisation tool box.

• $\mathrm{■}$

  DB system developer/vendor can improve functional support of visualisation applications (by offering e.g. more powerful graph projection or additional graph schema annotation), and improve performance of query processing for visualisation applications (by leveraging extra knowledge about the application).

In order to structure our discussion on use cases, we made high-level distinctions of these with respect to the following questions: 1) Who tells the story – user or system? 2) What is the user’s level of knowledge on the database content? 3) What is the goal – exploration, answering specific questions, or creating visualisations to tell a story?

Building on these discussions, we identified connections to the discussion topics in other groups, for example for the definition and evaluation of usefulness, the roles and types of audience involved, possible exploration patterns, as well as visual query support and corresponding visualisation metaphors. We plan to put our model to the test by creating instantiations of it for specific application use cases that we are familiar with, and to refine it according to the experience we gain in that process.

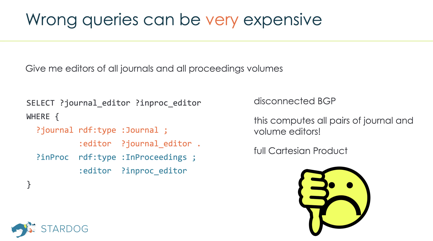

Working group 3 studied (1) the problem of visual graph querying which aims to assist user to formulate effective and efficient graph queries, and (2) the problem of visualizing graph query results for effective summarization, aggregation and human comprehension.
