Interactive Visualization for Fostering Trust in ML

Nonlinear dimensionality reduction (NLDR) is a branch of the wide machine learning field. NLDR is essentially unsupervised, which means that it is used to find something (information) in data, but we do not know in advance what kind of information. Consequently, even if it is easy to agree on the general principle of reducing the dimension of data without losing too much information, it is very difficult to agree on a scientific measure of how this loss is evaluated, leading to hundreds of NLDR methods. None of them can be objectively considered as better than others; they all reflect a specific user’s point of view. Popular methods are often those that come with an efficient implementation, rather than being chosen for the quality (seen by the user) of their outputs.

This talk insists on one of the users’ point of views, often underestimated in the literature: the compromise between a global and a local mapping of the data. We show that multiscale methods may produce much more interesting representations, with an additional computational cost that can be limited with the development of fast yet accurate algorithms.

This talk began with the observation that trust in AI systems encompasses trust in (1) the model – that it is accurate and just, (2) the decision maker – that the human-in-the-loop standing between you and the model decision or prediction has your best interest in mind, and (3) oneself – that you are equipped to make informed decisions. The technical aspects of trust in AI systems are actually only a small part of the story. Improving model accuracy and quantifying and mitigating bias in models can serve to calibrate trust. For visualization researchers in particular, this begs the question: what is our role? Where can we have impact? The talk asserts that this is a challenging socio-technical problem, requiring a suite of methodologies and frameworks that are not especially common in our community. I conclude the talk with a reference to a paper[1] that leverages a valuable socio-technical perspective to coin the concept “human-centered explainable AI” abbreviated HCXAI. This paper introduces important frameworks (including critical technical practice, reflective design, value-sensitive design) that can serve as a starting point for visualization researchers to expand their tool belts to include critical socio-technical frameworks to inform next steps addressing trust in AI through interactive visualization.

Trust in the information provided is often cited as one of the key challenges to fully integrate AI-driven systems into high consequence decisions. However, there rarely exist a clear definition of the concept, what can be done to influence trust, and even whether the implicit goal to increase trust is always appropriate. The HCI community is often asked to mediate between the various stakeholders and visualization in particular is seen as the ideal conduit to convey both subjective and objective information. However, the amalgamation of human and social aspects with more technical concerns on correctly conveying unbiased information makes formulating a clear research perspective difficult. Here we argue that the general notion of “trust” should be thought of as two related but fundamentally different concepts: relationship-based trust and evidence-based trust. A typical example of the former is the trust one places in an car functioning, which is rooted in the believe that an engineer certified the system rather than in any personal knowledge of the mechanics. Conversely, evidence-based trust is based in factual information, i.e., statistics on past performance or uncertainty bounds, analyzed directly. In both cases, the overarching goal should be to correctly calibrate trust to avoid both unfounded over-trust, for example, based on the social network echo chamber, as well as unjustified skepticism. This perspective will first define both concepts, show how they implicitly or explicitly align with prior arguments, and that they lead to fundamentally different research challenges. Subsequently, the perspective discusses priority research directions aimed at calibrate both form of trust in AI-driven system, how the different notions interact, and most importantly areas where unfettered research may raise ethical concerns. While this perspective grew out of discussions in the HCI community addressing many of the challenges will require convergent research in cognitive science, machine learning, ethics, visualization, and many others.

Many AI systems make claims that specific design choices enhance trust or serve to calibrate trust. However, interface design choices are not neutral with respect to trust. There is inherent duality – that the same design choice may enhance trust in some cases, while simultaneously detracting in others. This group conceptualized “trust junk,” analogous to “chart junk” in visualization, i.e., design choices intended to enhance trust without any specific connection to data, model, or the nature of the decision.

Consider AIs that utilize social information, e.g., “5 others in the organization have accepted a recommendation today.” This choice may increase trust in the AI having social endorsement by others; however, this may also be used to create unfair social pressure and manipulate choices of the user that serve the interface creators. The group expanded these examples to consider different kinds of “knobs,” which represent different design choices that can be made in the creation of an AI system. These include choices about which datasets are modeled, how the outputs of the system are represented to users, and what options users have for interacting with the outputs, the model, or the data. Turned in one direction in a given context, these knobs may enhance trust in the system. When considered from an adversarial perspective, these choices could also be used to mislead users or to promote unwarranted levels of trust in a system. We construct a framework of these knobs and assert that understanding this space necessitates a sociotechnical approach; concrete generalizable interface guidelines may not yet be made.

Trust assessment during the data analysis process is a challenging task. Only if stakeholders have trust in the used data, algorithmic, and visual-interactive components, the results will be accepted, relied on and applied. In an ideal system, the trust of the user could be observed (measured), and the system could be adapted to increase trust where it is lacking, e.g., by providing additional information, explanations, or summarizations. However, trust is dynamic and emerges due to many influencing factors, both from the data analysis system designs, as well as personal factors. Additionally, learning effects, change in the user tasks, or socio-cultural influences complicate trust calibration. To date, several trust scales exist, but it is hard to assess how technological aspects of ML/AI systems affect trust and how to carry out empirical evaluations that isolate the effects that changes in technology have on trust.

Related work in Human-centered AI and Human-computer interaction suggests frameworks for compartmentalizing trust into cognition-based and affect-based trust. We combine two earlier frameworks from Madsen & Gregor (2000) [1] and Gulati et al. (2019) [2] and add socio-cultural trust factors that were not considered in the discussion. We scrutinize these frameworks considering particularities of AI/ML, Visualization and Interaction. Overall, we propose the following aspects/constructs of trust:

• $\mathrm{■}$

  Cognition-Based Trust

  • –

    Perceived risk

  • –

    Benevolence

  • –

    Competence

  • –

    Reciprocity

• $\mathrm{■}$

  Affect-Based Trust

  • –

    Faith/Confidence

  • –

    Personal Attachment

  • –

    Personality (locus of control, risk-averseness, etc.)

  • –

    Experience (past experiences)

• $\mathrm{■}$

  Social and cultural trust (environmental and contextual factors)

  • –

    Peer Influence

  • –

    Crowd Behavior

  • –

    Cultural Norms

We complement our work by discussing which possible proxies, indirect measures that allow us to approximate trust scores, we can use to assess these aspects, and elaborate on which proxies are most suitable for each trust aspect/construct. The measures outlined are questionnaires, EEG, Eye-Tracking, Face expressions, movement, recognition (e.g. FACS), Galvanic skin response (e.g. glove), Interaction logs, Feedback from users, Voice recognition, changes (e.g. shimmer, jitter, pitch, balance via GeMAPS), Model questioning users, Games and A/B-Testing. Future work has to prove their applicability for this challenging task.

We finalize with a discussion on how scalable and how good proxies these measures are for trust, and we outline the next steps in utilizing this knowledge for carrying out empirical evaluations and during the design process of Vis/ML/AI-based systems.

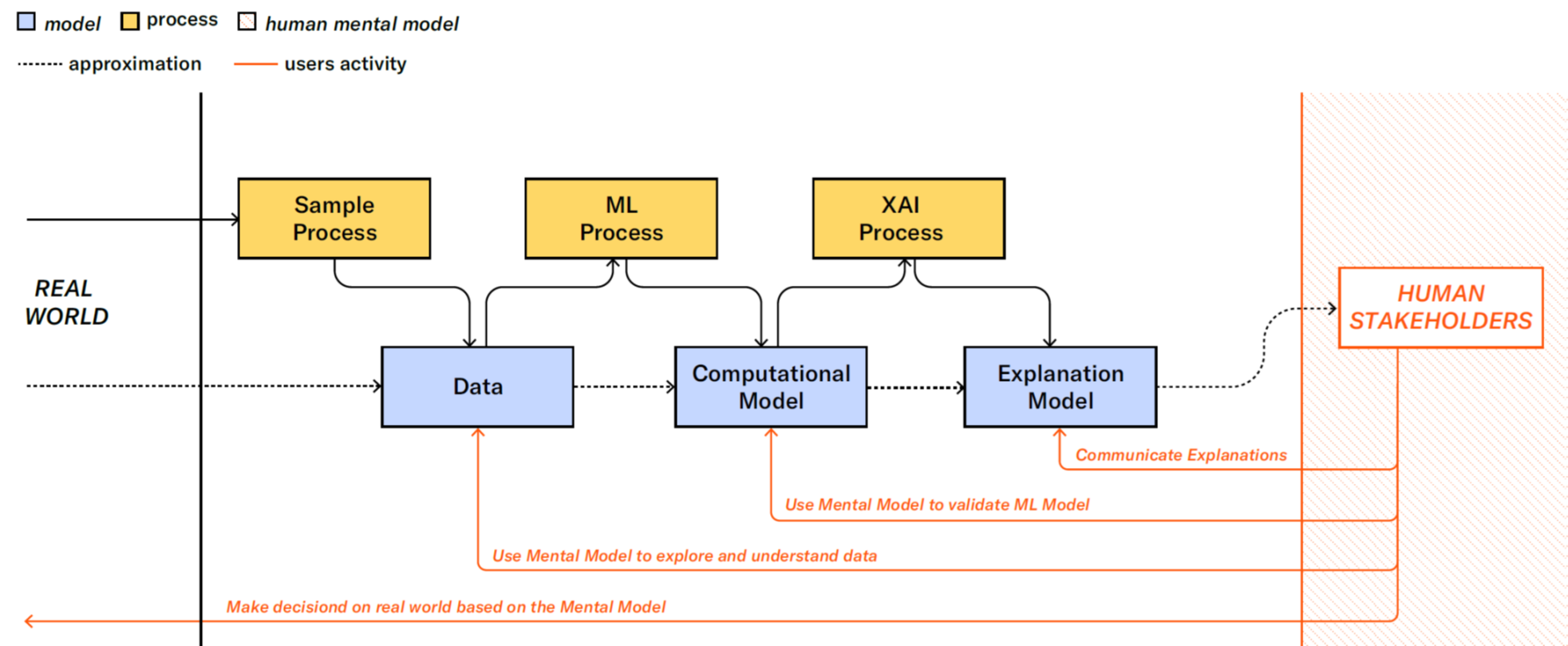

Currently, trust in Machine Learning applications is an implicit process that takes place in the mind of the user. As a result there is no method of feedback or communication of trust that can be acted upon. Trust differs from mere ability to inspect the model and from a model’s claimed confidence in its predictions. frameworks that support such aspects are not sufficient to support trust. We argue that trust needs to be considered as a first-class citizen in the workflow of developing and using machine learning models. We present a formalization of trust flow and externalization as part of interactive machine learning workflows for analysis and for decision-making. The formalization differentiates several user roles in exploring machine learning models at different workflow stages and their corresponding opportunities for explicit communication of trust targeted at these stages. The formalization enables construction of interaction modes and interfaces to help users to efficiently build and communicate trust in ways that are appropriate for a given stage in the analytic process. Moreover, the formalization differentiates the roles of model exploration and trust communication of the user as well as differentiating user trust from a model’s internal probabilistic representations. We formulate several research questions and directions arising from our framework which include

(a)

typology/taxonomy of trust objects, trust issues, and possible reasons for (mis)trust;

(b)

formalisms to represent trust in machine-readable form;

(c)

ways for users to express their state of trust;

(d)

ways to explore and develop trust over models and their different aspects using visual interactive techniques;

(e)

ways to facilitate the user’s expression and communication of the state of trust using visual interactive techniques.
