Integrating HPC, AI, and Workflows for Scientific Data Analysis

• $\mathrm{■}$

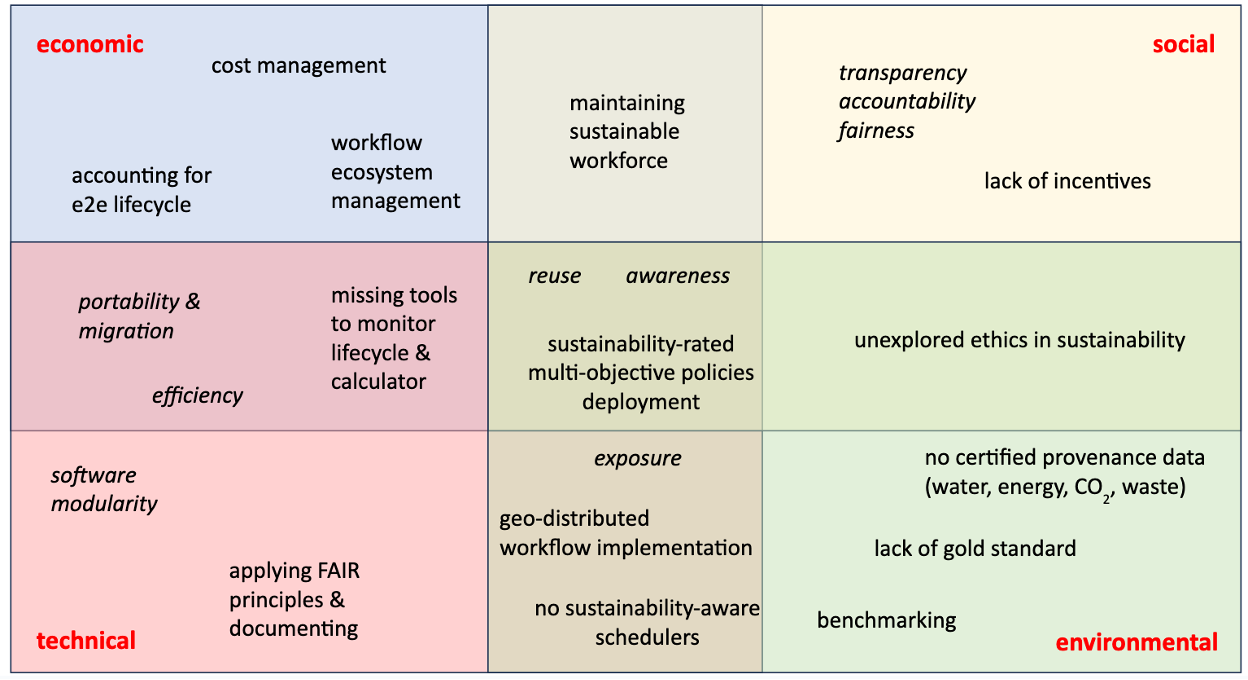

  Environmental Sustainability. The main challenge we identified under the environmental sustainability dimension is how to get certified provenance data to quantify or estimate the impact on the environment and natural resources, i.e., provenance data about CO2 emissions, energy or water consumption from authoritative sources [5]. The lack of traceability metadata makes it very difficult to know, for example, where the electricity comes from and distinguish between renewable vs non-renewable energy, clean or green energy powering some given HPC+AI workflows [6]. Similarly, reliable and continuously up-to-dated data about water-usage, gas emission or waste management is currently missing, not detailed enough, or not trustworthy and we cannot drill-down and quantify the impact of a single workflow on the environment (or drill-up for a set of workflows of a given application) [7]. As a consequence, there is a lack of benchmark and a lack of gold standard that could be used as a reference for virtuous practice. More generally, this leads to a lack of exposure and awareness regarding environmental impacts of the workflow lifecycle.

• $\mathrm{■}$

  Social Sustainability. A central challenge is the lack of incentives individual researchers, service providers, organizations, and funders have for nurturing sustainability. This is especially true for researchers, who are incentivized to experiment, analyze, and publish results. Nowhere in the academic process that relates to tenure and promotion are sustainability concerns accounted for, such as making computing choices that are economically and environmentally sustainable. Similarly, funders have little incentive to promote sustainability as they do not directly suffer the consequences of poor economic or environmental choices. Another challenge in the social realm is making choices that maintain a sustainable workforce. For example, a researcher has no incentive to use the workflow package or machine learning (ML) software with the largest market share or that is most widely used and supported at a computing center. If more researchers stayed with market share and understood platforms, it is easier on research computing staff to support fewer packages, as well as software that is maintained with security patches and bug fixes. The incentives for such dimensions are with service providers, who have few ways to motivate researchers to factor other variables into their choice of research computing components. One way to promote social sustainability values, including transparency, accountability, and fairness, is to embed these principles in shared community values. The US National Science Foundation (NSF) funded EarthCube initiative brought together geoscientists and cyberinfrastructure builders to build innovative tools and invigorate the community with advanced computing techniques. The EarthCube community, led by leaders elected by the membership and a funded coordination office, wished to imbue the context of the collective work with shared principles. The principles included Responsibility, Dependability, Service, Openness-Transparency (among others). By defining the shared values, EarthCube was able to tune strategic actions to model and encourage these seemingly intrinsic qualities. This led to impactful work as shown in the recently released EarthCube retrospective [8].

• $\mathrm{■}$

  The Technical sustainability of HPC+AI workflows can be considered in (at least) three ways: (1) that of the HPC system itself, (2) that of the AI models used as tools and constructed by the workflow, and (3) that of the workflow itself when considered as research software. Because current HPC systems are short-lived and highly specialized, HPC workflows are usually tailored specifically to the systems where they will run, and this causes problems in workflow portability (running a workflow on another current HPC system) and workflow migration (running a workflow on a future HPC system).

• $\mathrm{■}$

  The Economic Sustainability relates to cost management of HPC+AIworkflows, as well as the entire workflow ecosystem management, accounting for the end-to-end lifecycle of the workflows. Some of the above challenges can be dependent (correlated or anti-correlated). Therefore, corrective actions may have various indirect positive or negative impacts beyond what we can expect and there is not yet a principled way of estimating and predicting the collateral effects of improving one dimension or one objective over the others. For example, if we decrease the energy consumption of a workflow the overall cost can however be increasing; loose-coupling of softwares can have a positive effect and facilitate reuse, but may also increase the computation cost [9]. Nevertheless, we should not compromise in making research progress.

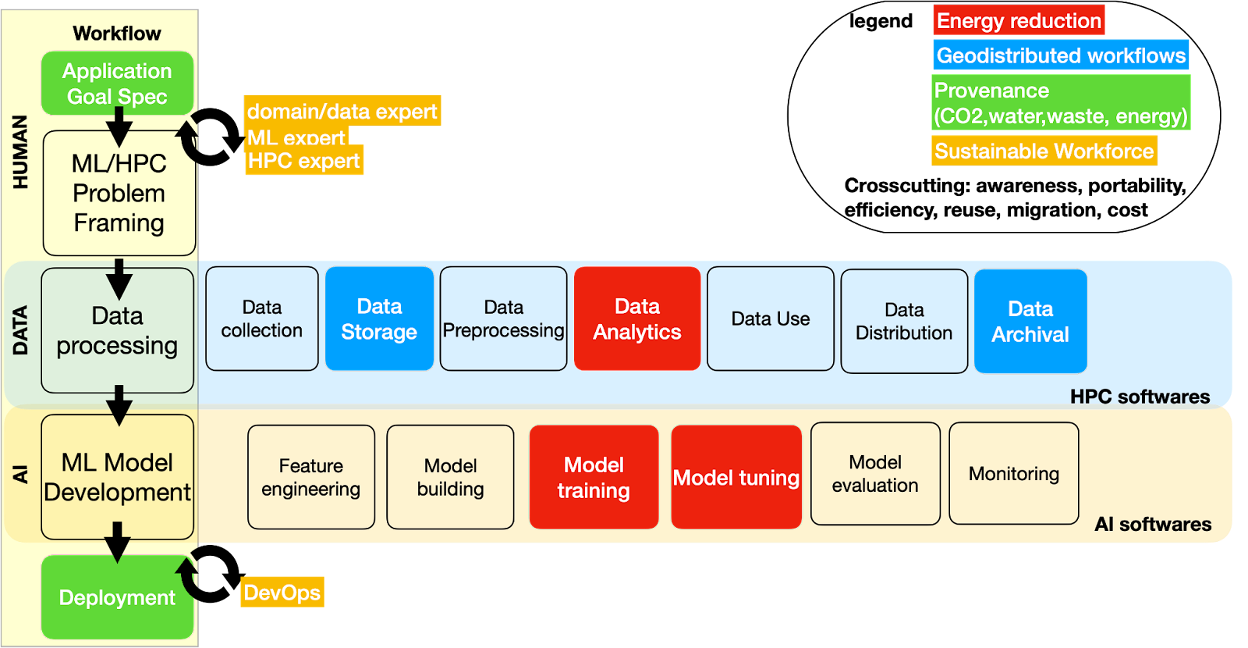

Finally, we attempt to address the third question “Can we pinpoint where the sustainability challenges are predominant in the workflow lifecycle?” We decompose the workflow lifecycle into several stages and consider the human, data, and AI planes (Fig. 2) [10].

Although it is not represented as a cycle, the workflow lifecycle is iterative and can have multiple feedback loops. The data processing block can be decomposed into multiple blocks (data acquisition/collection, storage, preprocessing, analytics, use, distribution, archival), and again not necessarily executed in a sequential manner and some blocks (such as archival) may not be present in some workflows. Similarly, the ML model development block can be decomposed into various blocks such as feature engineering, model building, training, tuning, validation and exec monitoring. Data and AI planes are predominantly supported by HPC and AI softwares respectively. Our exercise consisted in mapping and locating the challenges we identified previously into the generic workflow lifecycle because all the challenges may not be not occurring at every stage and when they occur they may not be predominant or have a critical impact on sustainability. Empirical experiments will surely be needed to verify our assumptions here.

For example, energy consumption could be reduced essentially targeting the data analytics stage with more frugal methods, in particular during model training and tuning stages. Ensuring that the workforce (such as domain and data scientists as well as Devops engineers) is sustainable is important during the early stage of the application domain and goal specifications for designing the adequate workflow and framing the ML on HPC problem and also during the deployment as well as continuously gathering reliable data characterizing the environmental impact of the workflow (energy, gas emission, etc.). Reallocating computing resources or data storage (vicinity) can save energy and reduce technical or environmental costs related to computation, data storage and archival.

A follow-up of this preliminary discussion can be to identify the leverages in the workflow lifecycle where a small improvement of some targeted tasks can have a huge positive impact on the sustainability dimensions. Next, we could define Whatif scenarios and experiments to simulate the gain/loss in terms of sustainability and support sustainability-rated multi-objective policies.

The following are some use cases that drive sustainability concerns:

• $\mathrm{■}$

  Physical limits: some sites cannot bring more power than they are designed for, therefore it is required to do power-throttling and minimizing power consumption to conduct computation. Both this and the next use case mean doing more (computation) with less (energy)

• $\mathrm{■}$

  Economically-driven: energy costs a lot of money, running an exascale computer costs even more than buying it. Therefore it is required to be mindful when leveraging these computers to get most out of large scale computations.

• $\mathrm{■}$

  Save the planet: many executives are making pledges to make their corporations net-zero or even net-positives. It is non-trivial to achieve this and in many cases it means payments towards clean energy. It entails both upstream and downstream explorations.

• $\mathrm{■}$

  Broader good: there is a public pressure for less consumption and for clean energy use. HPC and AI computers consume lots of energy, so being mindful to use clean energy most of the time is one way to alleviate the problem.

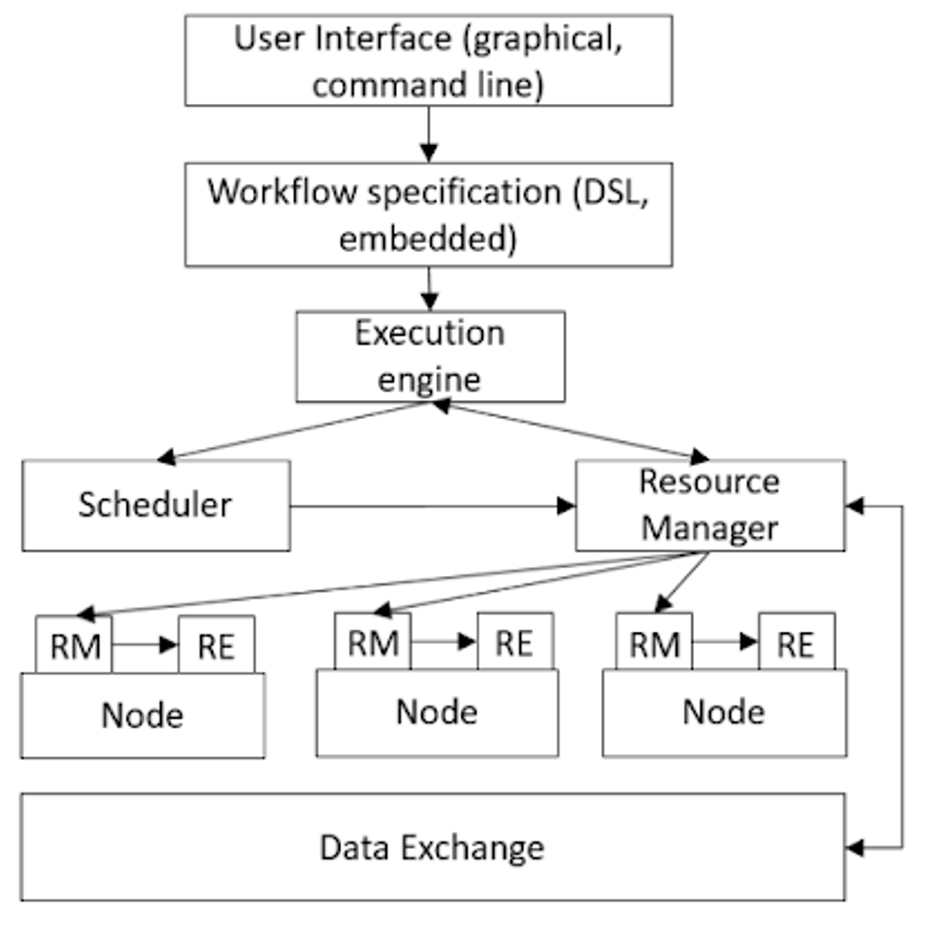

To date, no established reference architecture for scientific workflow systems exists. Furthermore, there neither exists a characterization of the precise functionalities a workflow system should encompass nor where it should interface (and with which API) with other components of a distributed infrastructure. The general components of a distributed infrastructure steered by a workflow system are depicted in the idealized architecture shown in Fig. 3. From top to bottom, these include:

• $\mathrm{■}$

  User interface. While many systems target developers and favor command line interfaces [1], others offer comprehensive graphical interfaces using the DAG-structure of workflows as metaphor [2]. Graphical interfaces often are also associated with access to libraries of available workflow tasks or control structures of a workflow language [3].

• $\mathrm{■}$

  Workflow specification. Many systems use specific domain specific languages for specifying a workflow, which might resemble programming languages [4] or come in the form of flat file formats [5]. Other systems offer workflow functionality as extensions to a host programming language without having a proper syntax [TBA+17]. Workflow specifications describe an abstract workflow; during execution, tasks defined abstract workflow often lead to multiple physical instances.

• $\mathrm{■}$

  Workflow engine. The workflow specification (or workflow program) is executed by a workflow engine, whose main purpose is the control of the dependencies between workflow tasks. As such, the workflow engine, at every stage of a workflow execution, must be able to determine the set of currently executable tasks, which requires some form of bidirectional communication with the scheduler to be informed about finished tasks. At this stage, typically also the compilation of the abstract workflow into a physical one is performed. In dynamic workflow systems, where the set and structure of tasks is data dependent, the communication must include further aspects, such as number of files in a directory (for scatter operations) or intermediate data files themselves (for conditionals) [6].

• $\mathrm{■}$

  Scheduler. The scheduler is informed by the workflow engine about the set of ready -to-run tasks and determines their assignment to the set of available (virtual) compute nodes. To this end, it communicates with a resource manager to obtain free resources and to access the characteristics of free nodes (e.g., main memory, accelerators etc.). Schedulers typically are not individual components, but their functionality instead is included in that of another system (see below).

• $\mathrm{■}$

  Resource Managers and Runtime Environment. Resource managers have two different purposes (RM). At the global level, the RM oversees the status of all registered nodes together with their functional characteristics and offers controlled access to them for its clients, possibly with an associated QoS. At the local level, each node runs an instance of the RM to control the node itself and to provide a local runtime environment (RE) for workflow tasks (such as Docker or Singularity containers).

• $\mathrm{■}$

  Data exchange. Finally, the tasks of a workflow execution must exchange data along their data dependencies. There are different ways how this can be achieved. In a streaming setting, all data exchange is handled through the network [13]. Batch-processing often assumes availability of a shared data space, for instance provided by a parallel file system like Lustre [21] or CePH [7].

However, concrete systems often deviate heavily from this architecture. For instance, scheduling usually is not implemented as a separate component, but instead is performed inside the workflow engine or by the resource manager – and sometimes by both [18]. Systems with graphical user interfaces might not have an explicit language or format to express a workflow specification but instead directly interpret the workflow graph. Workflow engines are typically tightly coupled to a workflow specification language and not capable of executing any other specifications; moving from one system to another therefore requires program translation. Systems trying to co-optimize task placement and data locality need more expressive interfaces to resource managers, schedulers and file systems and explicit ways of manipulating placement [14]. Furthermore, there is no agreement on the interfaces between components, such as between workflow engines, schedulers, and resource managers or between a graphical user interface and a workflow engine. Even at interfaces where standards exists, such as POSIX for file access or DRMAA for resource managers, these are not implemented by all systems. For instance, HFDS is not Posix compliant, and Kubernetes does not support DRMAA.

The role of AI in scientific workflows and HPC is increasingly prominent and multifaceted. Here is a summary of the role of AI in these both of domains:

1. 1.

   Enhancing Scientific Workflows:

   • $\mathrm{■}$

     Workflow Optimization: AI techniques, such as reinforcement learning [19, 40], can optimize the execution of complex scientific workflows.

   • $\mathrm{■}$

     Discovering Similar Workflows: Semantic code search powered by AI can assist researchers in finding workflows that are functionally or structurally similar to their own. Semantic techniques [31, 30] can be especially beneficial when looking for existing solutions to similar scientific problems, thus promoting knowledge sharing and collaboration.

   • $\mathrm{■}$

     Identifying Workflow Components: Researchers can use AI and LLMs models to perform semantic code searches [38] and identify specific components or tasks within workflows that perform certain tasks.. This enables reusing and adapting existing components to build new workflows more efficiently.

   • $\mathrm{■}$

     Automated Documentation: AI and LLMs can generate automated documentation for scientific workflows [38]. This documentation enhances the understanding of the workflow, and also fosters reproducibility, making it easier for researchers to share and replicate their work.

2. 2.

   Data-Driven HPC-workflows:

   • $\mathrm{■}$

     Data Analysis: AI and machine learning enable sophisticated data analysis within scientific workflows, extracting valuable insights from large datasets [16, 26].

   • $\mathrm{■}$

     Pattern Recognition: AI [34] can identify patterns and correlations in scientific data, aiding researchers in discovering hidden relationships and making data-driven decisions.

   • $\mathrm{■}$

     Real-time Insights: In HPC simulations [24, 22], AI [27] can provide real-time insights, facilitating adaptive simulations based on changing conditions. This is especially relevant in fields like seismology, climatology, etc, where quick responses are critical.

3. 3.

   HPC and AI Synergy:

   • $\mathrm{■}$

     Resource Allocation: AI optimizes resource utilization in HPC clusters by dynamically [8] allocating computing resources based on workload demands or previous runs [25]. This leads to cost savings and improved efficiency in resource usage.

   • $\mathrm{■}$

     Reducing Energy Consumption for Exascale: One of the critical challenges in exascale computing is the immense energy consumption of supercomputers. AI contributes to energy-efficient [29] computing by optimizing cooling systems, and power usage. Machine learning models can predict workload patterns and dynamically adjust power consumption to match computing demands, significantly reducing energy waste.

   • $\mathrm{■}$

     Enhancing Fault Tolerance: HPC systems are prone to hardware failures and errors due to their sheer complexity. AI-driven [23] fault tolerance mechanisms can detect anomalies in real-time and initiate corrective actions. Machine learning models can predict hardware failures before they occur, allowing for proactive maintenance and minimizing downtime.

   • $\mathrm{■}$

     Predictive Analytics: AI models can diagnose [32] and predict IO bottlenecks [37], data transfer issues, or compute node failures [DA+18] in advance, allowing for proactive mitigation and improved workflow efficiency.

   • $\mathrm{■}$

     Deep Learning: HPC infrastructures are crucial for training deep learning models [11, 20] on vast datasets. The synergy allows scientists to use AI for tasks like image recognition, natural language processing, and simulation optimization.

In summary, AI plays a vital role in scientific workflows and HPC by optimizing processes, extracting insights from data, and fostering synergy between these domains, ultimately advancing research and innovation in numerous fields.

AI can play an important role for many components of a workflow system running on HPC. However, integrating such functionality also faces a number of challenges for which no good solutions exist today. These are:

• $\mathrm{■}$

  Scheduling in many systems is not an operation performed once at a single component, but instead often is accomplished in an iterative, hierarchical fashion. For instance, in a dynamic workflow at every point in time when a scheduler needs to take a decision, only the immediate next steps are known, while further downstream tasks are not. Decisions considering long-range implications, which are typical for AI-based schedulers, are thus impossible [15]. Another example for PilotJobs, which are scheduled by the resource managers as single tasks, but which during execution actually are expanded into multiple tasks which then need to be scheduled by the PilotJob itself [33]. Such two level scheduling currently is neither supported by AI-based solutions nor adequately reflected in the reference architectures.

• $\mathrm{■}$

  Resource predictions. Many advanced solutions for scheduling and resource management rely on precise predictions for the resource the execution of a task will require, such as runtime, memory, bandwidth, or energy. While many methods for performing such predictions are currently developed [35, 12], from an architectural point of view it is not clear where this functionality should be placed. The methods often assume access to current or past log files, which requires a positioning deep in the stack; on the other hand, their results are required by the workflow engine, the scheduler, and the resource manager. In pure online prediction systems, which try to predict resource requirements only based on the currently run workflow, there exists a dependency between predictions and scheduling, as the scheduler must take into account for which tasks and at which accuracy predictions are possible, for instance to prefer tasks for which this is not possible yet [36]. A further dependency that is missing in the reference architectures exists between resource predictions and resource managers, as a prediction regarding, for instance, main memory, are an important input for right-sizing of containers and virtual machines.

• $\mathrm{■}$

  Metrics. Our discussion so far focused much on conventional features of workflow/workload execution, such as runtime and resource requirements. However, AI-based workflows also bring entirely new metrics that must be taken into account. Two particularly important ones are accuracy and transparency. Accuracy describes the quality of the result produced by an AI-based workflow. From a user perspective, optimizing accuracy actually might be more important than optimizing runtime, but requires entirely different means of user support [17]. Transparency describes the property of a workflow answer to be explainable from a user perspective, and is an important cornerstone of trust in data analysis results. Again, optimizing for transparency calls for different actions than optimizing resource demands.

• $\mathrm{■}$

  Cloud-based architectures. Our reference architecture does not consider the typical properties of cloud infrastructures. For instance, elasticity, i.e., a growing and shrinking of the available compute nodes during workflow execution, is not considered, but could be ideally combined with AI based workload predictions. It would require that tasks during their execution can acquire more computational resources, which breaks the hierarchical nature of the architecture sketch in Fig. 3. In cloud environments, function-as-a-service has become popular recently (also in workflow systems [28]) as a means to provide serverless and thus easier to maintain workflow executions. Such approaches require an adaptation of the reference architectures, as not anymore discrete tasks are the basic unit of operations, but instead asynchronous function calls, which requires a different understanding of resource management and scheduling.

• $\mathrm{■}$

  Changing user groups. The recent “democratization of data science⁵⁵5https://hbr.org/2018/07/the-democratization-of-data-science” results in a drastic change in the types of users that workflow and HPC systems must support. IN a nutshell, the user base grows enormously, while at the same time the typical technical capabilities and resources associated to a user or user project shrinks. This calls for new and easier to use interfaces (e.g., graphical metaphors, integration with research data management, improved result visualization, interactive and human-in-the-loop interfaces etc.) and expanded user support (e.g., other means of workflow design and adaptations, workflow testing, and workflow debugging; personalized assistance; improved and context-dependent documentation etc.). AI can play an important role here to make interfaces personalized and more context-dependent.

Given the broader role of AI, HPC and workflows on data analysis, it is almost difficult to ascertain the suitability of a workflow engine, or workflow, or AI or HPC technique(s) for a given data analysis task. This becomes further complicated if performance (either runtime or scientific task performance) becomes a qualifying metric for the final decision around a particular AI technique or workflow or choice of a workflow engine. This complexity entails a need for a mechanism that can aid scientists (or stakeholders) in making such a decision. Benchmarking has been the cornerstone of solving such issues since the inception of software systems. As such, it is conceivable that a mechanism akin to benchmarking would be ideal to understand the interplay between these aspects.

Although one can resort to simply benchmark a workflow (or any aspect of interest), in the absence of a well-defined or well-established basis, such efforts would become meaningless. One option is to establish a common set of benchmarks that would capture a number of realistic mix of cases of different data analysis problems. A set of applications (whether realistic or synthetic) make up a benchmark suite, and are very specific to the case in hand, and in our case, workflows.

The notion of benchmarking for scientific workflows is not a novel concept, and in fact, can be widely found in the literature [9]. However, a benchmark suite that captures the integration of AI and HPC for data analysis workflows, especially in the context of recent developments in AI (such as LLMs), adds additional complexities. This is further complicated with the recent developments around detector rates, capability of modern facilities (such as AI at the edge), and modern AI-specific architectures. However, given the diverse range of scientific applications, it would be a monumental effort if the suite were to provide a full coverage of all application cases. Instead, one can envisage building a benchmark suite based on application classes or beamline types.

Identifying such a class or themes of benchmarks is not only useful for quantifying the performance capabilities of different workflow solutions, but also very instrumental in for understanding and assessing the functional capabilities of different workflow engines.

In this section, we delve into the intricacies of benchmarking within Research Agendas (RAs), particularly focusing on workflow engines and their deployment across various infrastructures. The benchmarking process in this context is multifaceted, encompassing every component of a RA. This includes conducting integration tests, which are crucial for ensuring that different components of a workflow engine function cohesively.

One effective approach is to run multiple workflows within the same workflow engine on different infrastructures. This method is not only beneficial for testing the robustness and scalability of the system but also helps in identifying potential bottlenecks and optimization points. Such tests are exemplified by initiatives like nf-core [10], which demonstrate the practical application of these benchmarking strategies. However, the challenge arises when attempting to implement the same problem across multiple workflow engines, each in their respective language, and on different or similar infrastructures. This approach is invaluable for comparative analysis, providing insights into the relative strengths and weaknesses of various systems.

Despite its benefits, this methodology is not without its drawbacks. The primary challenge lies in the significant effort and resources required to implement and manage these benchmarks. Setting up the same problem across different workflow engines involves considerable time and expertise, particularly in adapting the problem to the nuances of each engine’s language and infrastructure compatibility. Moreover, the need to run these benchmarks on various infrastructures adds another layer of complexity, requiring careful planning and coordination to ensure accurate and meaningful comparisons. Thus, while these benchmarking techniques offer substantial benefits in evaluating and improving research agendas, they also demand a considerable investment in terms of effort and resources.

In this section, we explore the diverse aspects and environments where workflow benchmarking is applied, emphasizing the need for a comprehensive approach to adequately assess and improve these systems. The benchmarking targets are multifaceted, ranging from the nature of the workflows (stream, batch, task-based) to the underlying data handling mechanisms (main memory versus file-based). Each of these aspects presents unique challenges and opportunities for optimization, making them critical targets for benchmarking efforts.

One of the key considerations in workflow benchmarking is the approach to data processing, with distinctions between synchronous and asynchronous workflows. Synchronous workflows, where tasks are executed in a predetermined order, and asynchronous workflows, which allow tasks to run independently and often concurrently, each have their own performance characteristics and optimization needs. The benchmarking process also needs to account for the diversity in programming languages used in workflow systems. Multi-language support is essential to cater to the varied requirements and preferences of different user groups. Additionally, the infrastructure on which these workflows are executed plays a crucial role. This includes the type of resource manager, the availability and use of GPUs, and the size and configuration of clusters. Benchmarking must therefore encompass a wide range of infrastructure setups to ensure comprehensive evaluation and optimization.

Another important target for benchmarking is the expressiveness of the languages used to define workflows. This includes evaluating how well a language or system supports complex constructs like conditionals and recursion. The ability of a workflow system to handle these elements effectively can significantly impact its usability and efficiency, making it a crucial aspect of benchmarking. By focusing on these varied targets, workflow benchmarking can provide critical insights into the performance and capabilities of these systems, guiding improvements and ensuring they meet the diverse needs of their users.

In this section, we address the complexities and challenges that arise in accurately evaluating workflow performance. A primary concern is identifying and scrutinizing the performance-critical parts of workflow execution. This includes assessing the efficiency of various components such as the scheduler, the methods used for dependency resolution, and the workflow interpreter, as well as the quality of the individual task implementations. Each of these elements can significantly impact the overall performance of a workflow, making their thorough assessment essential for a comprehensive understanding of the system’s capabilities.

Another pivotal issue in workflow benchmarking is the choice between real measurements and simulations. Real measurements offer tangible data on system performance under actual conditions, but they may have limitations in terms of scalability and broader applicability. In contrast, simulations, like those executed using WorkflowSim on platforms such as CloudSim and NetSim, are invaluable for scalability tests and can provide insights that are not feasible in real-world settings. However, simulations might not capture all the intricacies of real-world performance. The challenge is to balance the insights gained from simulations with the practicalities of real-world measurements, especially considering the risk of overfitting in benchmarks. This issue is evident in benchmarks like Linpack for high-performance computing systems, where optimization often focuses more on the benchmark than on practical applications.

Furthermore, the diversity of applications complicates the process of workflow benchmarking. Workflows vary greatly, from being heavily reliant on AI, to focusing on streaming data, to being based on complex simulations, or even being hybrids of these types. Each category requires specific approaches to benchmarking to accurately assess performance and efficiency. Therefore, there’s a growing need for a benchmarking standard that can adapt to these diverse requirements, providing a balance between broad applicability and specific, actionable insights. This standard differs from internal benchmarks used for tuning or procurement, which often focus on optimizing specific aspects of a system’s performance. Developing effective benchmarking strategies that can navigate these issues is critical for guiding the optimization and development of workflow systems in a way that is both efficient and applicable to a wide range of real-world scenarios.

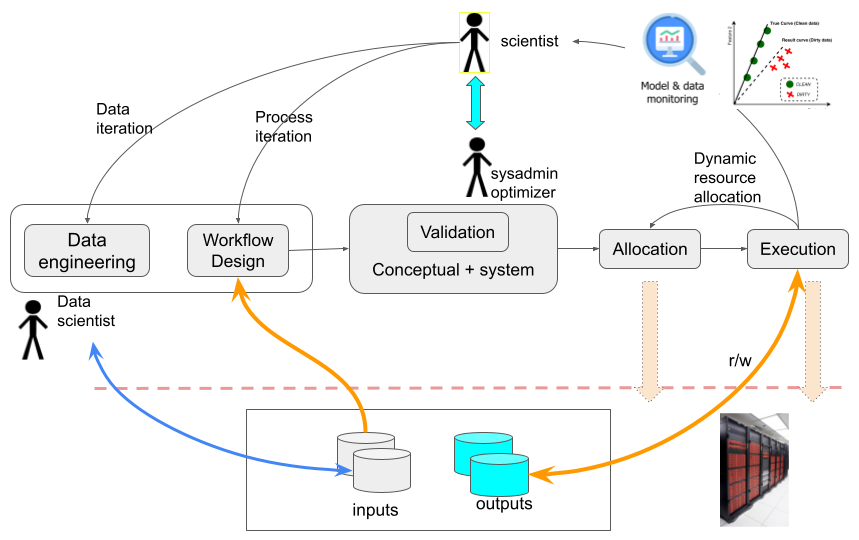

Since HPC systems are primarily batch oriented, users evolve a cadence of job submission, analysis, and new submissions, sometimes over periods of days or weeks. With advances in ML/AI, we expect both human-in-the-loop and AI-driven workflows will become more common. The challenge is that this new paradigm, of dynamic workflows, is at odds with existing HPC center policies and capabilities in many cases. Furthermore, human interaction with large scale HPC resources means that the benefit of the interaction or dynamism must be quite high to justify the costs associated with pausing, restarting, or spawning computations.

A key observation is that users often begin at a small scale where interaction is far less costly in terms of “wasted” compute, in order to understand and begin to design their workflow. However, at these small scales workflow execution tools are not needed, and can be an impediment due to their complexity, and are thus not introduced into the process until it is time to scale up the problems and number of simulations. ML/AI provides a way to introduce the “full” workflow environment early in the process, replacing expensive simulation with fast-running surrogates, and enabling interactive exploration with the entire software environment. We believe that a holistic, co-design approach is needed, in which workflows can be introduced early and scaled through the entire process of workflow creation, validation, and execution, from laptop scale to exascale.

In this section, we survey the challenges to human-in-the-loop and AI-driven workflows in current HPC centers:

• $\mathrm{■}$

  Resource Allocation: The integration of dynamic, AI-driven workflows into HPC systems faces a significant challenge due to the discrepancy between traditional HPC resource allocation policies and the requirements of these modern workflows. Traditional HPC centers, primarily designed for batch-oriented tasks, struggle to accommodate non-batch workflows like human-in-the-loop or AI-driven, data-centric processes. The absence of elasticity in resource allocation further exacerbates this issue, limiting the adaptability essential for dynamic workflows and leading to workload unpredictability. Consequently, there is an urgent need to develop HPC policies that support on-demand, AI-directed workflows, distinguishing between “compute projects” suited for batch processing and ’data projects’ that demand a more flexible, interactive approach. Adopting a holistic, co-design strategy is crucial, allowing workflows to be introduced early and scaled efficiently from small-scale experiments to extensive executions, integrating ML/AI to create fast-running surrogates for interactive exploration and efficient resource utilization from the outset.

• $\mathrm{■}$

  Data Management: Data management and workflows overlap in many ways. Data are triggers, inputs, and outputs of scientific workflows; they also serve as an “integration layer” between workflow steps, and thus can help debug their execution. Workflows are also helpful in understanding the provenance of a particular dataset by describing what kind of processing led to its creation. For the intelligence (human or artificial) in the loop, the data plays a critical role. Decisions about how to proceed with the workflow are based on data, such as intermediate results. All this poses many challenges in terms of data management and workflow execution. The availability and placement of data plays a role in the execution plan of a workflow. The data created in the workflow must be made available to the external entity (intelligence in the loop) in a timely manner to enable interaction with the workflow execution. Finally, workflows and data have different lifetimes (the data remains important and valid even after the workflow execution has ended), so the resource manager responsible for workflow execution must be able to make both short-term and long-term decisions.

• $\mathrm{■}$

  Debugging and Provenance: This challenge centers around the need for deep checkpointing and meticulous action tracking. Essential to this challenge is the provision of provenance data in real-time, which would significantly enhance decision-making during workflow execution. However, this raises potential issues, such as the risk of real-time provenance tracking interfering with the execution of workflows. Additionally, there are concerns regarding trust and the integrity of provenance data, which are crucial for reliable and verifiable scientific computations. Addressing these challenges requires a careful balance between providing detailed, real-time insights into workflow processes and ensuring that these mechanisms do not disrupt the efficient execution of complex computational tasks.

• $\mathrm{■}$

  AI Integration: This challenge revolves around preparing for high levels of unforeseen automation and the complexities it brings. To future-proof systems against this, a co-design approach is essential, where both hardware and software stacks are developed with workflow applications and their unique requirements in mind. Another critical aspect is ensuring that these AI-integrated workflows are explainable, which can be achieved by leveraging provenance and execution traces to provide clarity and understanding of the AI’s decision-making process. However, this integration is not without its difficulties, as competing AIs within the same ecosystem may attempt to optimize at the application level for their own benefit, leading to uncertainties and complexities in workflow management. Addressing these challenges requires a sophisticated balance between advancing AI capabilities and maintaining control and transparency over automated processes in computational workflows.

• $\mathrm{■}$

  Abstractions for Human Interaction: This challenge involves facilitating human involvement at every stage, including creation, deployment, resource allocation, and execution. This requires designing roles and interfaces that cater to different stakeholders such as users, workflow experts, facility personnel, and data scientists, ensuring their input is valuable and feasible at various stages of the workflow. Additionally, AI can be integrated as a surrogate for “any human in the loop,” performing tasks or making decisions in places where human intervention is typically required. Key types of user interaction that need to be abstracted include changing parameters of the workflow, starting or killing jobs based on real-time needs, and modifying the data, such as adjusting the samples used in the computation. The design of these abstractions must be intuitive and flexible, allowing for efficient and effective human-AI collaboration in managing complex computational processes.

In confronting the challenges of integrating advanced workflows into HPC systems, lessons from the history of HPC and its applications are invaluable. History shows that as HPC evolved, its increasing complexity often created barriers to automation and higher-order reasoning, a pattern now emerging in workflow systems as they accrue complex notations and concepts. This parallel suggests the need for a careful approach to developing workflow systems, ensuring they do not become so intricate that they hinder the very progress they are designed to facilitate. As we design these systems, it is crucial to consider the cost/value trade-offs in every decision, recognizing that “cost” can be multifaceted, encompassing computational resources, ease of use, and adaptability to future technologies. The key lies in learning from the past to build workflow systems that are robust, efficient, and accessible, thereby enabling them to be powerful tools in the advancement of scientific research and applications, rather than becoming cumbersome obstacles.

Large Language Models (LLMs), such as UniXCoder, codeBERT, codex, GPT-4, GraphCodeBERT, CodeT5, have already proven their utility in enhancing developers’ capabilities to manage and produce more efficient code across a range of domains. These models have opened up exciting possibilities for automating and optimizing software development processes. However, it is equally pertinent to recognize the immense potential LLMs hold in the domain of scientific workflows. Here, we summarise the different ways LLMs can be used to improve the management and efficiency of scientific workflows. Below, we present a list of use cases in which LLMs can offer benefits to the scientific workflow community:

• $\mathrm{■}$

  Discovering Similar Workflows. Large language models can help researchers discover similar workflows in their domain. By analyzing descriptions or code snippets of existing workflows, these models can identify patterns and similarities, aiding researchers in finding relevant examples and benchmarks for their own projects. This functionality can significantly reduce the time and effort required to design new workflows.

• $\mathrm{■}$

  Identifying Similar Workflow Components. Within a given scientific workflow, there are often recurring components such as data preprocessing, analysis modules, and visualization tools. Language models can assist in identifying similar components across different workflows. This capability can enhance code reusability and promote the sharing of standardized components within the scientific community.

• $\mathrm{■}$

  Autocompleting Tasks and Workflows. Language models can serve as intelligent code completion tools, making it easier for researchers to write and refine workflow scripts. As scientists input their desired tasks or steps, these models can suggest code snippets, offer parameter recommendations, and assist in handling dependencies, resulting in more efficient and error-free workflow development.

• $\mathrm{■}$

  Describing and Summarizing Workflows and Tasks. Scientific workflows often involve intricate data manipulation and analysis procedures that can be challenging to document comprehensively. Large language models can automatically generate human-readable descriptions and summaries of workflows and individual tasks. This enhances the accessibility of the workflow for collaborators and future reference.

• $\mathrm{■}$

  Interoperability Across Workflow Engines/Frameworks. Diverse workflow management systems often feature distinct syntax and structures. Large language models can simplify the process of translating workflows from one platform to another. Researchers can input their workflow in one system’s language, and the model can generate equivalent code in the target platform’s format, streamlining the migration process and minimizing errors.

• $\mathrm{■}$

  Workflow Optimization and Tuning. Large language models could also assist in optimizing and fine-tuning scientific workflows. By analyzing performance data and user-defined goals, these models can suggest improvements in resource allocation, parallelization strategies, and parameter tuning to achieve faster and more efficient execution.

In the burgeoning field of HPC+AI workflow integration, there is a notable absence of dedicated venues for community engagement and knowledge exchange. To fill this void, initiatives can potentially evolve from Workflow Community Initiatives (WCI) and interdisciplinary-oriented venues, creating spaces where best practices for workflows, including pattern submissions linked to workflow module or pattern commons, can be discussed and refined. These venues could operate on a model of continuous submission, allowing for the real-time tracking of emerging or popular patterns. However, publishing these insights in a manner that engages communities unfamiliar with workflow intricacies remains a question. Furthermore, identifying key stakeholders within this ecosystem is essential to understand how systems should be architected to facilitate the interactions between these parties.

Addressing cultural differences in workflow structures is another significant challenge. Scientists often create monolithic workflows that are resistant to the modular, adaptable approaches emerging in modern workflow composition. To encourage the adoption of new practices, there must be tangible incentives for end users, and equitable methods to transfer development best practices from the computer science community to practitioners. Advocating for these cultural shifts at higher levels, such as funding agencies, is also critical and requires champions who can effectively communicate the value of these changes. Capturing the varied needs of intersecting communities, such as domain science and AI, presents both a challenge and an opportunity to distill knowledge from specialized groups.

Defining a specification for workflow assessment and evaluation tailored to specific use cases is an ongoing challenge. Distinguishing “workflow challenges” from benchmarks could help, with metrics that measure not only technical performance but also innovation, as exemplified by the DEBS community’s approach to streaming datasets. Competitions, like those on Kaggle or potential student contests at focused venues, could concentrate on workflow patterns and their applications. The suitability of existing repositories for static workflows, such as WorkflowHub, Snakemake, BioBB, and MyExperiment, needs to be evaluated against the requirements of modern, dynamic workflows. The Workflow Module Commons on top of WCI could serve as an equitable service for building blocks, as suggested by Ilkay’s work, but this raises the policy challenge of engaging institutions to host such services. AI could support automatic workflow generation, optimizing performance, and composing workflows from existing building blocks based on descriptions. However, this introduces the challenges of collecting training data, defining workflow requirements—particularly in terms of data and system specifications—and ensuring the certification of generated workflows and predictions for resource allocation.

The shift towards data-centric AI+HPC approaches poses several technical challenges for adoption, particularly in environments that have traditionally favored a task-centric perspective. A key question arises: how can the HPC community, which typically prioritizes tasks, be incentivized to adopt a data-centric approach that is essential for integrating AI components into workflows? This paradigm shift requires not only a recognition of the efforts involved in creating data-centric building blocks and generating valuable datasets but also strategies to democratize data within HPC, making it more accessible for use, sharing, and retrieval. Currently, many computing facilities operate in silos, with distinct responsibilities for computing or data management. Some institutions, like UCSD, have successfully developed institutional repositories, but this is not yet widespread. The challenge extends to the discovery of data and repositories linked to HPC, which often falls prey to resource prioritization issues rather than technical feasibility. To address these hurdles, there is a critical need to educate the next generation of HPC professionals and researchers in data-centric workflow thinking, laying a foundational understanding that will drive the future of integrated AI+HPC solutions.
