Certifying Algorithms for Automated Reasoning

The generation of proof certificates and the use of proof checkers is nowadays standard in first-order automated theorem proving and related areas. They have, to the best of our knowledge, not yet been employed in Description Logics, where the focus was on detecting and repairing errors in the ontology, rather than on catching erroneous consequences created by an incorrect reasoner. This paper reports on first steps towards remedying this deficit for subsumptions computed by the DL reasoner Elk. We use an existing tool for generating proofs of consequences from Elk, and transform these proofs into a format that is accepted as certificates by our proof checker. The checker is obtained as an instance of a generic certification tool based on the Logical Frame-work with Side Conditions (LFSC), by formalizing the inference rules of Elk in LFSC. We report on the results of applying this approach to the classification of a large number of real-world OWL 2 EL ontologies.

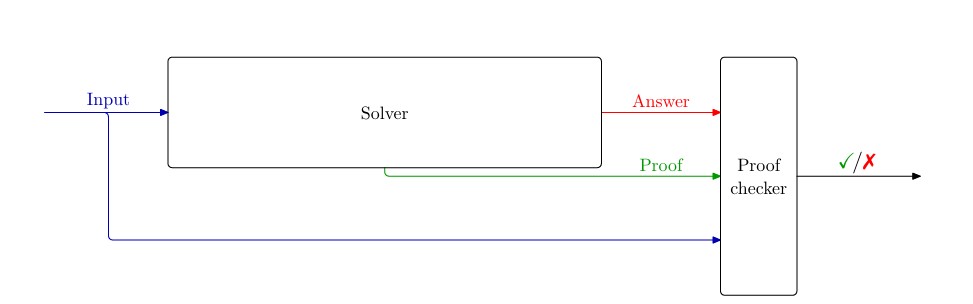

SMT solvers can be hard to trust, since it generally means assuming their large and complex codebases do not contain bugs leading to wrong results. Machine-checkable certificates, via proofs of the logical reasoning the solver has performed, address this issue by decoupling confidence in the results from the solver’s implementation. In this talk we will describe the extensive proof infrastructure of the state-of-the-art SMT solver cvc5, which has enabled the production of proofs in a number of complex domains. We will also show how these proofs are checked or reconstructed in different formats by different systems, from ad-hoc high-performance proof checkers to proof assistants such as Lean.

Over the last years, certifying software verification has become an established practice in the area of automatic software verification: An independent validator re-establishes verification results of a software verifier using verification certificates (also called witnesses), which are stored in a standardized exchange format. In addition to validation, such exchangeable information about proofs and alarms found by a verifier can be shared across verification tools, and users can apply independent third-party tools to visualize and explore certificates to help them comprehend the causes of bugs or the reasons why a given program is correct. To achieve the goal of making verification results more accessible to engineers, it is necessary to consider certificates as first-class exchangeable objects, stored independently from the source code and checked independently from the verifier that produced them, respecting the important principle of separation of concerns. We present the conceptual principles of software-verification certificates and illustrate the contents of such certificates.
Material:

• $\mathrm{■}$

  Software Verification Witnesses 2.0 https://doi.org/10.1007/978-3-031-66149-5_11

• $\mathrm{■}$

  Verification Witnesses https://doi.org/10.1145/3477579

Design faults in hardware design are costly. Thus hardware model checking has routinely been applied during the chip design process for decades. However, both academic and industrial model checkers are complex software tools and arguably hard to get correct. To increase trust in model checkers we therefore propose a model checking certification flow. The model checker produces a witness circuit which simulates the original model and for safety properties has an inductive property implying the original property. Checking simulation and inductiveness can be done by SAT solving. We have applied this idea to different model checking techniques, particularly preprocessing techniques. The single safety property track of the hardware model checking competition in 2024 required all participants to produce such certificates. The competition showed that certification is possible and cheap, i.e., both with respect to certificate production and checking. Furthemore the winner of the competition surpases the previous state-of-the-art, while producing machine checked witnesses. This is joint work with Emily Yu, Nils Froleyks, Mathias Preiner and Keijo Heljanko.

Due to the wide employment of automated reasoning in the analysis and construction of correct systems, the results reported by automated reasoning engines must be trustworthy. For Boolean satisfiability (SAT) solvers – and more recently SAT-based maximum satisfiability (MaxSAT) solvers – trustworthiness is obtained by integrating proof logging into solvers, making solvers capable of emitting machine-verifiable proofs to certify correctness of the reasoning steps performed. In this work, we enable for the first time proof logging based on the VeriPB proof format for multi-objective MaxSAT (MO-MaxSAT) optimization techniques. Although VeriPB does not offer direct support for multiobjective problems, we detail how preorders in VeriPB can be used to provide certificates for MO-MaxSAT algorithms computing a representative solution for each element in the non-dominated set of the search space under Pareto-optimality, without extending the VeriPB format or the proof checker. By implementing VeriPB proof logging into a state-of-the-art multi-objective MaxSAT solver, we show empirically that proof logging can be made scalable for MO-MaxSAT with reasonable overhead.

Knowledge compilers convert Boolean formulas, given in conjunctive normal form (CNF), into representations that enable efficient evaluation of unweighted and weighted model counts, as well as a variety of other useful properties. Certifying the correctness of a knowledge compiler’s output, requires proving that 1) the generated formula is logically equivalent to the input formula, and 2) the generated formula satisfies the structural properties that enable efficient model counting.

Our Certified Partitioned-Operation Graph (CPOG) proof framework provides a way to encode the output of a knowledge compiler as well as a set of steps providing a checkable proof of correctness. Most recently, we have extended this framework to Skolem CPOG (SCPOG) supporting projected knowledge compilation, where a subset of the variables is abstracted away via existential quantification. Doing so requires a method to encode Skolem assignments, describing instantiations of the quantified variables.

We have developed formally verified checkers for both CPOG and SCPOG, one in Lean4 and the other in CakeML/HOL. In doing so, we formally verified the soundness of the frameworks.

This invited survey talk explores certified SAT solving, which is crucial for establishing trust in the reasoning steps and results of Boolean Satisfiability (SAT) solvers. We will cover the related fundamental concepts of SAT solving and discuss how proof-producing solvers and external checkers enable certification. A key focus will be on certifying incremental SAT solving, an essential technique that allows solvers to efficiently tackle sequences of related problems while maintaining correctness guarantees.

CaDiCaL offers a proof tracer interface that makes it possible to get information on the derivation worked. This interface hides only some of the internal information. In this talk, I describe the notification model and what information is produced.

Standard solvers for mixed-integer linear programming define feasibility and optimality of solutions within numerical tolerances and the correctness of their results, even within these tolerances, is subject to roundoff errors stemming from the unsafe use of floating-point arithmetic. By contrast, starting with version 10, the open-source MIP solver SCIP ships a numerically exact solving mode without tolerances and can produce an independently verifiable proof log for most of the exact solving techniques. Besides giving an overview on these recent advances and remaining limitations in software for verified MIP solving, we try to gauge to what extent floating-point MIP solvers can be used directly to produce verifiably correct proof logs. Our computational study with a pure LP-based branch-and-bound version of SCIP confirms the expectation that in the overwhelming majority of cases, all critical decisions during the solving process are correct. When errors do occur on numerically challenging instances, they typically affect only a small, typically single-digit, amount of leaf nodes that would require further processing.

State-of-the-art model-checking algorithms like IC3/PDR are based on unidirectional modular SAT solving for finding and/or blocking counterexamples. Modular SAT solvers divide a SAT-query into multiple sub-queries, each solved by a separate SAT solver (called a module), and propagate information (lemmas, proof obligations, blocked clauses, etc.) between modules. While modular solving is key to IC3/PDR, it is obviously not as effective as monolithic solving, especially when individual sub-queries are harder to solve than the combined query. This is partially addressed in SAT modulo SAT (SMS) by propagating unit literals back and forth between the modules and using information from one module to simplify the sub-query in another module as soon as possible (i.e., before the satisfiability of any sub-query is established). However, bi-directionality of SMS is limited because of the strict order between decisions and propagation – only one module is allowed to make decisions, until its sub-query is SAT. In this talk, I will describe our generalization of SMS, called SPEC SMS, that speculates decisions between modules. This makes it bi-directional – decisions are made in multiple modules, and learned clauses are exchanged in both directions. We further extend DRUP proofs and interpolation, these are useful in model checking, to SPEC SMS. We have implemented SPEC SMS in Z3 and show that it performs exponentially better on a series of benchmarks that are provably hard for SMS.

In my talk, I introduced the classical planning problem and explained its relevance to the seminar by contrasting it with SAT. For those that haven’t seen planning before, the aim was to provide some basic understanding of the problem and why it is of interest. For those familiar with planning, I attempted to give additional perspectives on the problem and its complexity. I aso gave the seminar participants a brief update on research in the planning community that tackles the main motivating questions of the seminar, in particular discussing results and open challenges for certifying planning algorithms.

When searching for graphs specifying certain conditions, the LexLeader approach is used to avoid symmetric graphs. A graph G is a LexLeader if its adjacency matrix is lexicographically smallest among all adjacent matrices representing graphs isomorphic to G. Symmetry breaking then amounts to adding constraints that eliminate non-LexLeader graphs from the search. We give a fresh perspective on symmetry breaking as a set cover problem and quantifier elimination problem [1]. A permutation $\pi$ covers a graph $G$ if $G$’s adjacency matrix becomes smaller under $\pi$. We further define the notion of a pattern [2], which describe a set of graphs that become smaller because of some permutation $\pi$ at position $i$. To encode patterns as CNF, extra variables are needed. These are Tseitin variables that describe an equality between two edge variables. Notably, these variables are reused across multiple patterns. Like so, a set of patterns enables us elegantly expressing a set of non-lexleaders and therefore can be interpreted as a certificate for a symmetry breaking constraint.

Deciding ideal membership is a central problem in computer algebra, with wide-ranging applications in geometry, verification, and symbolic computation. While Gröbner bases provide a complete method for deciding ideal membership, their outputs are often complex, making certification difficult.

I present a framework for certifying ideal membership tests using a practical algebraic calculus (PAC) that allows tracking polynomial manipulations. The calculus supports different levels of granularity, allowing proofs to be either concise or detailed; depending on whether the emphasis is on debugging or efficient proof checking.

Certifying solvers have long been standard in Boolean satisfiability (SAT), allowing for proof logging and checking with limited overhead. However, developing similar tools for combinatorial optimization has remained a challenge. A recent promising approach covering a wide range of paradigms is pseudo-Boolean proof logging, but this has mostly consisted of proof-of-concept works far from delivering the performance required for real-world deployment.

In this work, we present an efficient toolchain based on VeriPB and CakePB for formally verified pseudo-Boolean optimization, and implement proof logging for the full range of techniques in the state-of-the-art solvers RoundingSat and Sat4j. Our experimental evaluation shows that proof logging and checking performance in this much more expressive paradigm is now quite close to the level of SAT solving, and hence clearly practically feasible.

Many interesting problems involve finding a little graph inside a bigger graph: for example, maximum clique asks for the largest set of vertices where everything is adjacent, whilst subgraph isomorphism asks whether a specific pattern occurs inside a given target graph. Although these problems are computationally hard in theory, in practice solvers can often handle these problems extremely quickly, even on graphs with thousands of vertices. However, these solvers are not always perfect, and sometimes contain bugs that lead to wrong answers being produced. I’ll explain how, using the VeriPB proof system, we can augment these solvers to produce correctness certificates, allowing us to be confident they have definitely given the right answers. To do this, we’ll need to be able to justify a wide range of algorithmic inference steps, including colour bounds, all-different filtering, and degree reasoning; perhaps surprisingly, VeriPB is able to do all of these efficiently, despite not having any notion of what a graph is.

Constraint programming (CP) is a powerful paradigm for expressing and solving satisfaction and optimisation problems involving finite domain variables and high-level constraints. But the implementation and engineering of CP algorithms can be extremely complex, error-prone, and difficult to test. We are much more likely to trust the output of a solver if it can provide some kind of certificate of correctness via proof logging.

In this talk, I will discuss the current state of research into adding proof logging to CP solvers. I’ll cover how we can prove unsatisfiability and optimality; what makes this different from established proof logging technology for SAT solvers; and the efforts towards devising efficient justification procedures for the huge variety of propagation algorithms available in the modern CP repertoire.

It is well known that reformulating the original problem can be crucial for the performance of mixed-integer programming (MIP) and maximum satisfiability (MaxSAT) solvers. While the idea is the same in both the MIP and MaxSAT community, the presolving reductions in MIP and preprocessing in MaxSAT apply slightly different techniques to reformulate the problem. To ensure the correctness of the reformulations, all transformations must preserve the feasibility and optimal value of the problem, but there is currently no established methodology to express and verify the equivalence of two optimization problems.

In this talk, it is presented how pseudo-Boolean proof logging can be used to certify the correctness of a wide range of modern MIP presolving and MaxSAT preprocessing techniques. By combining and extending the VeriPB and CakePB tools, we obtain a formally verified end-to-end proof checking tool chain to verify the correctness of reformulations of pseudo-Boolean problems.

This talk is based on the following two papers. The first paper was published at CPAIOR 2024 together with Alexander Hoen, Ambros Gleixner, and Jakob Norström. The second paper was published at IJCAR 2024 together with Hannes Ihalainen, Yong Kiam Tan, Jeremias Berg, Matti Järvisalo, Magnus O. Myreen, and Jakob Nordström.

Automated Theorem Provers (ATPs) have been around a long time, but their proof certification ecosystem is nowhere near as well-developed as, say, SAT solvers. There are several reasons for this: a plurality of proof calculi, equisatisfiable inferences, and theories, to name a few. I will outline ATP systems and their proof certification, explain some difficult areas, present some recent developments, and offer a few paths to salvation.

Automated reasoning tools require high trust, prompting modern solvers to produce proof certificates for verification. In propositional satisfiability (SAT), proof generation and checking are relatively inexpensive, but in satisfiability modulo theories (SMT), justifying theory lemmas can introduce significant overhead. Recent approaches mitigate this issue by having the SMT solver produce a proof skeleton containing only the propositional reasoning in the DRAT format and unjustified theory lemmas, whose justifications are deferred to the checking phase. Preprocessing, a key element of SMT solving that can be challenging to justify a posteriori, is not justified nor checked. We extend these approaches by including proofs for preprocessing; by reducing the checker workload via iteratively eliminating theory lemmas from proof skeletons through SAT solving and proof trimming; and by proposing two justification methods for theory lemmas: one batches justifications for parallelization, while the other not only checks the theory lemma justifications but also integrates them into a fully detailed proof that could be checked with standard approaches. Experimental results on SMT-LIB benchmarks show the benefits of our approach in reducing solving time when producing proof skeletons that can be effectively checked externally. In particular, the extended trimming techniques can significantly reduce the number of theory lemmas to be checked beyond standard trimming, thereby improving sequential and parallel checking times.

Over the past 5 years, the SMT solver cvc5 has been instrumented to produce proofs for a majority of its theories. This talk reports on a new milestone for this work, namely that all mainstream features of cvc5 are 100% proof producing and checkable in an external proof checker (Ethos). In detail, Ethos is a high performance proof checker written in around 10k lines of C++. Its native input language is Eunoia, a logical framework for defining proof systems that is heavily inspired by the forthcoming SMT-LIB version 3.0 language. To engineer complete proofs for cvc5, I will discuss the introduction of a “safe mode” of cvc5, which defines a subset of the features of cvc5 that are free of known bugs and have complete proof support. The internal proof calculus of cvc5, now known as the Cooperating Proof Calculus (CPC), has been formalized in around 6500 lines of Eunoia definitions. Notably, this formalization now covers all mainstream theories of cvc5, including those currently used by industrial users of cvc5.

Optimal classical planning is the problem to find an action sequence with minimal cost from a given initial state to a goal state. Checking that a given action sequence is a plan can easily be done by applying the actions one after another, but if a planning system claims that a plan it has found is optimal or that there is no plan, a different kind of proof is needed. In my talk, I present our recent efforts to provide such a proof in the form of lower-bound certificates based on pseudo-Boolean constraints. These certificates can then be checked by VeriPB. I demonstrate how planning systems based on heuristic search can be modified to produce such certificates, and discuss the current status of the approach.

Over the last years, much progress has been made in theory and practice of solving quantified Boolean formulas (QBFs). In principle, it is also well understood how to certify solving results found on solvers based on different solving paradigms like QCDCL as well as abstraction- and expansion-based solving. QBF certification is strongly inspired by approaches successfully used in SAT. Nevertheless, state-of-the-art solvers support certification to a limited extent only.

In this talk, an overview is given on the state of the art of certified QBF solving and the challenges that need to be addressed to obtain a fully operational certification workflow.

We report on one old and some recent advances we made in the context of applying SAT/SMT solving in the area of Railway Verification.

The first concerns a provably correct DPLL/Resolution solver [1] that was extracted from a formal proof (in the theorem prover Minlog) that for every clause set there is either a satisfying assignment of variables or a proof of unsatisfyability. The extracted program from this (Minlog) proof yields a program (in Haskell) that either computes a model or a (DPLL system) proof of unsatisfiability. The extracted solver was applied to a number of Railway problems.

Our new work concerns a certified RUP checker that has been extracted from a formal proof in the Theorem Provers Rocq and Agda [2]. We formalised the RUPchecker in Rocq, provided a soundness proof and extracted the checker from it. The procedure also allows to produce the corresponding Unitresolution proof, but to do so is not required for the correctness of the checked result.

This is joint work with Harry Bryant, Alec Critten, Andrew Lawrence (Siemens Mobility), and Anton Setzer.

Automated Theorem Proving (ATP) is concerned with the development and use of software that automates sound reasoning. An ATP system can be required to output a proof that serves as a certificate for the system’s claim. To ensure that a proof is correct, verification can be required. If the verifier outputs evidence in a form that can be independently checked, that evidence serves as a certificate for the verifier’s claim. The sequence of finding a proof, verifying the proof, and certifying the verification, builds an increasing level of trust in the system. This talk traces one such path for TPTP format proofs generated by ATP systems, via the GDV derivation verifier, and ending at the LambdaPi checker.

SAT Modulo Symmetries (SMS) performs dynamic symmetry breaking for graph generation by detecting and excluding non-canonical graphs during CDCL search. In this talk, we will focus on the certification mechanisms that ensure the correctness and completeness of this approach across different settings.

We will consider three types of certificates: (1) nc-certificates (non-canonicity certificates), which are permutations proving that a partially defined graph cannot be extended to a lexicographically minimal solution; (2) DRAT proofs where the symmetry-breaking clauses learned via the minimality check are added as axioms to the proof, with these axioms themselves certified by their corresponding nc-certificates; and (3) uniform proofs for the QBF setting, where SMS handles quantified graph search problems with formal verification through LDQ-resolution.

These certification mechanisms provide mathematical guarantees for the correctness of SMS and enable independent verification of results in challenging combinatorial problems, from confirming the Murty-Simon conjecture to computing Ramsey graphs with formal proofs.

This survey talk will be split into two parts.

First, we will survey various automated reasoning theories/domains where verified proof checkers have been built. We will also present some of our ongoing work, and we will argue that verification can help enable the design of more complex proof systems/checkers while preserving trust in the overall certification process.

Then, we will take a deeper dive into verification infrastructure available in various theorem provers. Special focus will be given to HOL4 and the CakeML project – we have used CakeML to build several end-to-end verified proof checkers with machine-code level correctness guarantees. We will discuss synergies between what CakeML can bring to proof checking and what proof checking can bring to CakeML.

SCL is a new paradigm for automatic reasoning in various logics. I discuss certification of proofs in SCL.

Finally, each panelist was given the opportunity to give a short closing statement.
