Policy Modeling and Reasoning in Sociotechnical Systems

Agentic computing is a recent paradigm for leveraging generative AI to build agents that accomplish sophisticated tasks. Today’s agentic systems are impoverished because of a focus on rigid coordination methods based on procedural encodings of interaction, such as via task graphs. We introduce the notion of social agentic systems (SASY). SASYs are systems of agents that explicitly represent and communicate about norms, including the consequences of respecting or violating a norm. When needed, agents may deviate from norms and can negotiate their relaxations. In this way, SASYs provide a way to leverage the flexibility and power of generative AI through high-level, socially inspired models of interaction.

With the advent of software systems based on generative AI and LLMs, autonomous agents and MAS have re-emerged as one of the key research fields that will influence the future of large-scale information systems. Indeed, substantial expectations are attached to the importance that AI agents will have on how individuals and organisations carry out collaborative knowledge work. At the same time, concerns are growing that unjustified expectations regarding mainstream agent technologies will lead to failures of agent introduction projects; relatedly, the labelling of conventional (i.e., non-agent) technologies as “agents” is sometimes called agent washing [12].

These concerns raise the question of what is fundamentally needed to deploy software agents successfully as part of STS [17], such that human productivity and well-being are indeed affected substantially and sustainably. In this chapter, we argue that a key capability – missing in current mainstream agent and MAS architectures and frameworks – is the ability to represent, reason, and communicate about norms and social values, in order to effectively operate and evolve the STS. We call STS that feature software agents with such capabilities social-agentic systems (SASY).

Based on a motivating example, we explain why the aforementioned capabilities are crucial for the successful deployment of intelligent software agents within and across organisations. We then explain why and how SASY differ architecturally from classical MAS, as well as from LLM-based agent architectures. Finally, we outline a set of research challenges that can move us towards real-world SASY.

An LLM-based chatbot is not only able to interact with humans, but it can also interact with technical systems by generating structured output such as code snippets: the chatbot generates a code snippet that is executed in a sandbox environment, giving controlled access to the technical system, and the result of the execution is given back to the chatbot in a textual form. In this setting, the chatbot becomes an agent, perceiving and acting on its environment [19].

Many agent frameworks have been built on this idea in the past two years, including LangGraph, AG2 (previously branded AutoGen), the OpenAI Agents SDK, Smolagents, and CrewAI. These frameworks encourage modularity in diverse respects. An agent interacts with its environment via a collection of tools, each providing access to a particular functionality. For example, LangGraph provides built-in tools for Web search, Web scraping, API access, code interpretation, and database access [11]. Likewise, the Model Context Protocol (MCP) [1] facilitates the integration of external tools into an agent’s environment. Another way modularity is encouraged is by decomposing task handling into components, each component being made of a chatbot with its own context. Such a modular agentic system is sometimes referred to as a “MAS” in this literature (though at variance with the terminology in the MAS community), though from a more general point of view, it is indistinguishable from a single agent.

Even though LLM-based agentic systems perform much more poorly than humans, they achieve surprisingly good performance on several benchmarks. For instance, on the General AI Agent (GAIA) benchmark, GPT-4 correctly answers 30% of the questions (whose answers require Web search and reading documents in various formats) [14]. On the more general AgentBench benchmark, GPT-4 and Claude 3 achieve 14% to 70% of the tasks, depending on the domain, ranging from puzzle solving to Web browsing [13]. OpenAI and Anthropic provide commercial support for personal assistants evolving in a Web or computer environment. Planning a trip, which includes online reservation and payment, is one of the use cases advertised by the two companies, for example. Such a use case may – or, rather, must – include numerous social interactions (via the Web). Yet, LLM-based agentic systems demonstrate no form of social awareness.

Let us consider the following scenario:

A researcher Jaime, who works at the University of São Paulo, located in Brazil, is invited to a Dagstuhl Seminar. Pınar, a researcher who works at Utrecht University, located in the Netherlands, is invited to the same seminar. The two of them are preparing a joint research proposal, and hence have agreed to have a first meeting on the Sunday evening prior to the seminar.

To promote sustainability, Utrecht has an internal regulation that trips to cities that are less than 700 km away from Utrecht must be made by train. To promote reasonable usage of public resources, São Paulo has an internal regulation that researchers must buy economy flights. Additionally, Jaime has a preference to always fly with a certain airline, since his membership in its loyalty program allows him to upgrade his ticket. Both Jaime and Pınar would like to book a taxi together from the train station at Türkismühle to Dagstuhl.

In principle, this scenario presents social constructs that have been studied by the MAS community for the last 40 years [10, 9, 7]:

Institutional norms

that must be taken into account during the agents’ deliberation and decision-making.

Institutional or individual values

to consider in choosing a solution.

Commitments

between two parties, representing that one party legitimately expects that the counterparty will act accordingly.

Individual preferences

to prioritise when several solution options are feasible.

Suppose the train that Pınar has booked is late, and this would prevent her from sharing a taxi with Jaime, as they initially planned. Suppose also that the taxi service in Türkismühle closes at 20:00 on Sundays and reopens on Monday morning. Current agentic systems do not appropriately cope with such diverse social concepts and changes in plans.

An intelligent agent would need to reconsider, either autonomously or by asking the user, which adaptations should be made to the original joint plan: should Pınar take an earlier train? Should she take a flight instead of a train? That is, how might she deliberate on whether to violate a norm to guarantee the meeting? Moreover, if a taxi reservation has been made for an earlier time, this commitment should be revised and communicated to the taxi service.

We posit that leveraging such social constructs is crucial to addressing the challenges facing agentic AI.

We define a SASY as a MAS consisting of human and software agents, in which software agents engage in communication dialogues that run over extensive periods of time and in which their actions, including speech acts, are grounded in norms, values, and trust (or lack thereof). The internal structure of agents in SASY could be designed in various ways; that is, a SASY may feature agents of diverse architectures. We assume that each agent has access to the environment where it can communicate with other agents. Agents have knowledge of the domain they are operating in, they have capabilities, and can reason about what action to perform. The domain reasoner could be a traditional reasoner, such as a rule-based engine, or a more sophisticated one using the capabilities of neural models. Some agents may have a social state component where they have an explicit representation of social preferences, norms, values, commitments, and so on. An agent may have an interface to interact with users. Such an interface could be a built-in application interface or an interactive interface, such as a chatbot, where the interactions occur through natural language. Moreover, when agents interact with humans, they gather additional information about these humans to become socially aware by encoding the information into formal specifications that could be used to communicate with other agents.

Let us assume we have three different types of agents as depicted in Figure 5. All agents have access to the environment, where they can communicate with each other through well-defined protocols. Agent A is an agent that is using a user application to interact with the user to process the user requests. The Social Awareness component includes information such as user preferences. A formal social protocol ensures that the user state is translated to a formal state, which could be used to communicate with other agents in the STS. Agent B supports a natural language interface for the user. Agents B and C conform to the SASY system architecture, since they are both equipped with a natural language interface. Agent B is using a natural language interface to communicate with the user, whereas Agent C processes natural language prompts, but it does not interact with the user directly.

The literature shows examples of Agent A [4] and Agent C [11]; however, research challenges remain. Architectural components that require further attention from the research community are highlighted in Agent B. For example, if Jaime and Pınar both had agents of type Agent B, their agents could communicate with each other and also with their users to adjust the plan according to the current social context.

In the example from Section 5.2.3, a SASY software agent could address the situation as follows:

• $\mathrm{■}$

  Decide that booking a flight is undesirable, not only because it violates the sustainability norm, but also because it is, from a commonsense perspective, not comfortable in the current situation and not a reasonable use of public resources. Whereas the latter two norms are not formally represented in the norm base the agent has access to, the agent generates them on the fly using an LLM and presents them as explanations for the final proposal to Jaime and Pınar.

• $\mathrm{■}$

  Decide that the revised taxi trip is only marginally noncompliant with the operating hours of Taxi Martin and use this inference as the basis for a successful request (carried out via an interface to the traditional telephone system) that re-negotiates the schedule and conditions for the taxi trip.

In order to realise the vision outlined above, agents must exhibit social awareness in human-agent interactions, which raises several research questions:

Prompting.

How do we adapt the prompts with social constructs, such as norms and values? What are the different ways to adapt the prompts to ensure social components are represented adequately? Some options are enhancing the prompts, revising the prompts, and so on.

Social interactions.

How do we design components to keep track of or regulate social interactions? Can an LLM figure out that it is making a commitment when it is saying certain things to the user? Consider the recent Air Canada case [8], where the airline’s chatbot told a customer they could apply for a refund, in contradiction to the company’s policy. Could we keep such commitments in a database and keep track of them so that the LLM can decide whether to make or break these commitments with its interactions? Commitments here are one such abstraction; we can also think of consent [2, 18] and other such abstractions similarly. For example, a consent store can prohibit an LLM from generating certain results or communicating what may have been generated.

Social.

How may LLMs interact with this social state? Some possibilities are below.

• $\mathrm{■}$

  The LLM generates what it will normally generate and then sends it to the social awareness component, which then checks whether this is appropriate or not. It could be a binary decision or a modification to the output.

• $\mathrm{■}$

  Social awareness component generates (additional) prompts to the LLM to take into account so that the generated output is socially appropriate.

Validation.

How do we assess that the proposed architecture delivers intended actions or outputs? Typical LLM evaluation is with benchmarks on input and output. This could be one way to evaluate SASY, but to specifically evaluate the social awareness component or the interface, we might need different techniques. For example, if the SASY produces socially appropriate output, is it because the social awareness component caught something and fixed it? Or, did the LLM generate it that way to begin with?

Languages.

What are some languages or protocols that could help in realising this architecture? Formal languages to represent norms [5, 6]remain useful for verifiability and accountability reasons, even in the presence of a natural language interface. The Blindingly Simple Protocol Language (BSPL) [15, 16] provides an alternative to workflows. Translating natural language into a formal language and back is an important challenge. Some LLM services are already capable of outputting structured data, validating a schema defined at run time (e.g., ChatGPT Structured Outputs), but the support is inadequate. A typical problem arising in this context is terminological alignment [3].

In addition to serving as a personal assistant as described above, the agentic architecture could also help in improving various design stages of STS. For example, SASY could be used to simulate various stakeholders of an STS, adopting various personas, depicting different interactions, and realising diverse scenarios. SASY could be used to simulate various alternative evolutions of an STS. Through such simulations, it may be possible to infer various side effects on primary stakeholders. Moreover, it may help in identifying secondary stakeholders, that is, those who would be affected by the use of the system.

This working group focused on conceptual issues perceived to relate to policy modelling and reasoning in STS. The terminology problem was first discussed, as different stakeholders view STS differently which causes a lack of consensus in the use and misuse of a system. Difficulties in ascertaining what constitutes misuse of an STS, or when misuse is occurring, present barriers to deciding and enforcing effective regulation. The discussion went on to apply conceptual issues to an example of an educational STS, which encompasses dynamic change of goals and behaviour, influencing the technological decisions and process that must be made.

Efforts towards regulation can only address reasonably foreseeable misuse whilst leaving room for innovation. Yet, human behaviour is extremely hard to predict. In an STS composed of social (humans and organisations) and technical (data and devices) tiers, there will necessarily be a limit to the extent of what the human tier can understand, and what the technical tier can represent.

The lack of fixed boundaries in STS terminology leads to a lack of consensus about the use and misuse of a system. Technology-only solutions to STS misuse typically result in a blunt instrument approach, with the social components adopting, rejecting, complying, or violating the assumptions and norms (standards of expected behaviour [5]) of the STS. Humans create a mental model of the system (both technical and inter-related processes), yet it is unclear if the technical tier does, or is able to, represent such a model. Resulting problems from this include:

Deception:

Both intended and unintended

Trust:

Both deserved and undeserved

Goal and value alignment:

Humans tend to assume that the technical system ought to have the humans’ best interest at heart.

Can these problems be fixed with a notion of group agency? Agency ought to lead to responsibility, and hence group agency makes explicit the notion of shared responsibility [3]. Understanding how group agency emerges necessitates defining group membership, structure, and behaviour.

Within an STS, stakeholders attempt to achieve normative goals, wherein normativity refers to something desirable. Normative goals may be imbued through law, social norms, or moral norms, and explicit or implicit incentives may be applied to influence behaviour and encourage stakeholders to comply with particular norms. The nature of an STS is an ongoing and dynamic process, where humans influence systems and those systems in turn influence human behaviour. Therefore, when a choice is made to encourage a normative goal in a system (e.g. installing smoke detectors to stop people smoking indoors), we can expect that people will adapt in response to that choice (e.g. by not smoking or by taking the batteries out of the smoke detector). Norms thus embody a dual role, effecting expected changes and catalysing unexpected responses to those changes. The technological choices we make in pursuit of normative goals will never be able to capture the whole space of normativity as people will loopholes and behave in unforeseen ways. Smoke alarms are installed to promote safety, but some people deviate by covering the alarm up or removing the power.

Communication fills the gap between the technology itself, and the normative goal aimed at, through sanctions (positive or negative reactions to approved or disapproved behaviour [2]) or other signals [4]. For example, speed signs may be put up to make people slow down outside a school. However, interventions may change over time as the system responds. If people do not follow the signs, the intervention may need to be fortified such as by putting in a speed bump.

Technological interventions to promote normative goals raise questions about intrinsic autonomy and deception. Whether a deception is (un)acceptable may depend on the intentions and reasons behind it, as well as the awareness of the subject that they are being deceived. On the one hand, end users should be aware of the limits of the technology they are engaging with. For example, some large LLMs now have a disclaimer that output may be misleading or false which alerts the user to the fact that LLMs are fallible. On the other hand, if the communication about the limits of a technology is incomplete, misunderstandings may arise. As the role of LLMs in everyday life increases (e.g. as the first result of a search engine), increasing exposure to the disclaimer that LLMs give inaccurate responses may reinforce the belief that people cannot trust the information they encounter, adversely affecting the way they interpret other sources of information such as the news. LLM outputs are deceptive in part because there is a detachment from the labelling of training data and the uncertainty of the output. Where a human would convey uncertainty in their communication, LLMs do not.

Whilst there are important limits to technological interventions to achieve normative goals, some people will still have a tendency to overestimate the capabilities of and defer to technology. It is thus key that efforts are made towards designing technology in ways that both benefit the system and acknowledge its limits.

The typical (philosophical) conception of trust is understood as:

A trusts B with regard to X

Trustworthiness has moral and an epistemic requirements:

Epistemic:

To know whether something is competent and know the limits of that competence

Ethical:

To know if the entity being trusted is honest and benevolent

It is critical to differentiate between trust and trustworthiness. Trust is an intentional stance taken by an entity, while trustworthiness is a property or a relation which perhaps can be measured. Trust in technology often reduces to reliance. Trust need not be compositional, i.e., A can trust B without trusting all the constituent parts of B. In the application of system design, trust functions as a social enabler, allowing social entities to function without requiring third-party guarantees.

There is some debate over whether global values really exist. Within this debate, the following are some important questions:

Understand:

How do we define the value?

Define:

Who decides what the relevant values are?

Alignment:

A joint-expectation on what actions are plausible, and which ones are good

Reconcile:

How do we decide whether the components of an STS are value-aligned, when there are differences between parts?

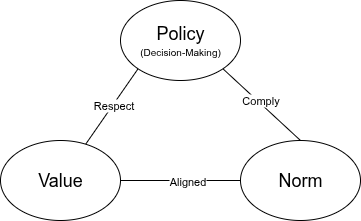

One possible characteristic of value is that it forms the criteria for comparing situations. A norm can be understood as a preference relation that pushes an entity towards actions leading to a situation where a value is upheld. This implies that the norms adopted influence the kinds of values that can be upheld. A value-conflict can therefore be defined as differences in estimates of goal states/situations, based on actions pushed by the norms. Can value-alignment be defined as the absence of value-conflict?

An alternate definition of value-alignment is that if two entities A and B take the same action, given the same context, one can form a belief that A and B are value-aligned. The presence of value-alignment creates the presence of an in-group vis-a-vis the out-group that (by definition) does not align with the same values. Members of the in-group have a common ordering over shared values.

It is not very well-understood how one should choose between values. Values that an entity is unwilling to negotiate on, are called non-negotiable values. These could also be viewed as sacred values.

Designing a system given a set of shared values, considerations include how to encode the requirements that flow from those values, and discerning the evidence or data that is needed for the design of systems. It is unclear whether a value is something that can be observable by perception, or is something that is completely cognitive. Agent architectures that could represent values include:

• $\mathrm{■}$

  Reactive

• $\mathrm{■}$

  Deliberative (e.g., Belief Desire Intention, BDI)

• $\mathrm{■}$

  Symbolic

• $\mathrm{■}$

  Sub-symbolic

For sub-symbolic architectures, if the mechanism is very good then representation becomes invisible. Sub-symbolic reflects values present in the training data; values can be represented using reinforcement learning from human feedback (RLHF) [1]. Possible mechanisms for collating the training data for sub-symbolic approaches include social networks and purposeful collection.

Exploring whether values can be mixed in an STS, and if it is possible to validate a consistent mixing of values, is a gap in research. Possibly, validation of value-mixing can only be achieved in specific forms of value-failure (e.g., discrimination based on race or gender).

Policies, norms, and values exhibit inherent potential conflicts and dynamic evolution within STS. Formal argumentation establishes a principled methodology for representing and reasoning about these entities, extending to norm violations and causal relationships. The integrated framework comprises:

Unified Representation:

Norms, policies, and their violation conditions (disobedience) are modelled uniformly as defeasible rules. Value sets annotate norms, while priority relations operate over rules or their value associations

Conflict & Violation Resolution:

Argumentation resolves conflicts between competing norms/policies and adjudicates norm violations. Embedded in belief-desire-norm-policy-intention (BDNPI) architectures, this enables autonomous agents that reconcile policy guidance with normative constraints, including disobedience detection and sanction reasoning

Dynamic Adaptation:

Runtime modification of norms, policies, and violation thresholds is facilitated through argumentation revision mechanisms, maintaining system consistency during change

Causal Attribution:

Argumentation frameworks can be extended to integrate causal inference for modelling responsibility attribution. This enables: (1) trust establishment via transparent causality chains; (2) precise accountability assignment for norm violations; and (3) root-cause analysis of system failures across multi-stakeholder interactions

Computational Viability:

Locality-driven computation and modular design overcome complexity barriers, ensuring efficient handling of dynamic rule updates and causal reasoning

Neuro-Symbolic Integration:

LLMs transform natural language norms/violation clauses into formal defeasible rules, while argumentation provides rigorous conflict and causality resolution – enabling hybrid reasoning unattainable by monolithic approaches

In governing an STS, it is important to acknowledge that any STS that needs to adapt to changing participants and technologies will become a complex system. If such a system is to be adaptable to change, then it needs to be governed rather loosely. A general guiding principle could be to identify the forces that move the STS to some attractor point, and try to govern those forces. Diving deeper, we discussed the reasoning model required of agents, in an agent-based simulation of an STS. Some relevant questions include:

• $\mathrm{■}$

  How deep should agent reasoning attempt to go? Would reactive agents with appropriate calibration suffice? Or are BDI agents necessary?

• $\mathrm{■}$

  Can the two agent architectures be systematically bridged?

• $\mathrm{■}$

  What are the HPC requirements that agent-based models should consider, while being designed?

• $\mathrm{■}$

  Are there integrative techniques for merging sampling data, with deeper survey-type models?

• $\mathrm{■}$

  Which communities need to attempt integrating their techniques? (e.g., computer science, social psychology, behavioural economics)

It was recognised that we need to have some reference problems the community could attempt to solve. One suggestion was that the community agrees on a small set of small-but-complex systems, and attempt to answer each of the above questions systematically. This could possibly involve holding an iterated competition that starts from the same codebase each time it is held. Learnings from multi-year competitions could be applied to bigger and more realistic STS.

Policy modelling is a multidisciplinary field that synthesises insights from behavioural sciences, social simulation, reasoning, humanities, and history. In policy modelling, data doesn’t mean reasoning. Agent behaviour for simulation can come from data, but it can also come from asking what people do and what is important to them. The latter covers humans’ reasoning process.

In simulation, the input for how (human) agents reason can rely on basic assumptions (e.g. norm-obeying willingness based on political affiliation), theories (e.g. social-psychology theories), and actual data collected (e.g. using various social science methodologies). It is especially interesting and relevant for policy modelling in STS how (if at all) humans perform normative reasoning when making decisions. While there seems to be an agreement that integrating the different approaches would be beneficial for the fruitfulness of simulation, it is far from obvious how the integration should happen. Integrating diverse approaches is hence an open challenge for the community.

Building on abstract conceptual ideas, the discussion transitioned to consider an educational STS. Education presents a useful case study of an STS that is dynamic and complex. In particular, we considered teaching computer science at university. Education and learning is a domain where behavioural change, due to technological decisions and processes, might be both short and long-term. An educational STS is a (as, we imagine, many STS are) complex system. The complexity means that we have no systematic way of determining which point of intervention is the best, or if the intervention will cause the future to be as we envisioned. Important questions discussed included:

• $\mathrm{■}$

  What are the challenges of an STS where each student might rely on one or more GenAI systems (supplied or not supplied by the university)?

• $\mathrm{■}$

  Would GenAI systems be considered as personal agents? How should GenAI be integrated into an STS?

• $\mathrm{■}$

  What are, or ought to be, the learning goals?

• $\mathrm{■}$

  How do we reach learning goals when tools change substantially, explicitly accounting for skills that we believe could be lost?

• $\mathrm{■}$

  How do we evolve or change goals over time? For example, reading and writing are currently considered important. Will they continue to be so? Are they important for critical thinking?

• $\mathrm{■}$

  Are we using tools as assistive technologies, or skill replacement technologies?

• $\mathrm{■}$

  What happens when our values and goals change? Some jobs/careers may diminish in importance when tasks are automated, so that they are not coveted anymore.

Loose boundaries of terminology related to STS confuses how to define (mis)use of a system, which in turn makes STS difficult to regulate. Normativity, trust, and values are fundamental to STS, yet there are important challenges with attempts to granulate these concepts into entities that can be encoded. Formal argumentation could be useful to represent and reason about the conflicts associated with policies, values, and norms. An educational STS provides a helpful use case to explore how the conceptual issues discussed actualise and how challenges could be addressed.

The subgroup of the seminar addressed questions arising from the use of constraint and policy languages. Presentations of the ODRL Policy language and the SHACL constraint language were given. The group discussed challenges around using SHACL and ODRL, how they relate, how they differ, and how they can be used in combination. We found that SHACL can at least serve to disambiguate the expression of constraints in ODRL. Both languages are W3C Recommendations.

A standardisation strategy discussion was triggered. It included the suggestions to amend the respective standards to ease the combination of ODRL and SHACL. Standardisation gaps were identified and the group discussed the formal semantics of ODRL and how to update the current W3C Recommendation. Given the work on RDF 1.2, the group explored how to use the new possibilities for annotation of data coming with those updates.

Web agents and the Web Agents Community Group and their work were presented. We discussed how policy and constraint languages can help in an agent scenario. New challenges stemming from web agents for policy and constraint management were identified. Annotation and protocol issues were at the core of our discussion.

A policy language is a formal or semi-formal language used to express various types of rules (i.e., permissions, obligations, and prohibitions) that govern access and usage of resources or regulate behaviour or state of affairs in open distributed systems. It typically includes constructs to define subjects, actions, objects, and conditions under which actions or states are allowed or denied. Policy languages are used in a wide range of domains, including access and usage control, data usage, privacy, and digital rights management.

The ODRL Evaluator is designed to produce conclusions by performing logical reasoning over ODRL policies, an evaluation request, and a state of the world. Various approaches have been explored to achieve this, including mappings to finite state machine systems, formal logic systems, Answer Set Programming (ASP), and logic programming languages such as Prolog.

In this seminar, the potential use of SHACL has been explored. While SHACL has demonstrated effectiveness in validating the syntactic correctness of ODRL policies, it also shows promise as a possible reasoning engine underlying the ODRL Evaluator.

The group intends to dig deeper into the topic of ODRL semantics and using SHACL constraints. The results are such that a scientific article seems at reach. On the basis of that article, future work on ODRL will be suggested. This may lead to the creation of a new ODRL Working Group in W3C that would create a simplified profile of ODRL 2.2, and also do some maintenance work (i.e., correcting some issues in ODRL 1.1’s W3C Note) and allow for the use of SHACL in the constraint element of ODRL. It could also further explore how to create Policy annotations of data using RDF 1.2. To kick off this initiative, a Workshop needs to be organised.
