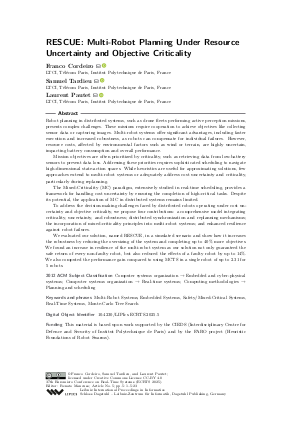

RESCUE: Multi-Robot Planning Under Resource Uncertainty and Objective Criticality

Authors Franco Cordeiro , Samuel Tardieu , Laurent Pautet

PDF

File

Thumbnail PDF
PDF
LIPIcs.ECRTS.2025.5.pdf
  • Filesize: 1.05 MB
  • 23 pages

Document Identifiers

Subject Classification

ACM Subject Classification
  • Computer systems organization → Embedded and cyber-physical systems
  • Computer systems organization → Real-time systems
  • Computing methodologies → Planning and scheduling
Keywords
  • Multi-Robot Systems
  • Embedded Systems
  • Safety/Mixed-Critical Systems
  • Real-Time Systems
  • Monte-Carlo Tree Search

Metrics

  • Access Statistics
  • Total Accesses (updated on a weekly basis)
    0
    PDF Downloads
    0
    Metadata Views

Abstract

Robot planning in distributed systems, such as drone fleets performing active perception missions, presents complex challenges. These missions require cooperation to achieve objectives like collecting sensor data or capturing images. Multi-robot systems offer significant advantages, including faster execution and increased robustness, as robots can compensate for individual failures. However, resource costs, affected by environmental factors such as wind or terrain, are highly uncertain, impacting battery consumption and overall performance.
Mission objectives are often prioritized by criticality, such as retrieving data from low-battery sensors to prevent data loss. Addressing these priorities requires sophisticated scheduling to navigate high-dimensional state-action spaces. While heuristics are useful for approximating solutions, few approaches extend to multi-robot systems or adequately address cost uncertainty and criticality, particularly during replanning.
The Mixed-Criticality (MC) paradigm, extensively studied in real-time scheduling, provides a framework for handling cost uncertainty by ensuring the completion of high-critical tasks. Despite its potential, the application of MC in distributed systems remains limited.
To address the decision-making challenges faced by distributed robots operating under cost uncertainty and objective criticality, we propose four contributions: a comprehensive model integrating criticality, uncertainty, and robustness; distributed synchronization and replanning mechanisms; the incorporation of mixed-criticality principles into multi-robot systems; and enhanced resilience against robot failures.
We evaluated our solution, named RESCUE, in a simulated scenario and show how it increases the robustness by reducing the oversizing of the system and completing up to 40% more objectives. We found an increase in resilience of the multi-robot system as our solution not only guaranteed the safe return of every non-faulty robot, but also reduced the effects of a faulty robot by up to 14%. We also computed the performance gain compared to using MCTS in a single robot of up to 2.31 for 5 robots.

Cite As Get BibTex

Franco Cordeiro, Samuel Tardieu, and Laurent Pautet. RESCUE: Multi-Robot Planning Under Resource Uncertainty and Objective Criticality. In 37th Euromicro Conference on Real-Time Systems (ECRTS 2025). Leibniz International Proceedings in Informatics (LIPIcs), Volume 335, pp. 5:1-5:23, Schloss Dagstuhl – Leibniz-Zentrum für Informatik (2025) https://doi.org/10.4230/LIPIcs.ECRTS.2025.5

Author Details

Franco Cordeiro
  • LTCI, Télécom Paris, Institut Polytechnique de Paris, France
Samuel Tardieu
  • LTCI, Télécom Paris, Institut Polytechnique de Paris, France
Laurent Pautet
  • LTCI, Télécom Paris, Institut Polytechnique de Paris, France

Funding

This material is based upon work supported by the CIEDS (Interdisciplinary Centre for Defence and Security of Institut Polytechnique de Paris) and by the FARO project (Heuristic Foundations of Robot Swarms).

References

  1. Semonti Banik, Sajal Chandra Banik, and Sarker Safat Mahmud. Path planning approaches in multi-robot system: A review. Engineering Reports, page e13035, 2024. URL: https://doi.org/10.1002/eng2.13035.
  2. Graeme Best, Oliver M Cliff, Timothy Patten, Ramgopal R Mettu, and Robert Fitch. Dec-MCTS: Decentralized planning for multi-robot active perception. The International Journal of Robotics Research, 38(2-3):316-337, 2019. URL: https://doi.org/10.1177/0278364918755924.
  3. Lauren Bramblett, Branko Miloradović, Patrick Sherman, Alessandro V Papadopoulos, and Nicola Bezzo. Robust online epistemic replanning of multi-robot missions. In 2024 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pages 13229-13236. IEEE, 2024. URL: https://doi.org/10.1109/IROS58592.2024.10802214.
  4. Benjamin M. Brosgol. DO-178C: the next avionics safety standard. In Ricky E. Sward, Michael B. Feldman, Dan Eilers, Jean-Pierre Rosen, Frank Singhoff, Julien Delange, Mark Gardinier, Karl A. Nyberg, and Jeff Boleng, editors, Proceedings of the 2011 Annual ACM SIGAda International Conference on Ada, Denver, Colorado, USA, November 6-10, 2011, SIGAda '11, pages 5-6, New York, NY, USA, 2011. ACM. URL: https://doi.org/10.1145/2070337.2070341.
  5. Cameron B Browne, Edward Powley, Daniel Whitehouse, Simon M Lucas, Peter I Cowling, Philipp Rohlfshagen, Stephen Tavener, Diego Perez, Spyridon Samothrakis, and Simon Colton. A survey of monte carlo tree search methods. IEEE Transactions on Computational Intelligence and AI in games, 4(1):1-43, 2012. URL: https://doi.org/10.1109/TCIAIG.2012.2186810.
  6. Alan Burns and Robert I. Davis. A survey of research into mixed criticality systems. ACM Computing Surveys, 50(6):82:1-82:37, November 2018. URL: https://doi.org/10.1145/3131347.
  7. Alan Burns, Robert I. Davis, Sanjoy Baruah, and Iain Bate. Robust mixed-criticality systems. IEEE Transactions on Computers, 67(10):1478-1491, 2018. URL: https://doi.org/10.1109/TC.2018.2831227.
  8. Hamza Chakraa, François Guérin, Edouard Leclercq, and Dimitri Lefebvre. Optimization techniques for multi-robot task allocation problems: Review on the state-of-the-art. Robotics and Autonomous Systems, 168:104492, October 2023. URL: https://doi.org/10.1016/j.robot.2023.104492.
  9. Franco Cordeiro, Samuel Tardieu, and Laurent Pautet. Shackling uncertainty using mixed criticality in monte-carlo tree search. In 2024 IEEE 14th International Symposium on Industrial Embedded Systems (SIES), pages 34-41. IEEE, 2024. URL: https://doi.org/10.1109/SIES62473.2024.10767910.
  10. Olivier Cros, Laurent George, and Xiaoting Li. A protocol for mixed-criticality management in switched ethernet networks. In Workshop on Mixed Criticality Systems (WMC), 2015. URL: https://api.semanticscholar.org/CorpusID:20814803.
  11. Giovanni D’urso, James Ju Heon Lee, Oscar Pizarro, Chanyeol Yoo, and Robert Fitch. Hierarchical MCTS for scalable multi-vessel multi-float systems. In 2021 IEEE International Conference on Robotics and Automation (ICRA), pages 8664-8670. IEEE, 2021. URL: https://doi.org/10.1109/ICRA48506.2021.9561064.
  12. Giada Galati, Stefano Primatesta, and Alessandro Rizzo. Auction-based task allocation and motion planning for multi-robot systems with human supervision. Journal of Intelligent & Robotic Systems, 109(2):24, September 2023. URL: https://doi.org/10.1007/s10846-023-01935-x.
  13. Caelan Reed Garrett, Rohan Chitnis, Rachel Holladay, Beomjoon Kim, Tom Silver, Leslie Pack Kaelbling, and Tomás Lozano-Pérez. Integrated task and motion planning. Annual review of control, robotics, and autonomous systems, 4(1):265-293, 2021. URL: https://doi.org/10.1146/annurev-control-091420-084139.
  14. Brian P Gerkey and Maja J Matarić. A formal analysis and taxonomy of task allocation in multi-robot systems. The International journal of robotics research, 23(9):939-954, 2004. URL: https://doi.org/10.1177/0278364904045564.
  15. Dip Goswami, Martin Lukasiewycz, Reinhard Schneider, and Samarjit Chakraborty. Time-triggered implementations of mixed-criticality automotive software. In Wolfgang Rosenstiel and Lothar Thiele, editors, 2012 Design, Automation & Test in Europe Conference & Exhibition (DATE), pages 1227-1232. IEEE, 2012. URL: https://doi.org/10.1109/DATE.2012.6176680.
  16. Shuai D Han, Edgar J Rodriguez, and Jingjin Yu. Sear: A polynomial-time multi-robot path planning algorithm with expected constant-factor optimality guarantee. In 2018 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pages 1-9. IEEE, 2018. URL: https://doi.org/10.1109/IROS.2018.8594417.
  17. Zaharuddeen Haruna, Muhammed Bashir Mu’azu, Abubakar Umar, and Glory Okpowodu Ufuoma. Path planning algorithms for mobile robots: A survey. In Motion Planning for Dynamic Agents. IntechOpen, 2023. URL: https://doi.org/10.5772/intechopen.1002655.
  18. Constantin Hofmann, Xinhong Liu, Marvin May, and Gisela Lanza. Hybrid monte carlo tree search based multi-objective scheduling. Production Engineering, 17:133-144, 2022. URL: https://doi.org/10.5445/IR/1000150664.
  19. Pengcheng Huang, Pratyush Kumar, Georgia Giannopoulou, and Lothar Thiele. Energy efficient dvfs scheduling for mixed-criticality systems. In International Conference on Embedded Software (EMSOFT), pages 1-10, 2014. URL: https://doi.org/10.1145/2656045.2656057.
  20. Eliahu Khalastchi and Meir Kalech. Fault detection and diagnosis in multi-robot systems: A survey. Sensors, 19(18):4019, 2019. URL: https://doi.org/10.3390/s19184019.
  21. Levente Kocsis and Csaba Szepesvári. Bandit based monte-carlo planning. In European conference on machine learning, pages 282-293. Springer, 2006. URL: https://doi.org/10.1007/11871842_29.
  22. Georgios Kyprianou, Lefteris Doitsidis, and Savvas A Chatzichristofis. Towards the achievement of path planning with multi-robot systems in dynamic environments. Journal of Intelligent & Robotic Systems, 104(1):15, 2022. URL: https://doi.org/10.1007/s10846-021-01555-3.
  23. Karthik Lakshmanan, Dionisio de Niz, Ragunathan Rajkumar, and Gabriel Moreno. Resource allocation in distributed mixed-criticality cyber-physical systems. In 2010 IEEE 30th International Conference on Distributed Computing Systems, pages 169-178. IEEE Computer Society, 2010. URL: https://doi.org/10.1109/ICDCS.2010.91.
  24. Steven M. LaValle. Planning algorithms. Cambridge University Press, 2006. Google Scholar
  25. Kilho Lee, Minsu Kim, Hayeon Kim, Hoon Sung Chwa, Jaewoo Lee, Jinkyu Lee, and Insik Shin. JMC: Jitter-based mixed-criticality scheduling for distributed real-time systems. IEEE Internet of Things Journal, 6(4):6310-6324, 2019. URL: https://doi.org/10.1109/JIOT.2019.2915790.
  26. Di Liu, Jelena Spasic, Nan Guan, Gang Chen, Songran Liu, Todor Stefanov, and Wang Yi. EDF-VD scheduling of mixed-criticality systems with degraded quality guarantees. In 2016 IEEE Real-Time Systems Symposium (RTSS). IEEE, November 2016. URL: https://doi.org/10.1109/rtss.2016.013.
  27. Zeyuan Ma and Jing Chen. Multi-UAV urban logistics task allocation method based on MCTS. Drones, 7(11):679, 2023. URL: https://doi.org/10.3390/drones7110679.
  28. Eslam Nabil Mobarez, A Sarhan, and MM Ashry. Obstacle avoidance for multi-uav path planning based on particle swarm optimization. In IOP Conference Series: Materials Science and Engineering, volume 1172, page 012039. IOP Publishing, 2021. URL: https://doi.org/10.1088/1757-899X/1172/1/012039.
  29. Steve Vestal. Preemptive scheduling of multi-criticality systems with varying degrees of execution time assurance. In 28th IEEE International Real-Time Systems Symposium (RTSS 2007), pages 239-243, 2007. URL: https://doi.org/10.1109/RTSS.2007.47.
  30. Yi-Wen Zhang and Rong-Kun Chen. A survey of energy-aware scheduling in mixed-criticality systems. Journal of Systems Architecture, 127:102524, 2022. URL: https://doi.org/10.1016/j.sysarc.2022.102524.
