A Dichotomy for 1-Planarity with Restricted Crossing Types Parameterized by Treewidth

Authors Sergio Cabello , Alexander Dobler , Gašper Fijavž , Thekla Hamm , Mirko H. Wagner

PDF

File

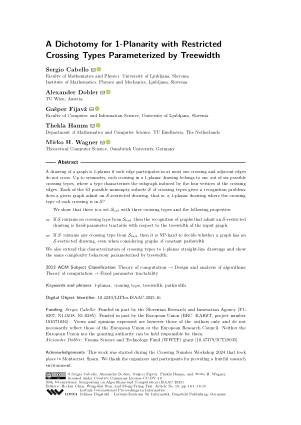

Thumbnail PDF
PDF
LIPIcs.ISAAC.2025.16.pdf
  • Filesize: 0.82 MB
  • 15 pages

Document Identifiers

Subject Classification

ACM Subject Classification
  • Theory of computation → Design and analysis of algorithms
  • Theory of computation → Fixed parameter tractability
Keywords
  • 1-planar
  • crossing type
  • treewidth
  • pathwidth

Metrics

  • Access Statistics
  • Total Accesses (updated on a weekly basis)
    0
    PDF Downloads
    0
    Metadata Views

Abstract

A drawing of a graph is 1-planar if each edge participates in at most one crossing and adjacent edges do not cross. Up to symmetry, each crossing in a 1-planar drawing belongs to one out of six possible crossing types, where a type characterizes the subgraph induced by the four vertices of the crossing edges. Each of the 63 possible nonempty subsets 𝒮 of crossing types gives a recognition problem: does a given graph admit an 𝒮-restricted drawing, that is, a 1-planar drawing where the crossing type of each crossing is in 𝒮?
We show that there is a set 𝒮_bad with three crossing types and the following properties:
- If 𝒮 contains no crossing type from 𝒮_bad, then the recognition of graphs that admit an 𝒮-restricted drawing is fixed-parameter tractable with respect to the treewidth of the input graph.
- If 𝒮 contains any crossing type from 𝒮_bad, then it is NP-hard to decide whether a graph has an 𝒮-restricted drawing, even when considering graphs of constant pathwidth.  We also extend this characterization of crossing types to 1-planar straight-line drawings and show the same complexity behaviour parameterized by treewidth.

Cite As Get BibTex

Sergio Cabello, Alexander Dobler, Gašper Fijavž, Thekla Hamm, and Mirko H. Wagner. A Dichotomy for 1-Planarity with Restricted Crossing Types Parameterized by Treewidth. In 36th International Symposium on Algorithms and Computation (ISAAC 2025). Leibniz International Proceedings in Informatics (LIPIcs), Volume 359, pp. 16:1-16:15, Schloss Dagstuhl – Leibniz-Zentrum für Informatik (2025) https://doi.org/10.4230/LIPIcs.ISAAC.2025.16

Author Details

Sergio Cabello
  • Faculty of Mathematics and Physics, University of Ljubljana, Slovenia
  • Institute of Mathematics, Physics and Mechanics, Ljubljana, Slovenia
Alexander Dobler
  • TU Wien, Austria
Gašper Fijavž
  • Faculty of Computer and Information Science, University of Ljubljana, Slovenia
Thekla Hamm
  • Department of Mathematics and Computer Science, TU Eindhoven, The Netherlands
Mirko H. Wagner
  • Theoretical Computer Science, Osnabrück University, Germany

Funding

  • Cabello, Sergio: Funded in part by the Slovenian Research and Innovation Agency (P1-0297, N1-0218, N1-0285). Funded in part by the European Union (ERC, KARST, project number 101071836). Views and opinions expressed are however those of the authors only and do not necessarily reflect those of the European Union or the European Research Council. Neither the European Union nor the granting authority can be held responsible for them.
  • Dobler, Alexander: Vienna Science and Technology Fund (WWTF) grant [10.47379/ICT19035].

Acknowledgements

This work was started during the Crossing Number Workshop 2024 that took place in Montserrat, Spain. We thank the organizers and participants for providing a fruitful research environment.

References

  1. Michael J. Bannister, Sergio Cabello, and David Eppstein. Parameterized complexity of 1-planarity. J. Graph Algorithms Appl., 22(1):23-49, 2018. URL: https://doi.org/10.7155/JGAA.00457.
  2. Giuseppe Di Battista and Roberto Tamassia. Incremental planarity testing (extended abstract). In 30th Annual Symposium on Foundations of Computer Science, pages 436-441. IEEE Computer Society, 1989. URL: https://doi.org/10.1109/SFCS.1989.63515.
  3. Therese Biedl, Prosenjit Bose, and Karthik Murali. A parameterized algorithm for vertex and edge connectivity of embedded graphs. In 32nd Annual European Symposium on Algorithms, ESA 2024, volume 308 of LIPIcs, pages 24:1-24:15, 2024. URL: https://doi.org/10.4230/LIPICS.ESA.2024.24.
  4. Therese Biedl and Karthik Murali. On computing the vertex connectivity of 1-plane graphs. In 50th International Colloquium on Automata, Languages, and Programming (ICALP 2023), volume 261 of LIPIcs, pages 23:1-23:16, 2023. URL: https://doi.org/10.4230/LIPIcs.ICALP.2023.23.
  5. Daniel Bienstock and Nathaniel Dean. Bounds for rectilinear crossing numbers. J. Graph Theory, 17(3):333-348, 1993. URL: https://doi.org/10.1002/JGT.3190170308.
  6. Hans L. Bodlaender. A linear-time algorithm for finding tree-decompositions of small treewidth. SIAM J. Comput., 25(6):1305-1317, 1996. URL: https://doi.org/10.1137/S0097539793251219.
  7. Prosenjit Bose, Jean-Lou De Carufel, Anil Maheshwari, and Karthik Murali. On 1-planar graphs with bounded cop-number. Theor. Comput. Sci., 1037:115160, 2025. URL: https://doi.org/10.1016/J.TCS.2025.115160.
  8. Franz J. Brandenburg. On 4-map graphs and 1-planar graphs and their recognition problem. CoRR, abs/1509.03447, 2015. URL: https://arxiv.org/abs/1509.03447.
  9. Sergio Cabello and Bojan Mohar. Adding one edge to planar graphs makes crossing number and 1-planarity hard. SIAM J. Comput., 42(5):1803-1829, 2013. URL: https://doi.org/10.1137/120872310.
  10. Bruno Courcelle. The monadic second-order logic of graphs. I. Recognizable sets of finite graphs. Inform. and Comput., 85(1):12-75, 1990. URL: https://doi.org/10.1016/0890-5401(90)90043-H.
  11. Marek Cygan, Fedor V. Fomin, Lukasz Kowalik, Daniel Lokshtanov, Dániel Marx, Marcin Pilipczuk, Michal Pilipczuk, and Saket Saurabh. Parameterized Algorithms. Springer, 2015. URL: https://doi.org/10.1007/978-3-319-21275-3.
  12. Walter Didimo, Giuseppe Liotta, and Fabrizio Montecchiani. A survey on graph drawing beyond planarity. ACM Comput. Surv., 52(1):4:1-4:37, 2019. URL: https://doi.org/10.1145/3301281.
  13. Reinhard Diestel. Graph Theory, 4th Edition, volume 173 of Graduate texts in mathematics. Springer, 2012. Google Scholar
  14. Rodney G. Downey and Michael R. Fellows. Fundamentals of Parameterized Complexity. Texts in Computer Science. Springer, 2013. URL: https://doi.org/10.1007/978-1-4471-5559-1.
  15. István Fáry. On straight-line representation of planar graphs. Acta Sci. Math. (Szeged), 11:229-233, 1948. Google Scholar
  16. Alexander Grigoriev and Hans L. Bodlaender. Algorithms for graphs embeddable with few crossings per edge. Algorithmica, 49(1):1-11, 2007. URL: https://doi.org/10.1007/S00453-007-0010-X.
  17. Martin Grohe. Computing crossing numbers in quadratic time. J. Comput. Syst. Sci., 68(2):285-302, 2004. URL: https://doi.org/10.1016/J.JCSS.2003.07.008.
  18. Carsten Gutwenger and Petra Mutzel. A linear time implementation of SPQR-trees. In Graph Drawing, 8th International Symposium, GD 2000, volume 1984 of Lecture Notes in Computer Science, pages 77-90, 2000. URL: https://doi.org/10.1007/3-540-44541-2_8.
  19. Thekla Hamm and Petr Hlinený. Parameterised partially-predrawn crossing number. In 38th International Symposium on Computational Geometry, SoCG 2022, volume 224 of LIPIcs, pages 46:1-46:15, 2022. URL: https://doi.org/10.4230/LIPICS.SOCG.2022.46.
  20. Seok-Hee Hong, Peter Eades, Giuseppe Liotta, and Sheung-Hung Poon. Fáry’s theorem for 1-planar graphs. In Computing and Combinatorics - 18th Annual International Conference, COCOON 2012, volume 7434 of Lecture Notes in Computer Science, pages 335-346, 2012. URL: https://doi.org/10.1007/978-3-642-32241-9_29.
  21. Seok-Hee Hong and Takeshi Tokuyama, editors. Beyond Planar Graphs, Communications of NII Shonan Meetings. Springer, 2020. URL: https://doi.org/10.1007/978-981-15-6533-5.
  22. Stephen G. Kobourov, Giuseppe Liotta, and Fabrizio Montecchiani. An annotated bibliography on 1-planarity. Comput. Sci. Rev., 25:49-67, 2017. URL: https://doi.org/10.1016/J.COSREV.2017.06.002.
  23. Vladimir P. Korzhik and Bojan Mohar. Minimal obstructions for 1-immersions and hardness of 1-planarity testing. J. Graph Theory, 72(1):30-71, 2013. URL: https://doi.org/10.1002/JGT.21630.
  24. Kazimierz Kuratowski. Sur le probleme des courbes gauches en topologie. Fundamenta mathematicae, 15(1):271-283, 1930. Google Scholar
  25. Bojan Mohar and Carsten Thomassen. Graphs on surfaces. Johns Hopkins Studies in the Mathematical Sciences. Johns Hopkins University Press, Baltimore, MD, 2001. Google Scholar
  26. Miriam Münch and Ignaz Rutter. Parameterized algorithms for beyond-planar crossing numbers. In 32nd International Symposium on Graph Drawing and Network Visualization, GD 2024, volume 320 of LIPIcs, pages 25:1-25:16, 2024. URL: https://doi.org/10.4230/LIPICS.GD.2024.25.
  27. Carsten Thomassen. Rectilinear drawings of graphs. J. Graph Theory, 12(3):335-341, 1988. URL: https://doi.org/10.1002/JGT.3190120306.
  28. Klaus Wagner. Bemerkungen zum Vierfarbenproblem. Jahresbericht der Deutschen Mathematiker-Vereinigung, 46:26-32, 1936. Google Scholar
  29. Meirav Zehavi. Parameterized analysis and crossing minimization problems. Comput. Sci. Rev., 45:100490, 2022. URL: https://doi.org/10.1016/J.COSREV.2022.100490.
