Recognizing 2-Layer and Outer k-Planar Graphs

Authors Yasuaki Kobayashi , Yuto Okada , Alexander Wolff

PDF

File

Thumbnail PDF
PDF

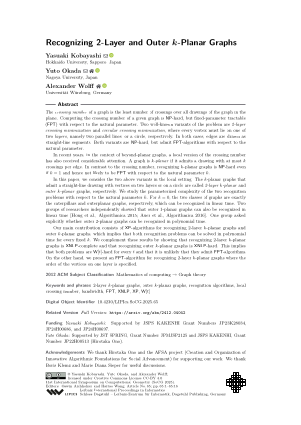

LIPIcs.SoCG.2025.65.pdf
  • Filesize: 0.97 MB
  • 16 pages

Document Identifiers

Related Versions

Subject Classification

ACM Subject Classification
  • Mathematics of computing → Graph theory
Keywords
  • 2-layer k-planar graphs
  • outer k-planar graphs
  • recognition algorithms
  • local crossing number
  • bandwidth
  • FPT
  • XNLP
  • XP
  • W[t]

Metrics

  • Access Statistics
  • Total Accesses (updated on a weekly basis)
    0
    PDF Downloads
    0
    Metadata Views

Abstract

The crossing number of a graph is the least number of crossings over all drawings of the graph in the plane. Computing the crossing number of a given graph is NP-hard, but fixed-parameter tractable (FPT) with respect to the natural parameter. Two well-known variants of the problem are 2-layer crossing minimization and circular crossing minimization, where every vertex must lie on one of two layers, namely two parallel lines, or a circle, respectively. In both cases, edges are drawn as straight-line segments. Both variants are NP-hard, but admit FPT-algorithms with respect to the natural parameter.
In recent years, in the context of beyond-planar graphs, a local version of the crossing number has also received considerable attention. A graph is k-planar if it admits a drawing with at most k crossings per edge. In contrast to the crossing number, recognizing k-planar graphs is NP-hard even if k = 1 and hence not likely to be FPT with respect to the natural parameter k.
In this paper, we consider the two above variants in the local setting. The k-planar graphs that admit a straight-line drawing with vertices on two layers or on a circle are called 2-layer k-planar and outer k-planar graphs, respectively. We study the parameterized complexity of the two recognition problems with respect to the natural parameter k. For k = 0, the two classes of graphs are exactly the caterpillars and outerplanar graphs, respectively, which can be recognized in linear time. Two groups of researchers independently showed that outer 1-planar graphs can also be recognized in linear time [Hong et al., Algorithmica 2015; Auer et al., Algorithmica 2016]. One group asked explicitly whether outer 2-planar graphs can be recognized in polynomial time.
Our main contribution consists of XP-algorithms for recognizing 2-layer k-planar graphs and outer k-planar graphs, which implies that both recognition problems can be solved in polynomial time for every fixed k. We complement these results by showing that recognizing 2-layer k-planar graphs is XNLP-complete and that recognizing outer k-planar graphs is XNLP-hard. This implies that both problems are W[t]-hard for every t and that it is unlikely that they admit FPT-algorithms. On the other hand, we present an FPT-algorithm for recognizing 2-layer k-planar graphs where the order of the vertices on one layer is specified.

Cite As Get BibTex

Yasuaki Kobayashi, Yuto Okada, and Alexander Wolff. Recognizing 2-Layer and Outer k-Planar Graphs. In 41st International Symposium on Computational Geometry (SoCG 2025). Leibniz International Proceedings in Informatics (LIPIcs), Volume 332, pp. 65:1-65:16, Schloss Dagstuhl – Leibniz-Zentrum für Informatik (2025) https://doi.org/10.4230/LIPIcs.SoCG.2025.65

Author Details

Yasuaki Kobayashi
  • Hokkaido University, Sapporo, Japan
Yuto Okada
  • Nagoya University, Japan
Alexander Wolff
  • Universität Würzburg, Germany

Funding

  • Kobayashi, Yasuaki: Supported by JSPS KAKENHI Grant Numbers JP23K28034, JP24H00686, and JP24H00697.
  • Okada, Yuto: Supported by JST SPRING, Grant Number JPMJSP2125 and JSPS KAKENHI, Grant Number JP22H00513 (Hirotaka Ono).

Acknowledgements

We thank Hirotaka Ono and the AFSA project (Creation and Organization of Innovative Algorithmic Foundations for Social Advancement) for supporting our work. We thank Boris Klemz and Marie Diana Sieper for useful discussions.
