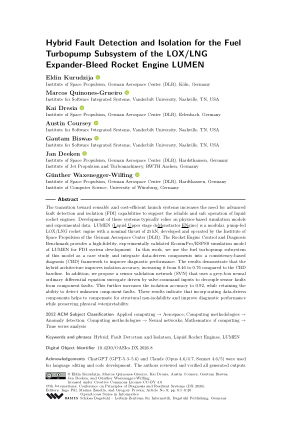

Hybrid Fault Detection and Isolation for the Fuel Turbopump Subsystem of the LOX/LNG Expander-Bleed Rocket Engine LUMEN

Authors Eldin Kurudzija , Marcos Quinones-Grueiro , Kai Dresia , Austin Coursey , Gautam Biswas , Jan Deeken , Günther Waxenegger-Wilfing

PDF

File

Thumbnail PDF
PDF
OASIcs.DX.2026.8.pdf
  • Filesize: 1.13 MB
  • 20 pages

Document Identifiers

Subject Classification

ACM Subject Classification
  • Applied computing → Aerospace
  • Computing methodologies → Anomaly detection
  • Computing methodologies → Neural networks
  • Mathematics of computing → Time series analysis
Keywords
  • Hybrid
  • Fault Detection and Isolation
  • Liquid Rocket Engines
  • LUMEN

Metrics

Abstract

The transition toward reusable and cost-efficient launch systems increases the need for advanced fault detection and isolation (FDI) capabilities to support the reliable and safe operation of liquid rocket engines. Development of these systems typically relies on physics-based simulation models and experimental data. LUMEN (Liquid Upper stage deMonstrator ENgine) is a modular, pump-fed LOX/LNG rocket engine with a nominal thrust of 25 kN, developed and operated by the Institute of Space Propulsion of the German Aerospace Center (DLR). The Rocket Engine Control and Diagnosis Benchmark provides a high-fidelity, experimentally validated EcosimPro/ESPSS simulation model of LUMEN for FDI system development. In this work, we use the fuel turbopump subsystem of this model as a case study and integrate data-driven components into a consistency-based diagnosis (CBD) framework to improve diagnostic performance. The results demonstrate that the hybrid architecture improves isolation accuracy, increasing it from 0.46 to 0.76 compared to the CBD baseline. In addition, we propose a sensor validation network (SVN) that uses a grey-box neural ordinary differential equation surrogate driven by valve-command inputs to decouple sensor faults from component faults. This further increases the isolation accuracy to 0.92, while retaining the ability to detect unknown component faults. These results indicate that incorporating data-driven components helps to compensate for structural non-isolability and improve diagnostic performance while preserving physical interpretability.

Cite As Get BibTex

Eldin Kurudzija, Marcos Quinones-Grueiro, Kai Dresia, Austin Coursey, Gautam Biswas, Jan Deeken, and Günther Waxenegger-Wilfing. Hybrid Fault Detection and Isolation for the Fuel Turbopump Subsystem of the LOX/LNG Expander-Bleed Rocket Engine LUMEN. In 37th International Conference on Principles of Diagnosis and Resilient Systems (DX 2026). Open Access Series in Informatics (OASIcs), Volume 148, pp. 8:1-8:20, Schloss Dagstuhl – Leibniz-Zentrum für Informatik (2026) https://doi.org/10.4230/OASIcs.DX.2026.8

Author Details

Eldin Kurudzija
  • Institute of Space Propulsion, German Aerospace Center (DLR), Köln, Germany
Marcos Quinones-Grueiro
  • Institute for Software Integrated Systems, Vanderbilt University, Nashville, TN, USA
Kai Dresia
  • Institute of Space Propulsion, German Aerospace Center (DLR), Erlenbach, Germany
Austin Coursey
  • Institute for Software Integrated Systems, Vanderbilt University, Nashville, TN, USA
Gautam Biswas
  • Institute for Software Integrated Systems, Vanderbilt University, Nashville, TN, USA
Jan Deeken
  • Institute of Space Propulsion, German Aerospace Center (DLR), Hardsthausen, Germany
  • Institute of Jet Propulsion and Turbomachinery, RWTH Aachen, Germany
Günther Waxenegger-Wilfing
  • Institute of Space Propulsion, German Aerospace Center (DLR), Hardthausen, Germany
  • Institute of Computer Science, University of Würzburg, Germany

Acknowledgements

ChatGPT (GPT-5.3-5.6) and Claude (Opus 4.6/4.7, Sonnet 4.6/5) were used for language editing and code development. The authors reviewed and verified all generated outputs.
