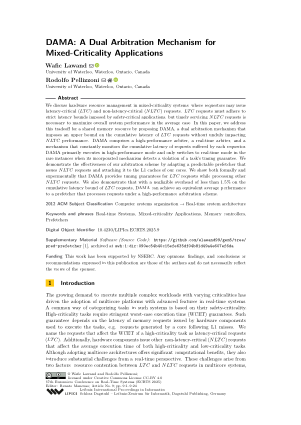

DAMA: A Dual Arbitration Mechanism for Mixed-Criticality Applications

Authors Wafic Lawand , Rodolfo Pellizzoni

PDF HTML 5

Files

Thumbnail PDF
PDF
LIPIcs.ECRTS.2025.9.pdf
  • Filesize: 1.29 MB
  • 24 pages
HTML5 Logo HTML (experimental)
LIPIcs.ECRTS.2025.9.html

Document Identifiers

Subject Classification

ACM Subject Classification
  • Computer systems organization → Real-time system architecture
Keywords
  • Real-time Systems
  • Mixed-criticality Applications
  • Memory controllers
  • Prefetchers
