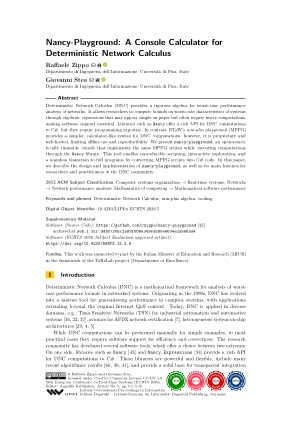

Nancy-Playground: A Console Calculator for Deterministic Network Calculus

Authors Raffaele Zippo , Giovanni Stea

PDF

File

Thumbnail PDF
PDF
LIPIcs.ECRTS.2026.5.pdf
  • Filesize: 1.82 MB
  • 16 pages

Document Identifiers

Subject Classification

ACM Subject Classification
  • Computer systems organization → Real-time systems
  • Networks → Network performance analysis
  • Mathematics of computing → Mathematical software performance
Keywords
  • Deterministic Network Calculus
  • min-plus algebra
  • tooling

Metrics

Abstract

Deterministic Network Calculus (DNC) provides a rigorous algebra for worst-case performance analysis of networks. It allows researchers to compute bounds on worst-case characteristics of systems through algebraic expressions that may appear simple on paper but often require heavy computations, making software support essential. Libraries such as Nancy offer a rich API for DNC computations in C#, but they require programming expertise. In contrast, RTaW’s min-plus playground (MPPG) provides a simpler, calculator-like syntax for DNC computations; however, it is proprietary and web-hosted, limiting offline use and reproducibility. We present nancy-playground, an open-source, locally runnable console that implements the same MPPG syntax while executing computations through the Nancy library. This tool enables reproducible scripting, interactive exploration, and a seamless transition to full programs by converting MPPG scripts into C# code. In this paper, we describe the design and implementation of nancy-playground, as well as its main features for researchers and practitioners in the DNC community.

Cite As Get BibTex

Raffaele Zippo and Giovanni Stea. Nancy-Playground: A Console Calculator for Deterministic Network Calculus. In 38th European Conference on Real-Time Systems (ECRTS 2026). Leibniz International Proceedings in Informatics (LIPIcs), Volume 375, pp. 5:1-5:16, Schloss Dagstuhl – Leibniz-Zentrum für Informatik (2026) https://doi.org/10.4230/LIPIcs.ECRTS.2026.5

Author Details

Raffaele Zippo
  • Dipartimento di Ingegneria dell'Informazione, Università di Pisa, Italy
Giovanni Stea
  • Dipartimento di Ingegneria dell'Informazione, Università di Pisa, Italy

Funding

This work was supported in part by the Italian Ministry of Education and Research (MIUR) in the framework of the FoReLab project (Departments of Excellence).

Supplementary Materials

References

  1. Microsoft documentation on file-based apps. URL: https://learn.microsoft.com/en-us/dotnet/core/sdk/file-based-apps.
  2. NCCoq - Formally Proven Network Calculus. URL: https://gitlab.rts.mpi-sws.org/proux/nc-coq.
  3. Polyglot Notebooks in VS Code. URL: https://code.visualstudio.com/docs/languages/polyglot.
  4. Matteo Andreozzi, Frances Conboy, Giovanni Stea, and Raffaele Zippo. Heterogeneous systems modelling with Adaptive Traffic Profiles and its application to worst-case analysis of a DRAM controller. In 2020 IEEE 44th Annual Computers, Software, and Applications Conference (COMPSAC), pages 79-86. IEEE, 2020. URL: https://doi.org/10.1109/COMPSAC48688.2020.00020.
  5. Matteo Andreozzi, Antonio Frangioni, Laura Galli, Giovanni Stea, and Raffaele Zippo. A MILP approach to DRAM access worst-case analysis. Computers & Operations Research, 143:105774, 2022. URL: https://doi.org/10.1016/j.cor.2022.105774.
  6. Raffaele Zippo and Giovanni Stea. Nancy-Playground binary packages on Nuget, 2026. URL: https://www.nuget.org/packages/Unipi.Nancy.Playground.Cli
  7. Henri Bauer, Jean-Luc Scharbarg, and Christian Fraboul. Worst-case end-to-end delay analysis of an avionics afdx network. In 2010 Design, Automation & Test in Europe Conference & Exhibition (DATE 2010), pages 1220-1224. IEEE, 2010. URL: https://doi.org/10.1109/DATE.2010.5456993.
  8. Luca Bisti, Luciano Lenzini, Enzo Mingozzi, and Giovanni Stea. Deborah: A tool for worst-case analysis of fifo tandems. In International Symposium On Leveraging Applications of Formal Methods, Verification and Validation, pages 152-168. Springer, 2010. URL: https://doi.org/10.1007/978-3-642-16558-0_15.
  9. Steffen Bondorf and Jens B. Schmitt. The DiscoDNC v2 - a comprehensive tool for deterministic network calculus. In Proc. of the International Conference on Performance Evaluation Methodologies and Tools, ValueTools '14, pages 44-49, December 2014. URL: https://dl.acm.org/citation.cfm?id=2747659.
  10. Anne Bouillard. Performance Analysis with Network Calculus and Optimization (PANCO) on GitHub, 2022. URL: https://github.com/anne-bou/panco.
  11. Anne Bouillard, Marc Boyer, and Euriell Le Corronc. Deterministic Network Calculus: From Theory to Practical Implementation. Wiley, Hoboken, NJ, 2018. URL: https://doi.org/10.1002/9781119440284.
  12. Anne Bouillard, Bertrand Cottenceau, Bruno Gaujal, Laurent Hardouin, Sébastien Lagrange, Mehdi Lhommeau, and Éric Thierry. COINC library: a toolbox for the Network Calculus. In VALUETOOLS'09, 2009. Google Scholar
  13. Anne Bouillard and Éric Thierry. An algorithmic toolbox for network calculus. Discrete Event Dynamic Systems, 18(1):3-49, 2008. URL: https://doi.org/10.1007/s10626-007-0028-x.
  14. Marc Boyer, Pierre Roux, and Hugo Daigmorte. Checking validity of the min-plus operations involved in the analysis of a real-time embedded network. In ERTS 2022-11th European Congress Embedded Real Time System, 2022. Google Scholar
  15. Cheng-Shang Chang. Performance guarantees in communication networks. Springer-Verlang, New York, USA, 2000. URL: https://doi.org/10.1007/978-1-4471-0459-9.
  16. Rene L Cruz. A calculus for network delay, part I: Network elements in isolation. IEEE Transactions on information theory, 37(1):114-131, 1991. URL: https://doi.org/10.1109/18.61109.
  17. Rene L Cruz. A calculus for network delay, part II: Network analysis. IEEE Transactions on information theory, 37(1):132-141, 1991. URL: https://doi.org/10.1109/18.61110.
  18. Damien Guidolin-Pina. Evaluation of worst-case performances of systems in Network Calculus. Theses, ISAE - Institut Supérieur de l'Aéronautique et de l'Espace, November 2024. URL: https://hal.science/tel-05023338.
  19. Damien Guidolin Pina and Marc Boyer. The lost equation of Network Calculus. working paper or preprint, March 2024. URL: https://hal.science/hal-04513292.
  20. Anja Hamscher, Vlad-Cristian Constantin, and Jens B Schmitt. Extending network calculus to deal with min-plus service curves in multiple flow scenarios. In 2024 IEEE 30th Real-Time and Embedded Technology and Applications Symposium (RTAS), pages 95-107. IEEE Computer Society, 2024. URL: https://doi.org/10.1109/RTAS61025.2024.00016.
  21. Jean-Yves Le Boudec and Patrick Thiran. Network calculus: a theory of deterministic queuing systems for the internet. Springer Science & Business Media, Berlin, Germany, 2001. URL: https://doi.org/10.1007/3-540-45318-0.
  22. Lisa Maile, Kai-Steffen Hielscher, and Reinhard German. Network calculus results for tsn: An introduction. In 2020 Information Communication Technologies Conference (ICTC), pages 131-140. IEEE, 2020. Google Scholar
  23. Ehsan Mohammadpour, Eleni Stai, and Jean-Yves Le Boudec. Improved network-calculus nodal delay-bounds in time-sensitive networks. IEEE/ACM Transactions on Networking, 31(6):2902-2917, 2023. URL: https://doi.org/10.1109/TNET.2023.3275910.
  24. Terence Parr. The definitive ANTLR 4 reference. The Pragmatic Bookshelf, 2013. Google Scholar
  25. Terence J. Parr and Russell W. Quong. Antlr: A predicated-ll (k) parser generator. Software: Practice and Experience, 25(7):789-810, 1995. URL: https://doi.org/10.1002/SPE.4380250705.
  26. Lucien Rakotomalala, Pierre Roux, and Marc Boyer. Verifying min-plus computations with coq. In Aaron Dutle, Mariano M. Moscato, Laura Titolo, César A. Muñoz, and Ivan Perez, editors, NASA Formal Methods, pages 287-303, Cham, 2021. Springer International Publishing. URL: https://doi.org/10.1007/978-3-030-76384-8_18.
  27. RealTime-at-Work. RealTime-at-Work online Min-Plus interpreter for Network Calculus. URL: https://www.realtimeatwork.com/minplus-playground.
  28. RealTime-at-Work. RTaW-Pegase (min,+) library. URL: https://www.realtimeatwork.com/rtaw-pegase-libraries/.
  29. Falk Rehm, Jörg Seitter, Jan-Peter Larsson, Selma Saidi, Giovanni Stea, Raffaele Zippo, Dirk Ziegenbein, Matteo Andreozzi, and Arne Hamann. The Road towards Predictable Automotive High-Performance Platforms. In 2021 Design, Automation & Test in Europe Conference & Exhibition (DATE), pages 1915-1924. IEEE, 2021. URL: https://doi.org/10.23919/DATE51398.2021.9473996.
  30. Antonio Andrea Salvalaggio, Raffaele Zippo, and Giovanni Stea. Improving (min,+) convolutions by heuristic operation reordering. JRWRTC 2024, page 1, 2024. Google Scholar
  31. Henrik Schiøler, Hans-Peter Schwefel, and Martin B. Hansen. Cync: a matlab/simulink toolbox for network calculus. In Peter W. Glynn, editor, Proceedings of the 2nd International Conference on Performance Evaluation Methodolgies and Tools, VALUETOOLS 2007, Nantes, France, October 22-27, 2007, ACM International Conference Proceeding Series, page 60. ICST/ACM, 2007. URL: https://doi.org/10.4108/VALUETOOLS.2007.1804.
  32. Seyed Mohammadhossein Tabatabaee, Marc Boyer, Jean-Yves Boudec Le, and Jörn Migge. Efficient and accurate handling of periodic flows in time-sensitive networks. In 2023 IEEE 29th Real-Time and Embedded Technology and Applications Symposium (RTAS), pages 303-315, 2023. URL: https://doi.org/10.1109/RTAS58335.2023.00031.
  33. Seyed Mohammadhossein Tabatabaee and Jean-Yves Le Boudec. Deficit round-robin: A second network calculus analysis. In 27th IEEE Real-Time and Embedded Technology and Applications Symposium, RTAS 2021, Nashville, TN, USA, May 18-21, 2021, pages 171-183. IEEE, 2021. URL: https://doi.org/10.1109/RTAS52030.2021.00022.
  34. Andrea Trasacco, Raffaele Zippo, and Giovanni Stea. Nancy.Expressions: Towards a Computer Algebra System for Deterministic Network Calculus. In EAI VALUETOOLS 2024, 2024. URL: https://doi.org/10.1007/978-3-032-06818-7_23.
  35. Ernesto Wandeler and Lothar Thiele. Real-Time Calculus (RTC) Toolbox, 2006. URL: http://www.mpa.ethz.ch/Rtctoolbox.
  36. Jiayi Zhang, Lihao Chen, Tongtong Wang, and Xinyuan Wang. Analysis of tsn for industrial automation based on network calculus. In 2019 24th IEEE International Conference on Emerging Technologies and Factory Automation (ETFA), pages 240-247. IEEE, 2019. URL: https://doi.org/10.1109/ETFA.2019.8869053.
  37. Luxi Zhao, Paul Pop, Zhong Zheng, Hugo Daigmorte, and Marc Boyer. Latency analysis of multiple classes of AVB traffic in TSN with standard credit behavior using network calculus. IEEE Trans. Ind. Electron., 68(10):10291-10302, 2021. URL: https://doi.org/10.1109/TIE.2020.3021638.
  38. Boyang Zhou, Isaac Howenstine, Siraphob Limprapaipong, and Liang Cheng. A survey on network calculus tools for network infrastructure in real-time systems. IEEE Access, 8:223588-223605, 2020. URL: https://doi.org/10.1109/ACCESS.2020.3043600.
  39. Raffaele Zippo, Paul Nikolaus, and Giovanni Stea. Extending the Network Calculus Algorithmic Toolbox for Ultimately Pseudo-Periodic Functions: Pseudo-Inverse and Composition. Discrete Event Dynamic Systems, 2023. URL: https://doi.org/10.1007/s10626-022-00373-5.
  40. Raffaele Zippo, Paul Nikolaus, and Giovanni Stea. Isospeed: Improving (min,+) convolution by exploiting (min,+)/(max,+) isomorphism. In 35th Euromicro Conference on Real-Time Systems (ECRTS'23), pages 24-pp. IEEE, 2023. URL: https://doi.org/10.4230/LIPIcs.ECRTS.2023.
  41. Raffaele Zippo, Paul Nikolaus, and Giovanni Stea. Exploiting (min,+)/(max,+) Isomorphism to Speed up Convolutions. ACM Transactions on Mathematical Software, 2026. URL: https://doi.org/10.1145/3793250.
  42. Raffaele Zippo and Giovanni Stea. rzippo/nancy-playground. Software, (visited on 2026-05-28). URL: https://github.com/rzippo/nancy-playground
    Software Heritage Logo archived version
    full metadata available at: https://doi.org/10.4230/artifacts.25795
  43. Raffaele Zippo and Giovanni Stea. Nancy: An efficient parallel Network Calculus library. SoftwareX, 19:101178, 2022. URL: https://doi.org/10.1016/j.softx.2022.101178.
  44. Raffaele Zippo and Giovanni Stea. Nancy source repository archived on Software Heritage, 2022. URL: https://archive.softwareheritage.org/swh:1:dir:411ec10f456b07eb84f8f0c404d2c6f10ce5b7a7.URL: https://archive.softwareheritage.org/swh:1:dir:411ec10f456b07eb84f8f0c404d2c6f10ce5b7a7 .
    Software Heritage Logo archived version
  45. Raffaele Zippo and Giovanni Stea. Nancy source repository on GitHub, 2022. URL: https://github.com/rzippo/nancy.
  46. Raffaele Zippo and Giovanni Stea. Computationally efficient worst-case analysis of flow-controlled networks with Network Calculus. IEEE Transactions on Information Theory, 2023. URL: https://doi.org/10.1109/TIT.2023.3244276.
