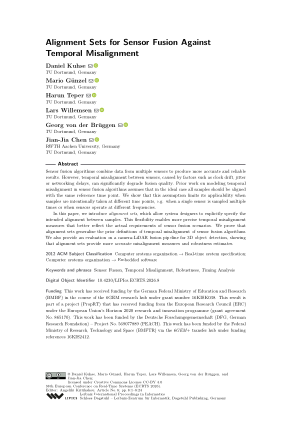

Alignment Sets for Sensor Fusion Against Temporal Misalignment

Authors Daniel Kuhse , Mario Günzel , Harun Teper , Lars Willemsen , Georg von der Brüggen , Jian-Jia Chen

PDF

File

Thumbnail PDF
PDF
LIPIcs.ECRTS.2026.8.pdf
  • Filesize: 2.34 MB
  • 24 pages

Document Identifiers

Subject Classification

ACM Subject Classification
  • Computer systems organization → Real-time system specification
  • Computer systems organization → Embedded software
Keywords
  • Sensor Fusion
  • Temporal Misalignment
  • Robustness
  • Timing Analysis

Metrics

Abstract

Sensor fusion algorithms combine data from multiple sensors to produce more accurate and reliable results. However, temporal misalignment between sensors, caused by factors such as clock drift, jitter or networking delays, can significantly degrade fusion quality. Prior work on modeling temporal misalignment in sensor fusion algorithms assumes that in the ideal case all samples should be aligned with the same reference time point. We show that this assumption limits its applicability when samples are intentionally taken at different time points, e.g., when a single sensor is sampled multiple times or when sensors operate at different frequencies.
In this paper, we introduce alignment sets, which allow system designers to explicitly specify the intended alignment between samples. This flexibility enables more precise temporal misalignment measures that better reflect the actual requirements of sensor fusion scenarios. We prove that alignment sets generalize the prior definitions of temporal misalignment of sensor fusion algorithms. We also provide an evaluation on a camera-LiDAR fusion pipeline for 3D object detection, showing that alignment sets provide more accurate misalignment measures and robustness estimates.

Cite As Get BibTex

Daniel Kuhse, Mario Günzel, Harun Teper, Lars Willemsen, Georg von der Brüggen, and Jian-Jia Chen. Alignment Sets for Sensor Fusion Against Temporal Misalignment. In 38th European Conference on Real-Time Systems (ECRTS 2026). Leibniz International Proceedings in Informatics (LIPIcs), Volume 375, pp. 8:1-8:24, Schloss Dagstuhl – Leibniz-Zentrum für Informatik (2026) https://doi.org/10.4230/LIPIcs.ECRTS.2026.8

Author Details

Daniel Kuhse
  • TU Dortmund, Germany
Mario Günzel
  • TU Dortmund, Germany
Harun Teper
  • TU Dortmund, Germany
Lars Willemsen
  • TU Dortmund, Germany
Georg von der Brüggen
  • TU Dortmund, Germany
Jian-Jia Chen
  • RWTH Aachen University, Germany
  • TU Dortmund, Germany

Funding

This work has received funding by the German Federal Ministry of Education and Research (BMBF) in the course of the 6GEM research hub under grant number 16KISK038. This result is part of a project (PropRT) that has received funding from the European Research Council (ERC) under the European Union’s Horizon 2020 research and innovation programme (grant agreement No. 865170). This work has been funded by the Deutsche Forschungsgemeinschaft (DFG, German Research Foundation) - Project No. 569077889 (PEACH). This work has been funded by the Federal Ministry of Research, Technology and Space (BMFTR) via the 6GEM+ transfer hub under funding references 16KIS2412.
