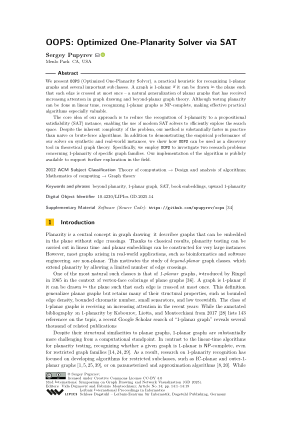

OOPS: Optimized One-Planarity Solver via SAT

Author Sergey Pupyrev

PDF

File

Thumbnail PDF
PDF
LIPIcs.GD.2025.14.pdf
  • Filesize: 1.01 MB
  • 19 pages

Document Identifiers

Subject Classification

ACM Subject Classification
  • Theory of computation → Design and analysis of algorithms
  • Mathematics of computing → Graph theory
Keywords
  • beyond planarity
  • 1-planar graph
  • SAT
  • book embeddings
  • upward 1-planarity

Metrics

  • Access Statistics
  • Total Accesses (updated on a weekly basis)
    0
    PDF Downloads
    0
    Metadata Views

Abstract

We present OOPS (Optimized One-Planarity Solver), a practical heuristic for recognizing 1-planar graphs and several important subclasses. A graph is 1-planar if it can be drawn in the plane such that each edge is crossed at most once - a natural generalization of planar graphs that has received increasing attention in graph drawing and beyond-planar graph theory. Although testing planarity can be done in linear time, recognizing 1-planar graphs is NP-complete, making effective practical algorithms especially valuable.
The core idea of our approach is to reduce the recognition of 1-planarity to a propositional satisfiability (SAT) instance, enabling the use of modern SAT solvers to efficiently explore the search space. Despite the inherent complexity of the problem, our method is substantially faster in practice than naïve or brute-force algorithms. In addition to demonstrating the empirical performance of our solver on synthetic and real-world instances, we show how OOPS can be used as a discovery tool in theoretical graph theory. Specifically, we employ OOPS to investigate two research problems concerning 1-planarity of specific graph families. Our implementation of the algorithm is publicly available to support further exploration in the field.

Cite As Get BibTex

Sergey Pupyrev. OOPS: Optimized One-Planarity Solver via SAT. In 33rd International Symposium on Graph Drawing and Network Visualization (GD 2025). Leibniz International Proceedings in Informatics (LIPIcs), Volume 357, pp. 14:1-14:19, Schloss Dagstuhl – Leibniz-Zentrum für Informatik (2025) https://doi.org/10.4230/LIPIcs.GD.2025.14
