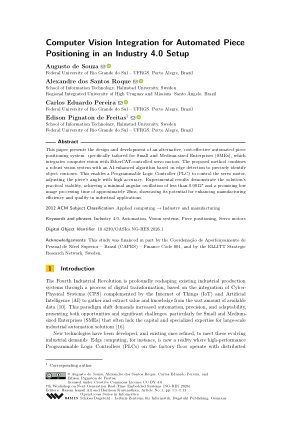

Computer Vision Integration for Automated Piece Positioning in an Industry 4.0 Setup

Authors Augusto de Souza , Alexandre dos Santos Roque , Carlos Eduardo Pereira , Edison Pignaton de Freitas

PDF HTML 5

Files

Thumbnail PDF
PDF
OASIcs.NG-RES.2026.1.pdf
  • Filesize: 1.82 MB
  • 11 pages
HTML5 Logo HTML (experimental)
OASIcs.NG-RES.2026.1.html

Document Identifiers

Subject Classification

ACM Subject Classification
  • Applied computing → Industry and manufacturing
Keywords
  • Industry 4.0
  • Automation
  • Vision systems
  • Piece positioning
  • Servo motors

Metrics

Abstract

This paper presents the design and development of an alternative, cost-effective automated piece positioning system, specifically tailored for Small and Medium-sized Enterprises (SMEs), which integrates computer vision with EtherCAT-controlled servo motors. The proposed method combines a robust vision system with an AI-enhanced algorithm based on edge detection to precisely identify object contours. This enables a Programmable Logic Controller (PLC) to control the servo motor, adjusting the piece’s angle with high accuracy. Experimental results demonstrate the solution’s practical viability, achieving a minimal angular oscillation of less than 0.0012° and a promising low image processing time of approximately 20ms, showcasing its potential for enhancing manufacturing efficiency and quality in industrial applications.

Cite As Get BibTex

Augusto de Souza, Alexandre dos Santos Roque, Carlos Eduardo Pereira, and Edison Pignaton de Freitas. Computer Vision Integration for Automated Piece Positioning in an Industry 4.0 Setup. In 7th Workshop on Next Generation Real-Time Embedded Systems (NG-RES 2026). Open Access Series in Informatics (OASIcs), Volume 140, pp. 1:1-1:11, Schloss Dagstuhl – Leibniz-Zentrum für Informatik (2026) https://doi.org/10.4230/OASIcs.NG-RES.2026.1

Author Details

Augusto de Souza
  • Federal University of Rio Grande do Sul - UFRGS, Porto Alegre, Brazil
Alexandre dos Santos Roque
  • School of Information Technology, Halmstad University, Sweden
  • Regional Integrated University of High Uruguay and Missions, Santo Ângelo, Brazil
Carlos Eduardo Pereira
  • Federal University of Rio Grande do Sul - UFRGS, Porto Alegre, Brazil
Edison Pignaton de Freitas
  • School of Information Technology, Halmstad University, Sweden
  • Federal University of Rio Grande do Sul - UFRGS, Porto Alegre, Brazil

Acknowledgements

This study was financed in part by the Coordenação de Aperfeiçoamento de Pessoal de Nível Superior - Brasil (CAPES) - Finance Code 001, and by the ELLITT Strategic Research Network, Sweden.
